ci5000 Series Printer Technical Service Manual

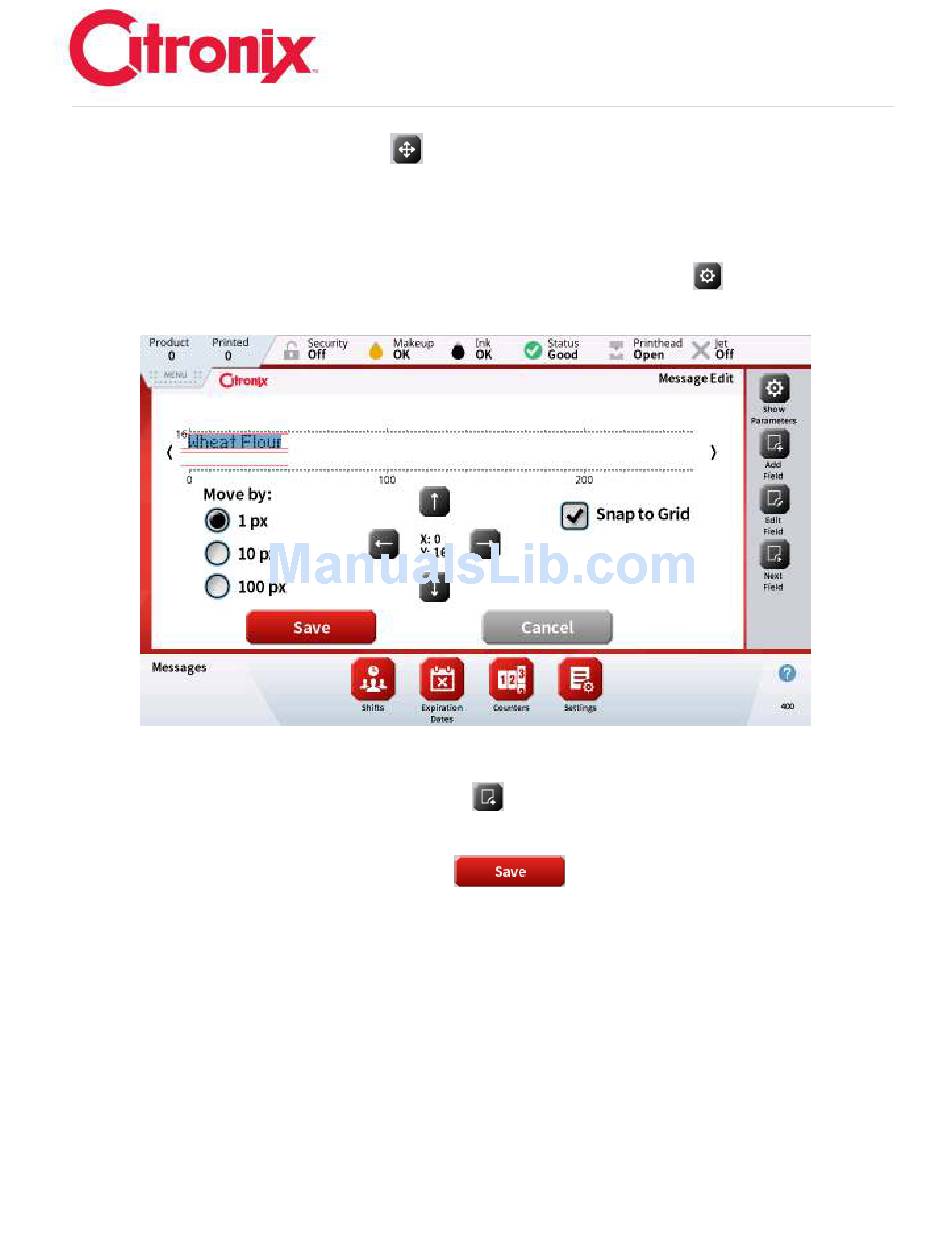

To move the field, press the [Move Field] button and use the arrows to move the field. Each field
can be moved by pixel (1, 10, or 100 pixel) or by checking the [Snap to Grid] option, the field will move
(up or down) to the next grid (red lines shown below) depending on the arrow selected (up or down).
Pressing and holding a field that needs to be moved will cause the Highlight to become a darker blue
color, this will allow the user to "drag & drop" the field in the location you want it to be. Then you can use
the arrows to finely adjust the exact position. When done, press the [Move Field] button again to go
back.
If additional fields are needed, press the [Add Field] button to add a new field and follow the
previous 3 steps.
When the message is complete, press the [Save] button to save, rename or confirm the
name, and then exit the Message Edit screen.
The new message will now be displayed in the Message List.
Version 0.1 3-34
