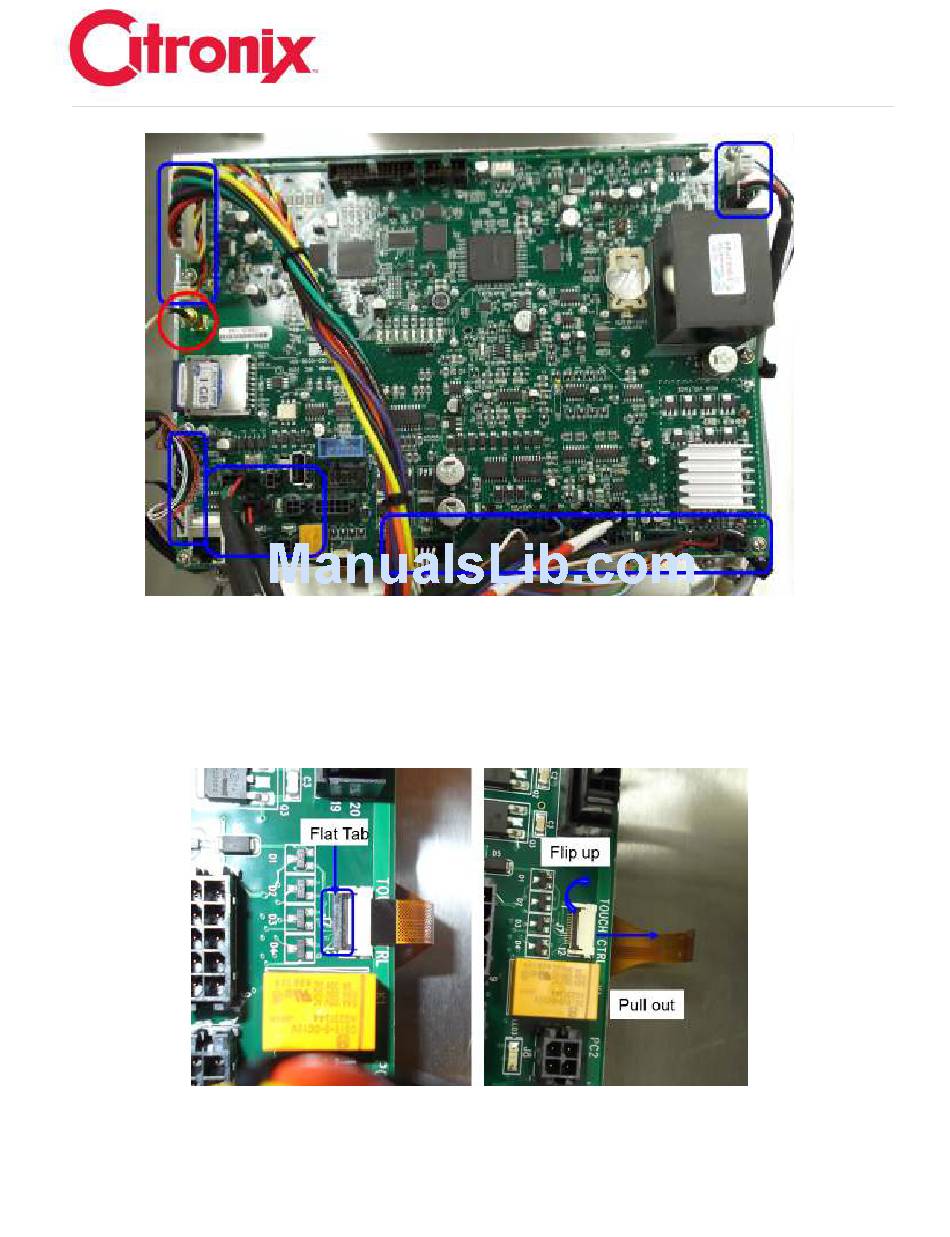

4. Disconnect the RFID Antenna (circled in red above) by turning the gold connector
counterclockwise until the coax connector is free.
5. Carefully remove the Touch Screen's flat ribbon cable (shown below) by moving the flat
black tab from the up position to the down. Then carefully pull the ribbon cable from the
connector.
6. Now with everything unplugged from the CPU board, remove the 8 Phillips head screws
from the perimeter off the board and the board will be free from the tablet door.
