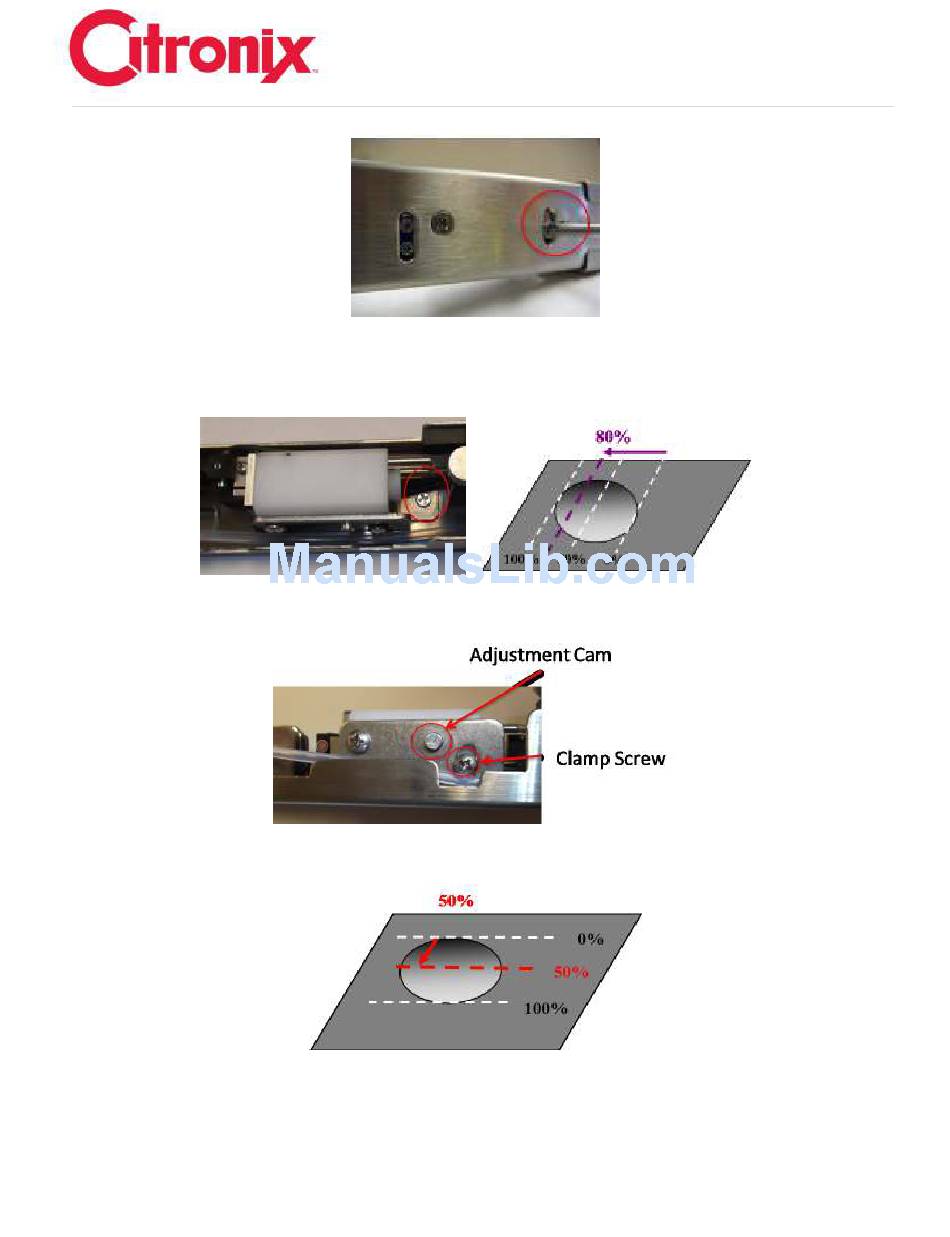

o Using the Adjustment (shown in Fig 2) adjust the horizontal alignment to 80% to the left of
the gutter hole (shown in Fig 3). When the adjustment is complete tighten the securing
screw
o Next loosen the top securing screw shown in Fig 4 found on the right side of the Drop
Generator Mounting bracket.
o Using the Adjustment cam (shown in Fig 4) adjust the vertical alignment to center of the
gutter hole (shown in Fig 5). When the adjustment is complete tighten the securing screw
o The jet should now be in the proper position in the gutter block as seen below
Version 0.1
Fig 1
Fig 2
Fig 4
Fig 5
ci5000 Series Printer Technical Service Manual
Fig 3
9-4
