printer will shut down automatically and this error/fault will be displayed. The sensor is part of the Drop
Generator and is non-repairable.
Corrective Action:
1. Ensure the ambient Temperature is not above 60°C. if so, remove the printer to a cooler area.
2. Press the [Menu]
the temperature is above 60° C.

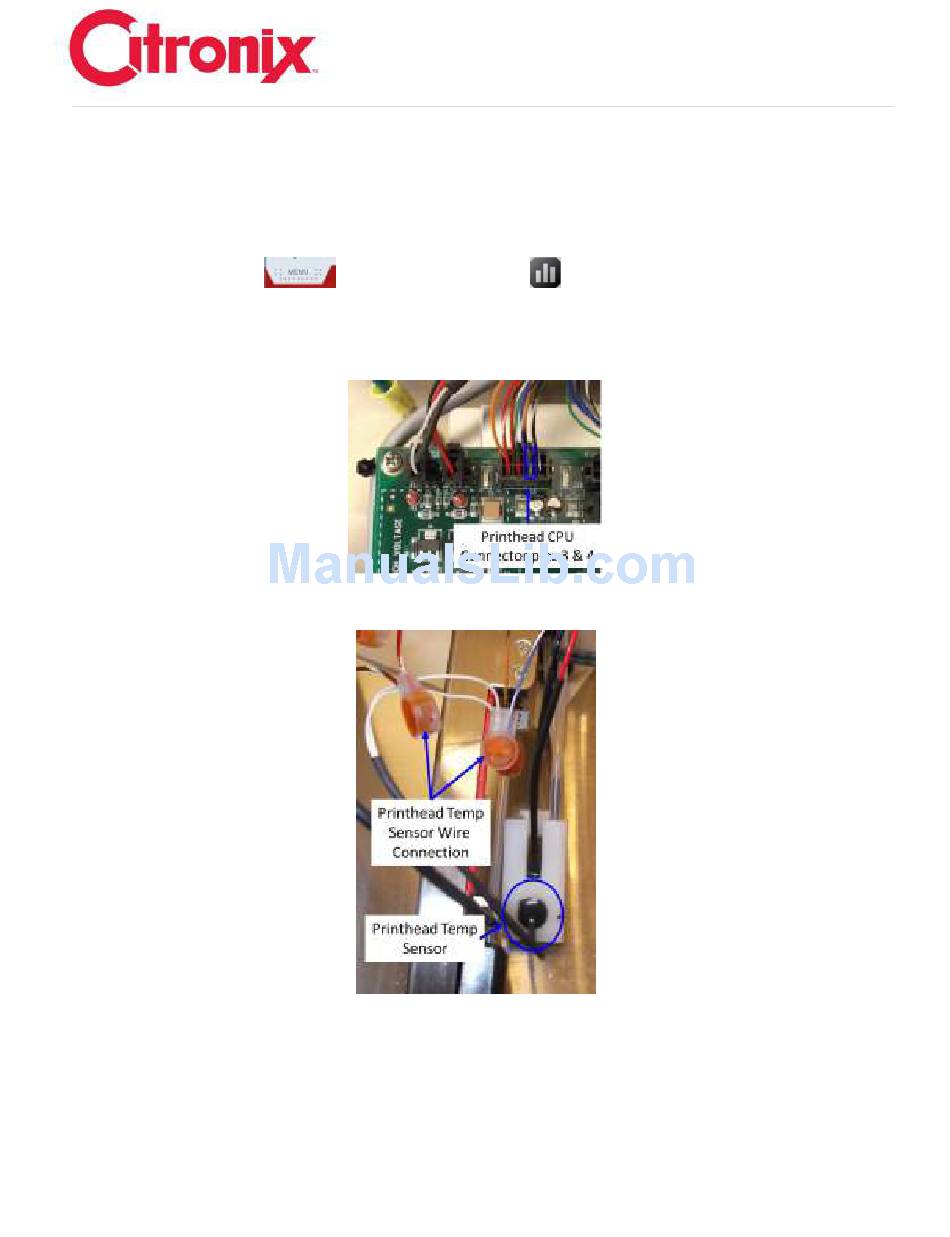

3. Inspect the wires on the printhead connector J3 pins 3 & 4 on the CPU board. Ensure they are
properly connected and there is no break in the wires.
4. Check the sensor connection in the top compartment of the printhead for a good connection.
5. Disconnect the wires at the printhead and unplug the J3 connector and use a Multimeter, check
the wires for continuity (no breaks).
6. Replace the Drop Generator Assembly.
Printhead Temperature Fault – SENSOR SHORTED
Definition:
Version 0.1
ci5000 Series Printer Technical Service Manual
button and then [Status] to view the Nozzle Temperature. Ensure
