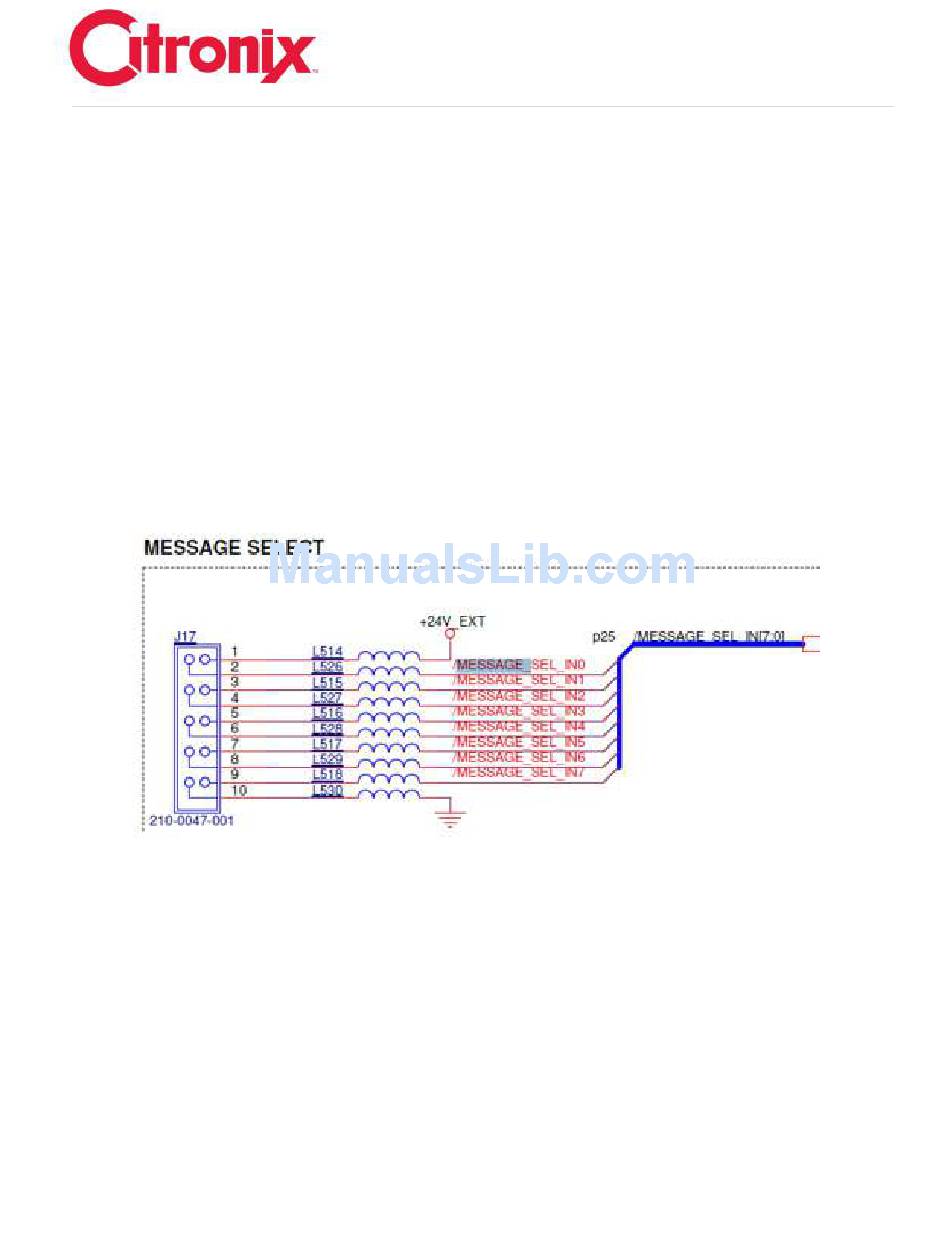

Pin 3 is bit 1
•
Pin 4 is bit 2
•
Pin 5 is bit 3
•
Pin 6 is bit 4
•
Pin 7 is bit 5
•
Pin 8 is bit 6
•
Pin 9 is bit 7 - the most significant bit
•
Pin 10 is ground
The eight input lines are normally high and read as a "1" bit. The external connection must ground the
pins to change them to a "0."
If nothing is connected, the value is read as 255.
If only 1 line (Pin 2, bit 0) is to be used –
•
and the other 7 lines are unconnected, the input value will be read as 255.
•
and the other 7 lines are grounded, the input value is read as either 0.

Date Properties

Setup screen date properties such as Week start date, Hijri date and Atlas code. Also used to set up
encoded dates and times and to select date and time delimiters (separators).
