Citronix ci5200 Technical & Service Manual page 200

ci5000 Series Printer Technical Service Manual

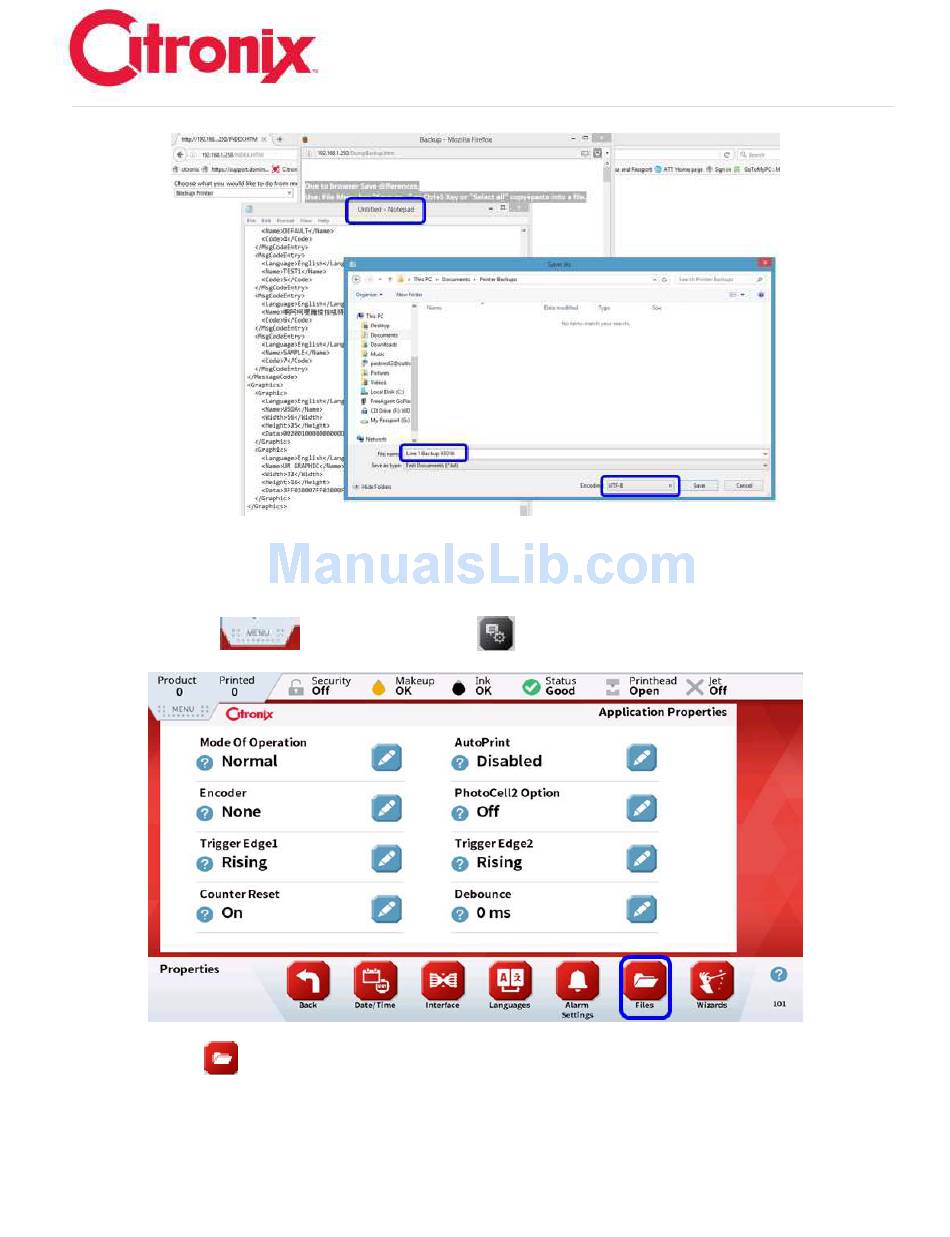

Backup with USB or SD:
Ensure the Power is off, then Insert the SD or USB into their respective ports, and then turn the power on.
On the [Menu Tab] select the [Properties] button.
Select the [Files] icon in the Navigation Tool Bar. Press to highlight the device you want to use to
save the Backup file. The example below shows the SD card is being used. The USB will show "Not
Available" if one is not inserted into the USB Port on the CPU board. This indicates which device is being
accessed.
Version 0.1 6-56
