ci5000 Series Printer Technical Service Manual

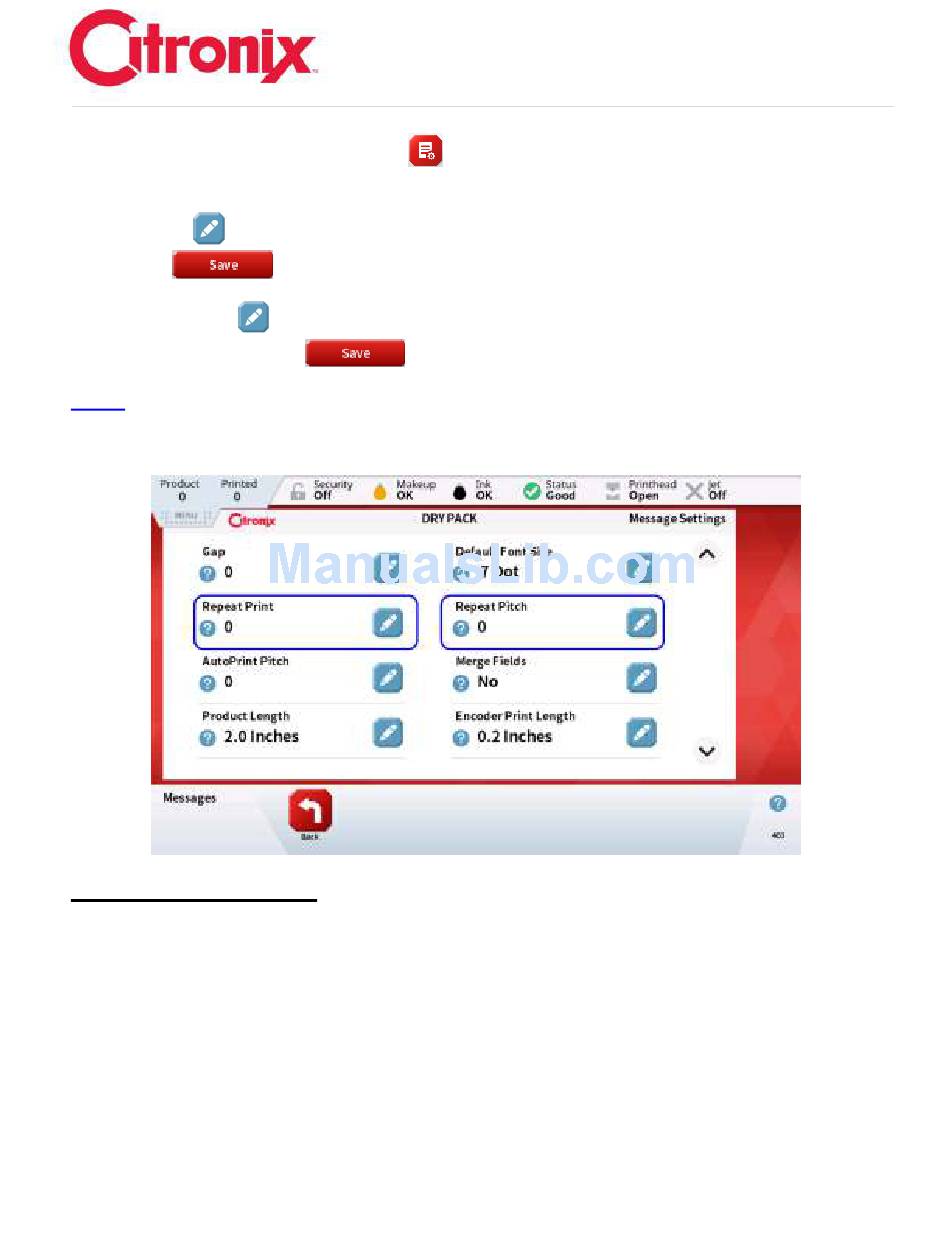

While in the Edit menu, press the [Settings] button in the Navigation Tool Bar. Using the down arrow
button, scroll down to screen 2.
Using the [Edit] button, enter the number of Repeat Prints needed using the numbers keypad, then
press [Save] . (Remember total number of prints will be +1 of the number entered).
Then Press the [Edit] Button to set the Repeat Pitch using the numbers keypad enter the number for
the spacing then press [Save] .
NOTE: The Repeat Pitch is the distance from beginning of one message to the beginning of the next. If
the Repeat Pitch is too small, the printer will lose Phase and fault out. There must be a least 50 Raster
space between prints.

Add Ink and Makeup

To ensure the quality and proper fluid type, each authorized Citronix ink and Make-up bottle will have an
ciSafeFill label attached to the back. This is to provide extra protection to ensure proper operation of your
Citronix printer.
If the Ink Low, Makeup Low warning message appears on the Display (shown below), the following steps
need to be taken:
Version 0.1 3-67
