Printer Status and Controls:

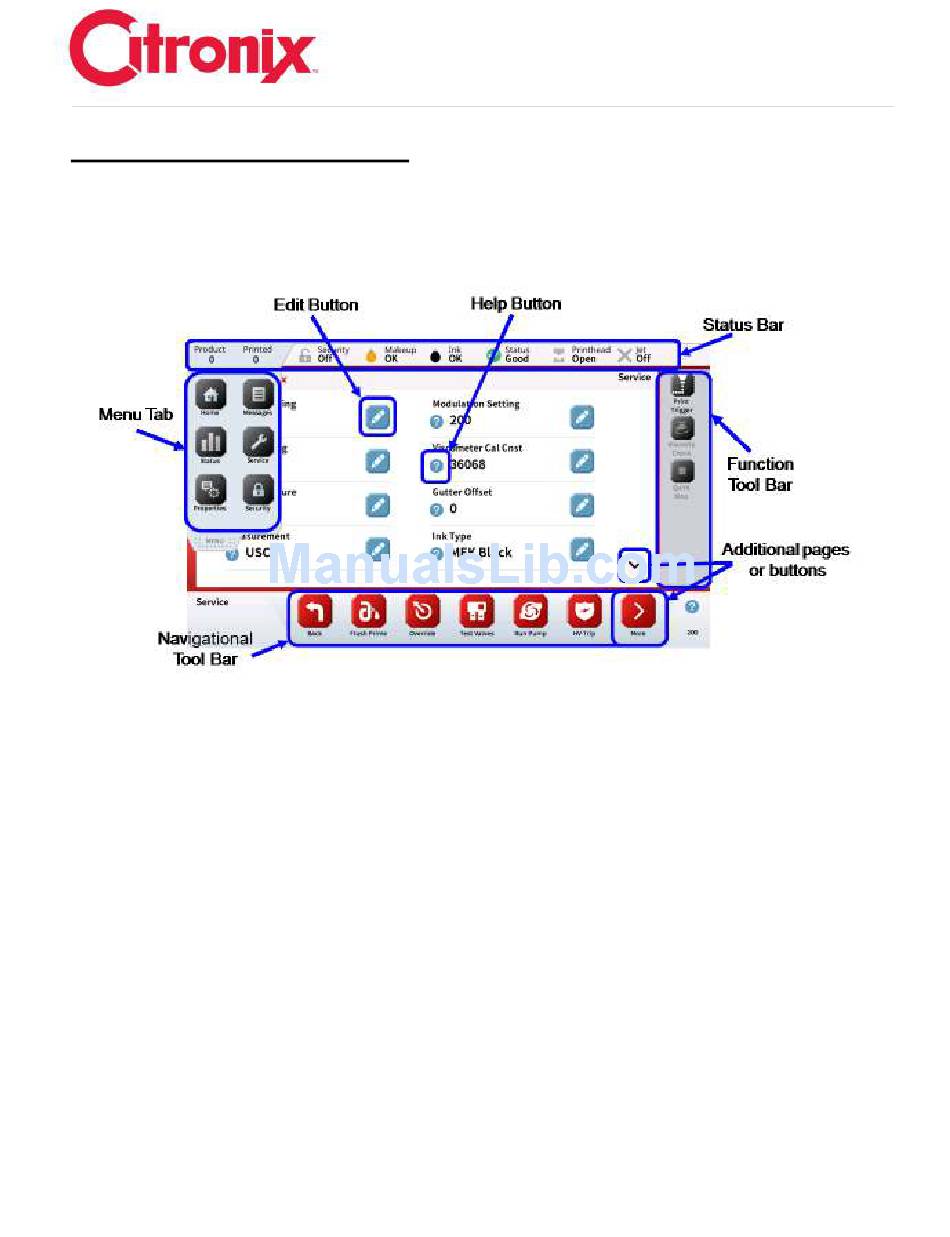

As you navigate through the GUI a number of different toolbars and control options become available.
These consist of the status bar, menu tab, navigation toolbar, function toolbar, edit button, and help
button which are described below and are used to view, change or edit depending on the task being
undertaken. There can also be additional pages or buttons to provide additional change/edit options and
these are shown by selecting the buttons shown below.
(1)

Status Bar

Important information on the health of the printer is provided in summary status bar. It contains
information on the status of the items listed below. Additional information can be found in Section
4.
1. Print & Product Quantities
2. Security
3. Fluid Levels
4. System Health
5. Printhead
6. Ink System
(2)

Menus Tab

The ci5000 Series Printer has 6 icons that give the user quick access to each of the 6 task
focused menu screens. The menu tab does not change and is available from the majority of the
printer screens. Each icon directs the user to a task oriented root menu for the printer. These are
described in more details below and consist of:
1. Home
Version 0.1
ci5000 Series Printer Technical Service Manual
2-3
