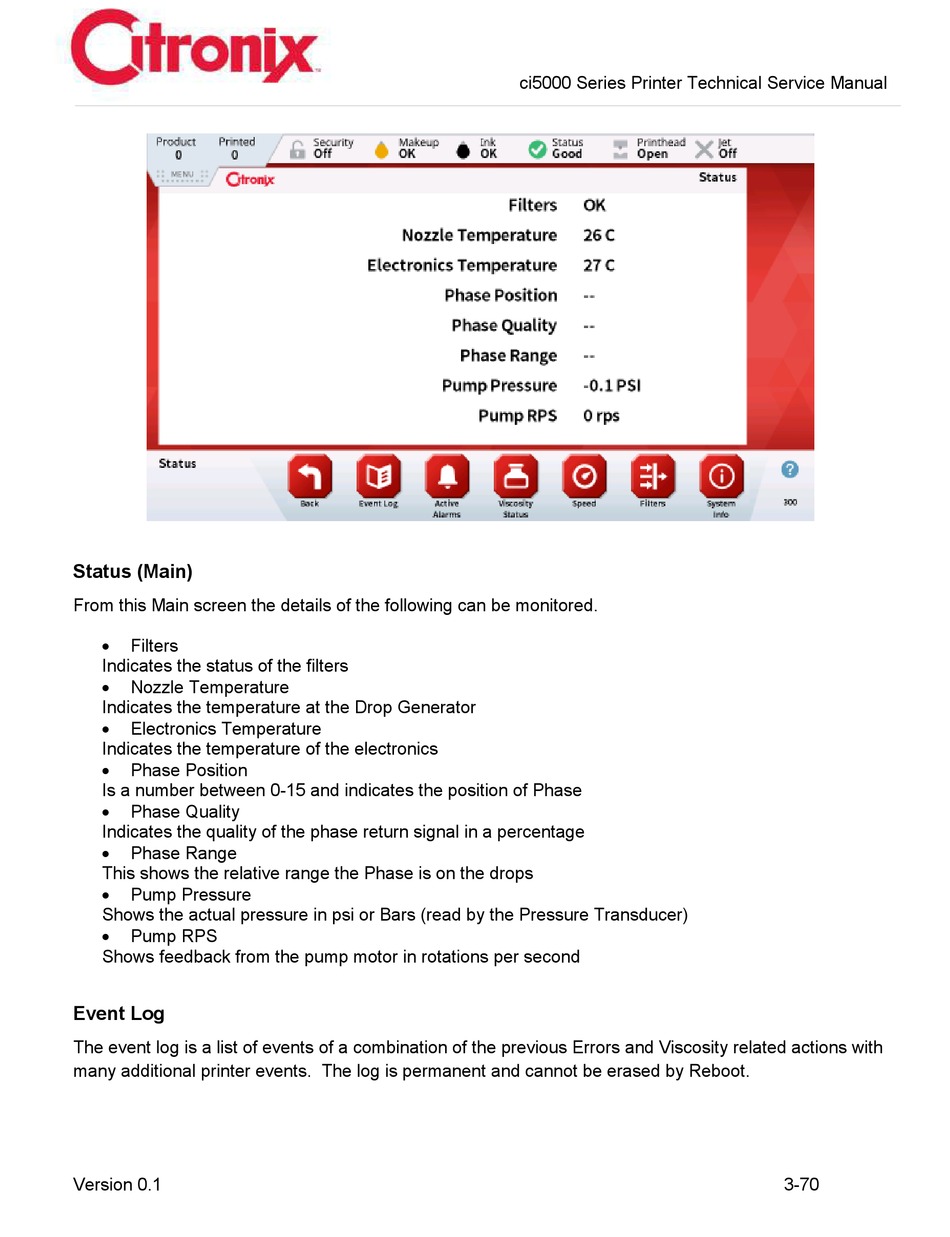

Status (Main)

From this Main screen the details of the following can be monitored.

Filters

Indicates the status of the filters
Nozzle Temperature

Indicates the temperature at the Drop Generator
Electronics Temperature

Indicates the temperature of the electronics
Phase Position

Is a number between 0-15 and indicates the position of Phase
Phase Quality

Indicates the quality of the phase return signal in a percentage
Phase Range

This shows the relative range the Phase is on the drops
Pump Pressure

Shows the actual pressure in psi or Bars (read by the Pressure Transducer)
Pump RPS
Shows feedback from the pump motor in rotations per second

Event Log

The event log is a list of events of a combination of the previous Errors and Viscosity related actions with
many additional printer events. The log is permanent and cannot be erased by Reboot.
