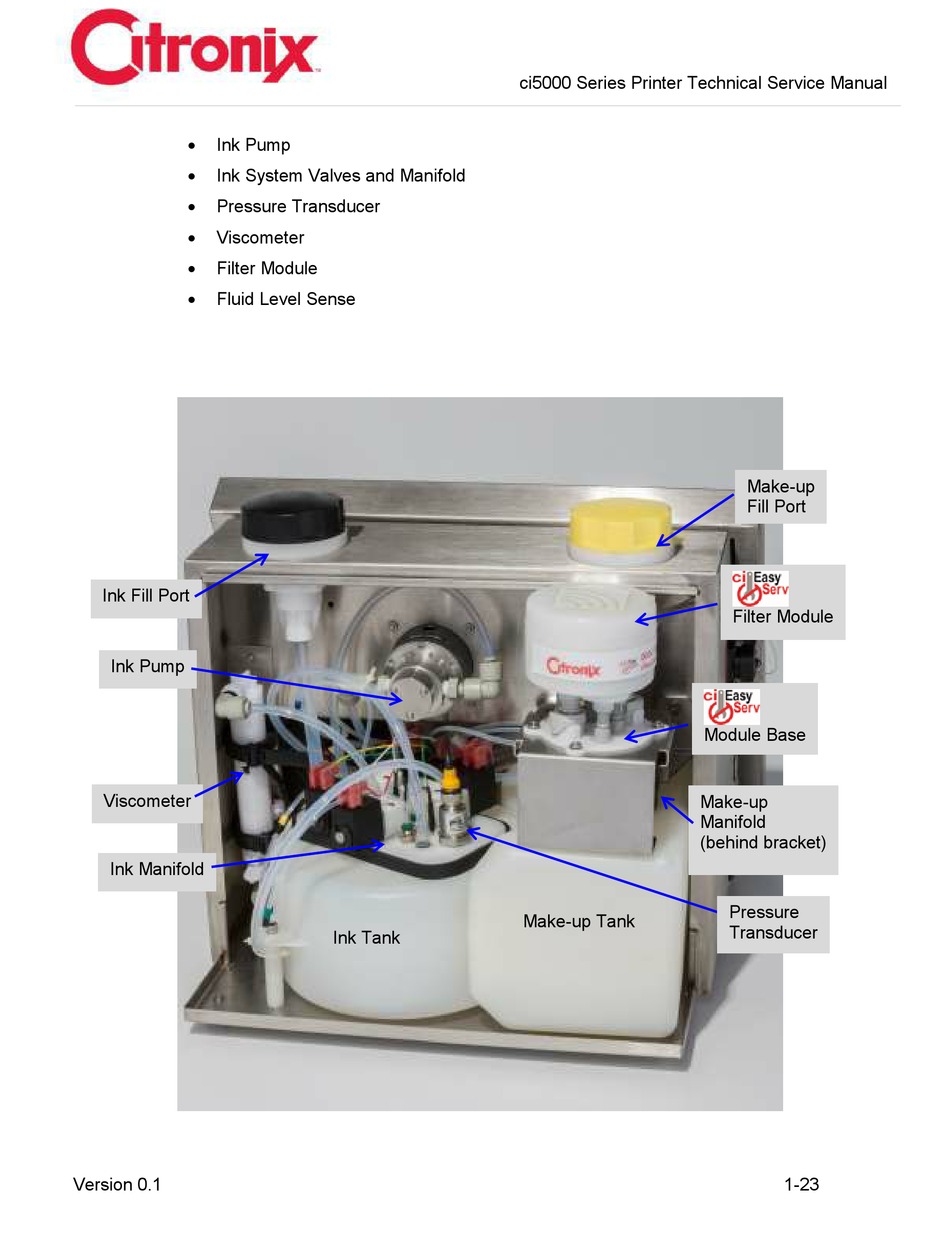

Ink Pump
Ink System Valves and Manifold
Pressure Transducer
Viscometer
Filter Module
Fluid Level Sense
Ink Fill Port
Ink Pump
Viscometer
Ink Manifold
Version 0.1
Ink Tank
ci5000 Series Printer Technical Service Manual
Make-up Tank
Make-up
Fill Port
Filter Module
Module Base
Make-up
Manifold
(behind bracket)
Pressure
Transducer
1-23
