Navigation Tool Bar

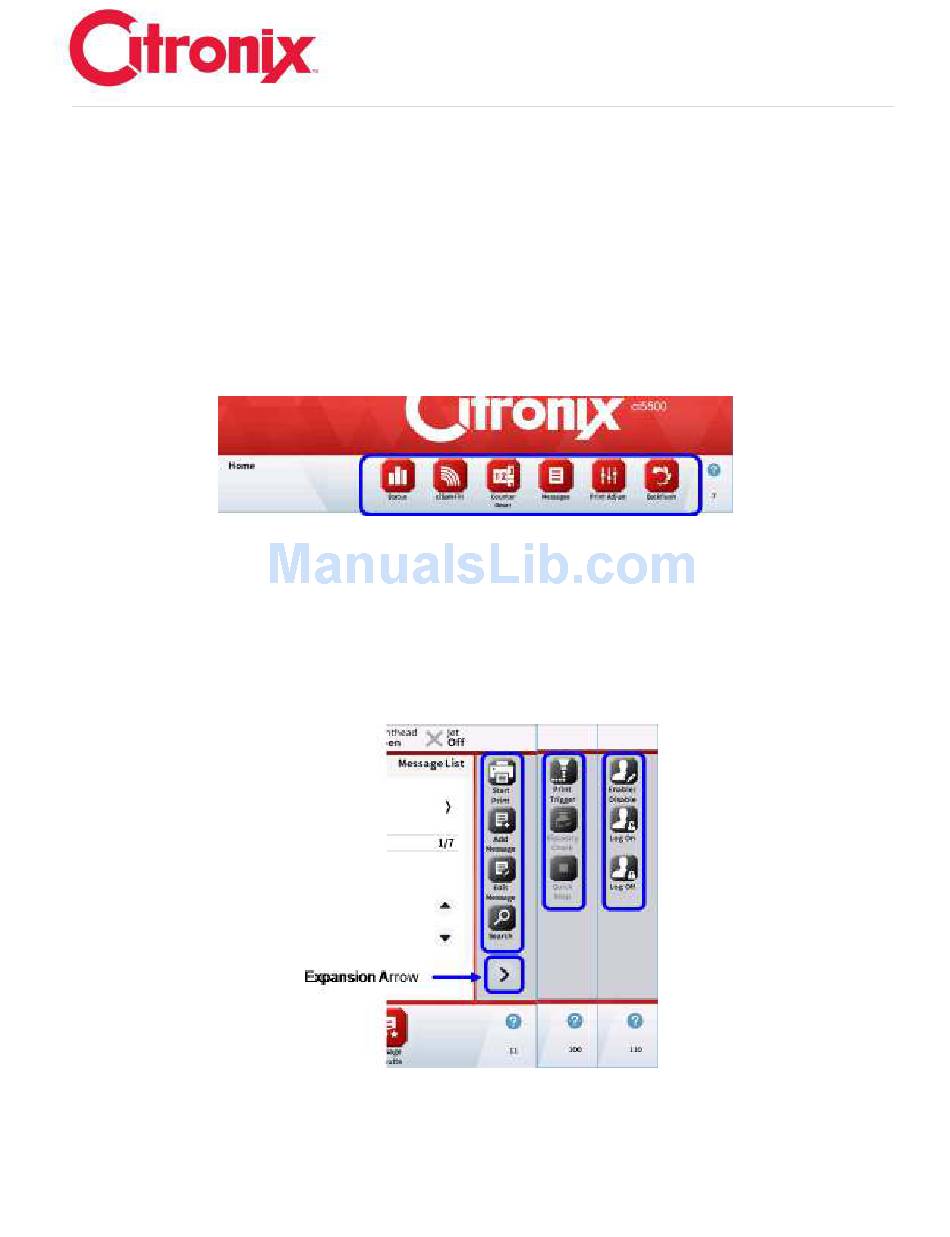

Each icon on the Navigation Toolbar takes the operator to a new screen. Screens are grouped
based on their common functionality and organized like a directory tree. Pressing an icon takes
one further down the directory tree and pressing the back button brings one up the directory tree.
(4)

Function Toolbar

The Function Toolbar is positioned on the right side of the screen only when additional
functionality is needed for the screen. Function Toolbars are used to edit or adjust specific
settings for each specific Menu screen. They will change depending on the Menu being viewed.
Some will expand by pressing the Arrow button shown below. This reveals additional Function
buttons.
