Review the position on the package/product. If additional adjustments are needed, repeat the above edit
process.

Width

Width defines the amount of time/space between each vertical raster/stroke. An increase in width will
increase the length of a message. Press the [Edit]
Using the numbers keypad, enter the Width setting (value between 0 and 99999) then press [Save]
.
NOTE: Width also effect print speed. Example: the higher the number the wider the
message length and the faster the print speed.

Gap

Gap defines the amount of time/space between printed characters. Press the [Edit]
right side of the Gap number. Select the desired spacing from the list then press [Select]
NOTE: Gap also effect print speed. Example: the higher the number the slower the
print speed.

Orientation

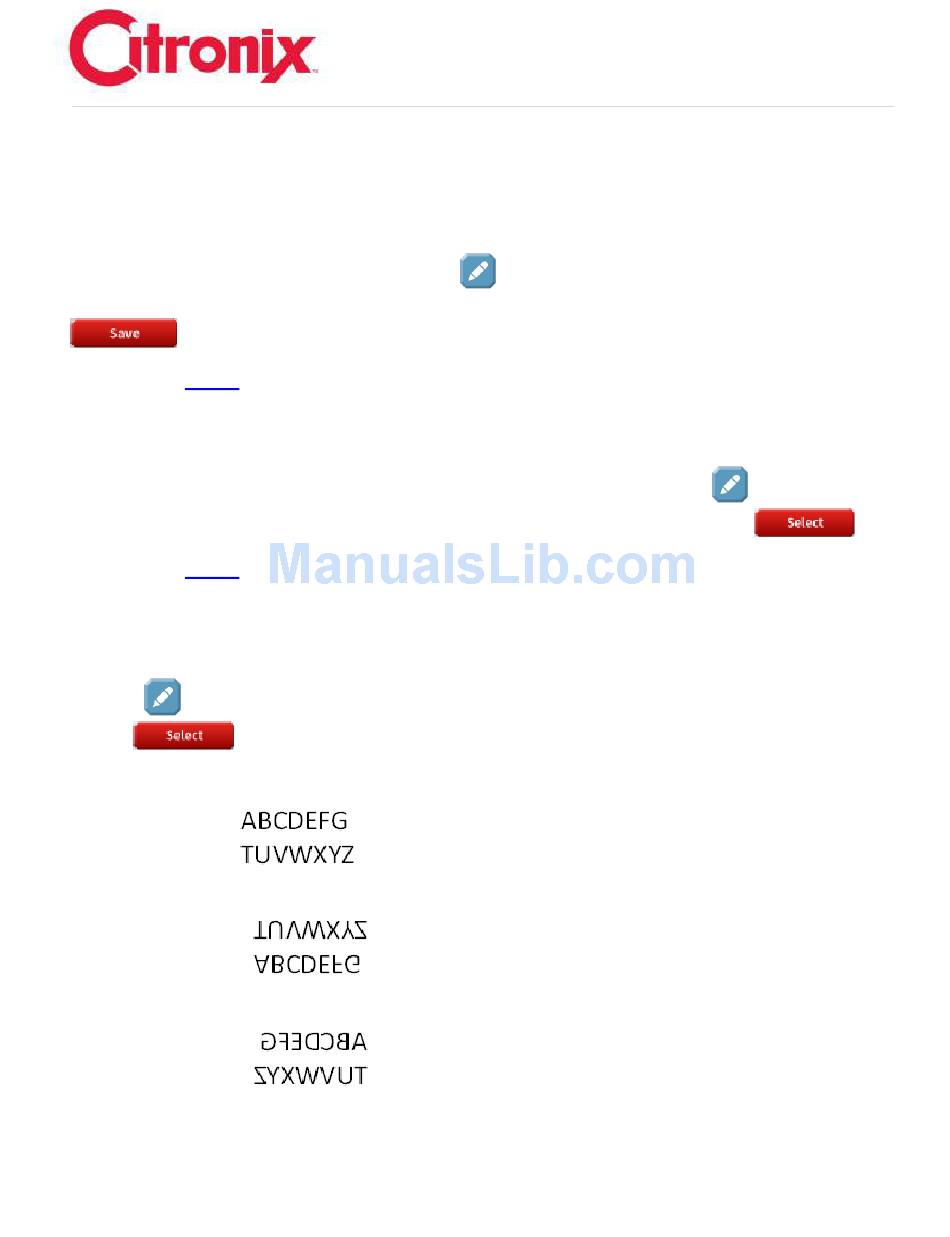

Orientation is the positioning/direction in which the message is printed. To change the Orientation, press
the [Edit] button to the right side of the current orientation setting. Select from the list and press
[Select] . There are four (4) Orientations: Upside Up, Upside Down, Mirror Up and Mirror
Down. Below are examples.
1. Upside Up
2. Upside Down
3. Mirror Up
Version 0.1
ci5000 Series Printer Technical Service Manual
button to the right side of the Width number.
button to the
.
3-65
