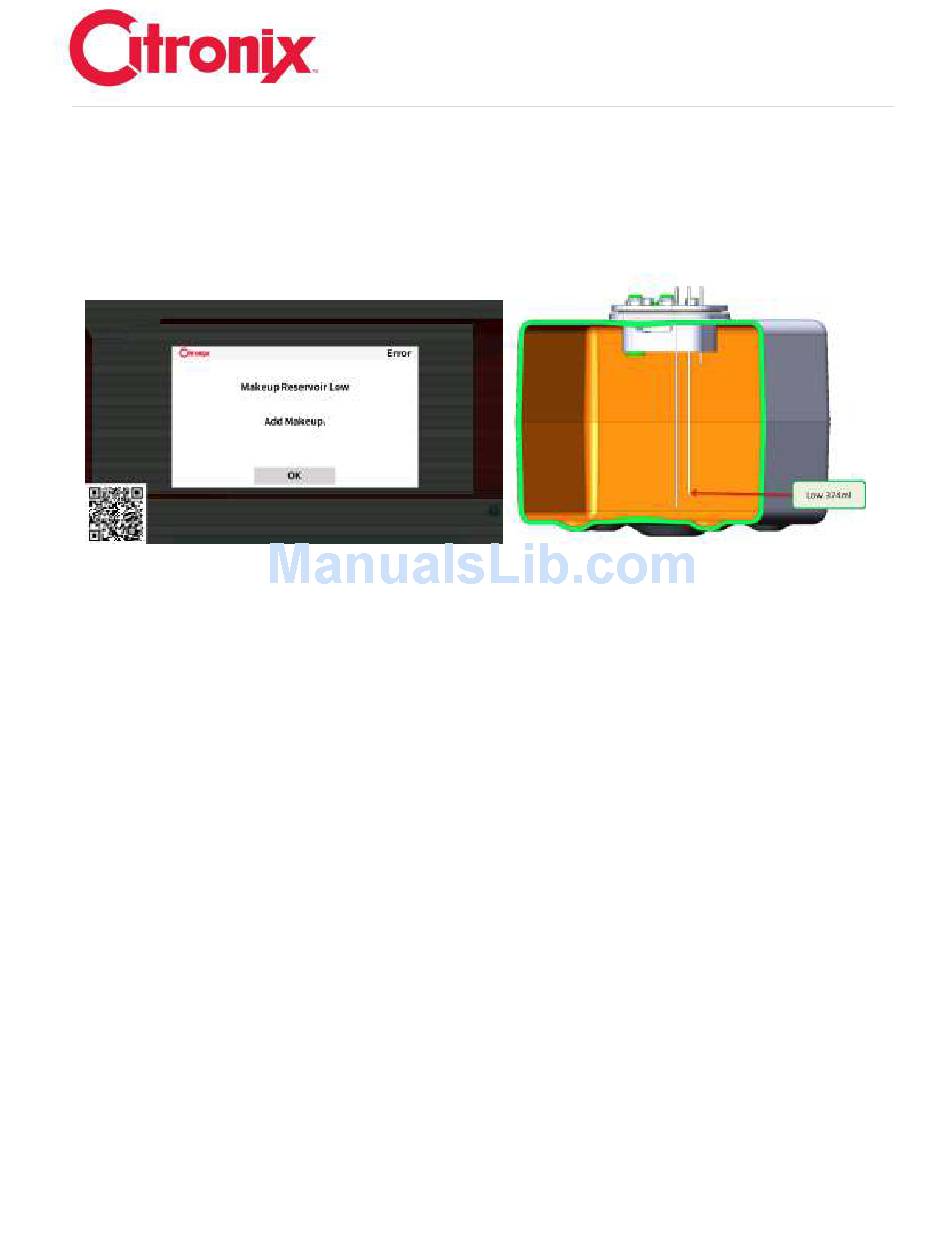

Makeup Reservoir Low
Definition:
This warning/fault will occur when the level of Make-up in the Make-up tank drops below 374ml and is no
longer touching the "Low" Level rod.
Corrective Action:
Add Make-up (see Section 3 Sub-section "Add Ink and Make-up")
Makeup Probe Shorted
Definition:
This error will occur when the CPU board senses a short on any of the Make-Up level sensing circuit.
Corrective Action:
1. Remove the Make-Up Manifold from the Make-Up tank and ensure the level rods are not touching
each other.
2. Remove the Level Rod Wires from the rod on top of the Make-Up Manifold. Then unplug the level
rod cable from the CPU board J11 connector. Ohm each wire for continuity. If a short in found replace
the cable assembly.
3. Replace the CPU board. (see the CPU Replacement procedure earlier in this manual)
Filter Service Required
Definition:
The ci5000 series printers introduce ciEasyServ: a quick, easy, no mess/no fuss, tool free service
module. This Service Module (filter assembly) filters all ink and Make-up fluids throughout the printer
while the pump is running. This must be changed out at a set number of run hours to provide clean fluids
