3. Check Pressure Transducer (possibly an incorrect reading). See "Pressure Sensor Inaccurate"
Pump Pressure Error – PRESSURE LOW
Definition:
This error/fault is caused when the pressure is continually falls below the set point (usually this is 40psi).
Corrective Action:
1. The Filter Module is clogged or dirty. Ensure that Filters have been changed within the timeframe
specified in the maintenance chart.

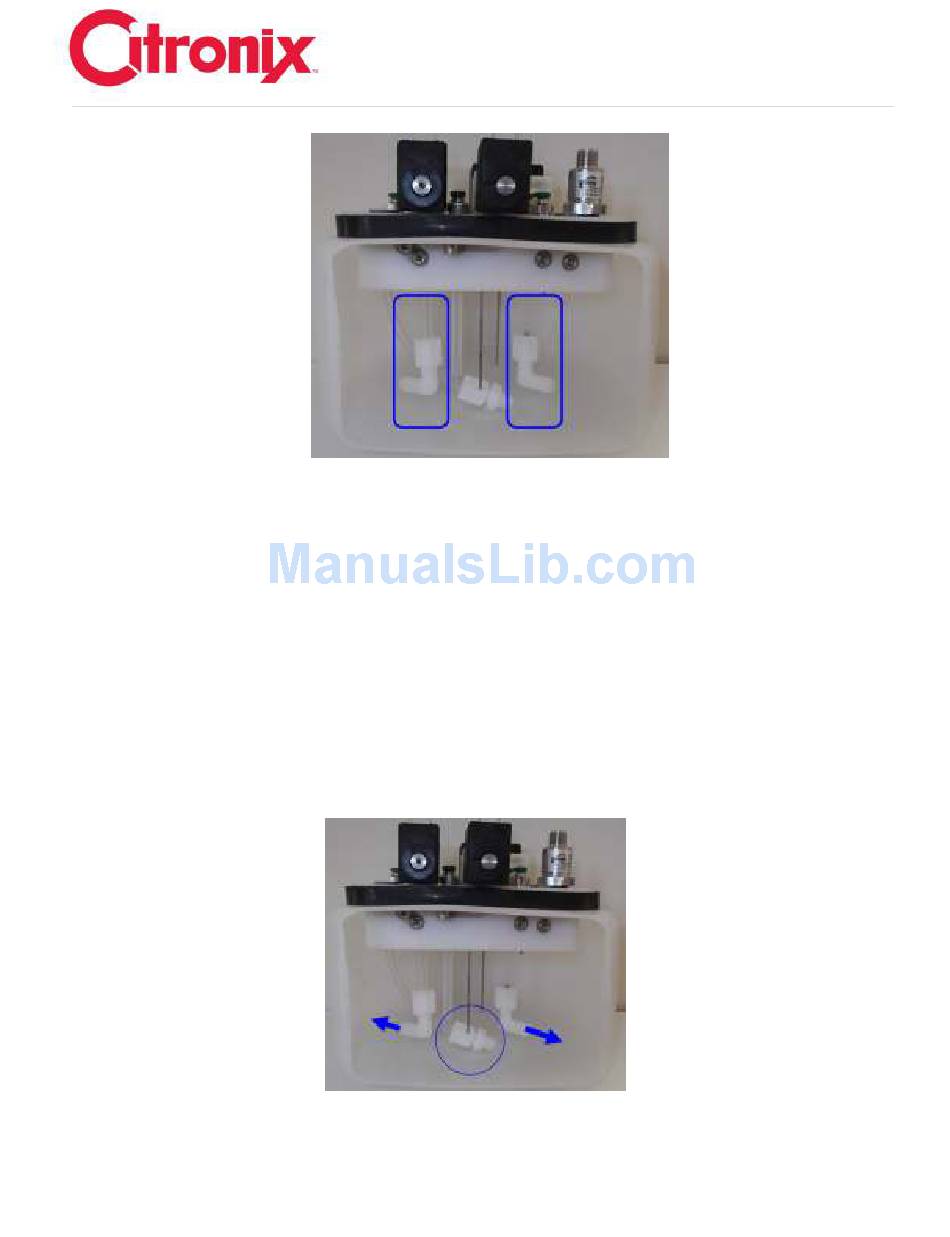

2. Ink Pickup Tube is too close to Return Tubes. Ensure the Pickup Tube is set to the center of the
ink tank and the return tubes are pointing away as seen in the picture below.
3. Ensure the Pickup Tube does not have anything blocking the input flow.
