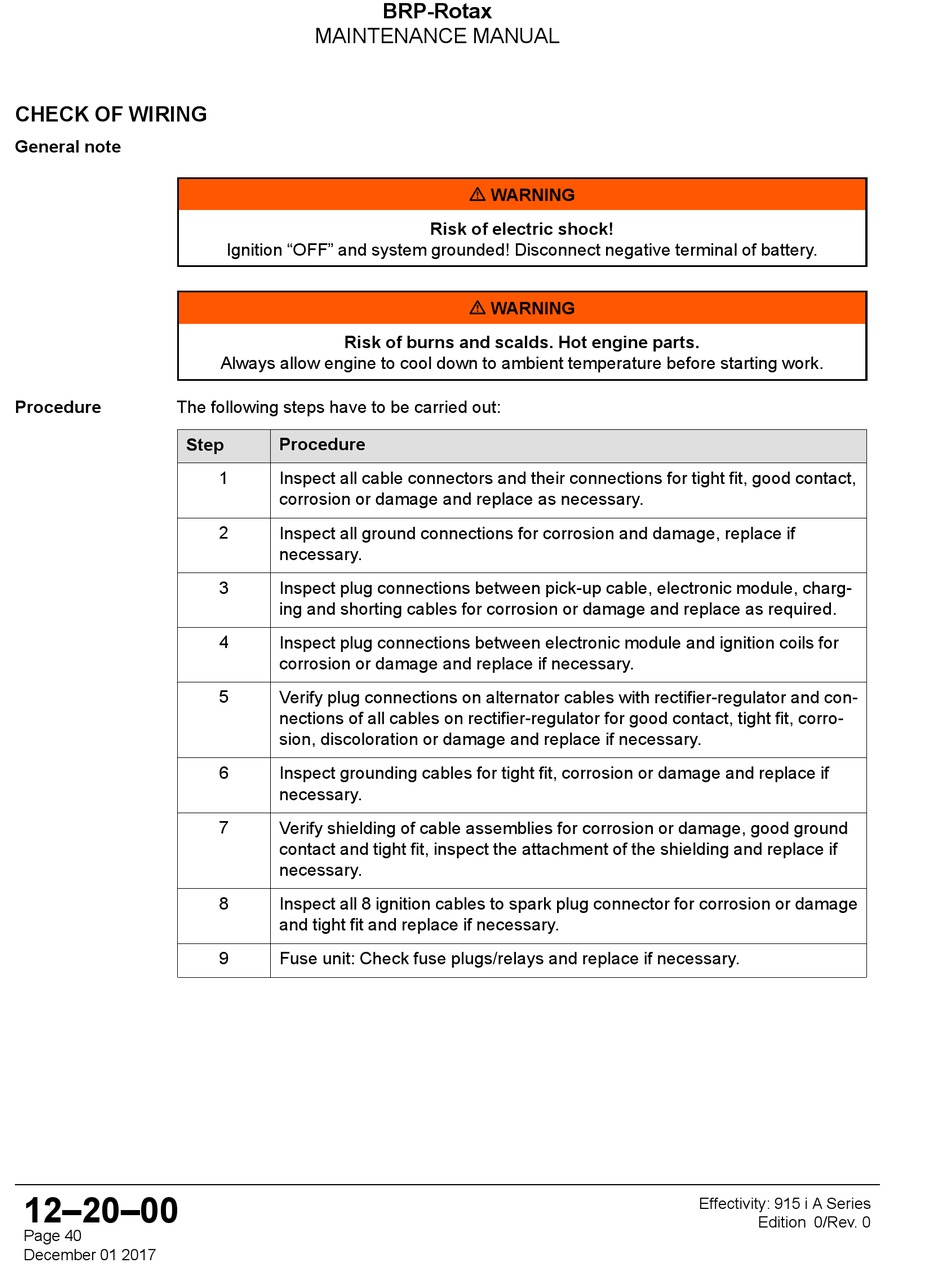

CHECK OF WIRING

General note
Procedure The following steps have to be carried out:
Step
12–20–00
Page 40
December 01 2017
BRP-Rotax
MAINTENANCE MANUAL
Ignition "OFF" and system grounded! Disconnect negative terminal of battery.
Risk of burns and scalds. Hot engine parts.
Always allow engine to cool down to ambient temperature before starting work.
Procedure
1 Inspect all cable connectors and their connections for tight fit, good contact,
corrosion or damage and replace as necessary.
2 Inspect all ground connections for corrosion and damage, replace if
necessary.
3 Inspect plug connections between pick-up cable, electronic module, charg-
ing and shorting cables for corrosion or damage and replace as required.
4
Inspect plug connections between electronic module and ignition coils for
corrosion or damage and replace if necessary.
5
Verify plug connections on alternator cables with rectifier-regulator and con-
nections of all cables on rectifier-regulator for good contact, tight fit, corro-
sion, discoloration or damage and replace if necessary.
6 Inspect grounding cables for tight fit, corrosion or damage and replace if
necessary.
7 Verify shielding of cable assemblies for corrosion or damage, good ground
contact and tight fit, inspect the attachment of the shielding and replace if
necessary.
8 Inspect all 8 ignition cables to spark plug connector for corrosion or damage
and tight fit and replace if necessary.
9 Fuse unit: Check fuse plugs/relays and replace if necessary.
m WARNING
Risk of electric shock!
m WARNING
Effectivity: 915 i A Series
Edition 0/Rev. 0
