7
NXDN™ OPERATION

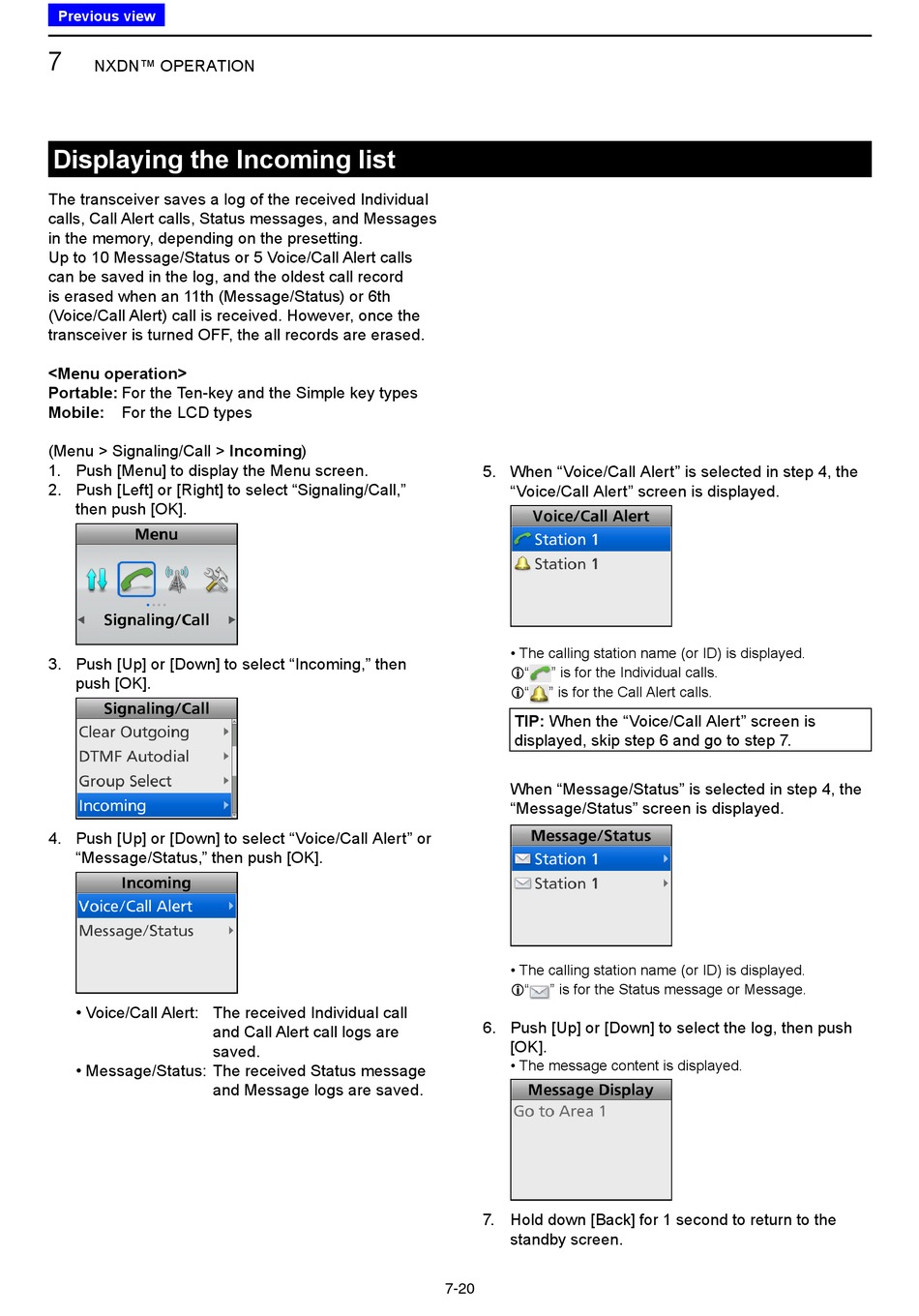

Displaying the Incoming list

The transceiver saves a log of the received Individual
calls, Call Alert calls, Status messages, and Messages
in the memory, depending on the presetting.
Up to 10 Message/Status or 5 Voice/Call Alert calls
can be saved in the log, and the oldest call record
is erased when an 11th (Message/Status) or 6th
(Voice/Call Alert) call is received. However, once the
transceiver is turned OFF, the all records are erased.
<Menu operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
(Menu > Signaling/Call > Incoming)
1. Push [Menu] to display the Menu screen.
2. Push [Left] or [Right] to select "Signaling/Call,"
then push [OK].
3. Push [Up] or [Down] to select "Incoming," then
push [OK].
4. Push [Up] or [Down] to select "Voice/Call Alert" or
"Message/Status," then push [OK].
• Voice/Call Alert: The received Individual call
and Call Alert call logs are
saved.
• Message/Status: The received Status message
and Message logs are saved.
5. When "Voice/Call Alert" is selected in step 4, the
"Voice/Call Alert" screen is displayed.
• The calling station name (or ID) is displayed.
" is for the Individual calls.
L"
" is for the Call Alert calls.
L"
TIP: When the "Voice/Call Alert" screen is
displayed, skip step 6 and go to step 7.
When "Message/Status" is selected in step 4, the
"Message/Status" screen is displayed.
• The calling station name (or ID) is displayed.
" is for the Status message or Message.
L"
6. Push [Up] or [Down] to select the log, then push
[OK].
• The message content is displayed.
7. Hold down [Back] for 1 second to return to the
standby screen.
7-20
