7

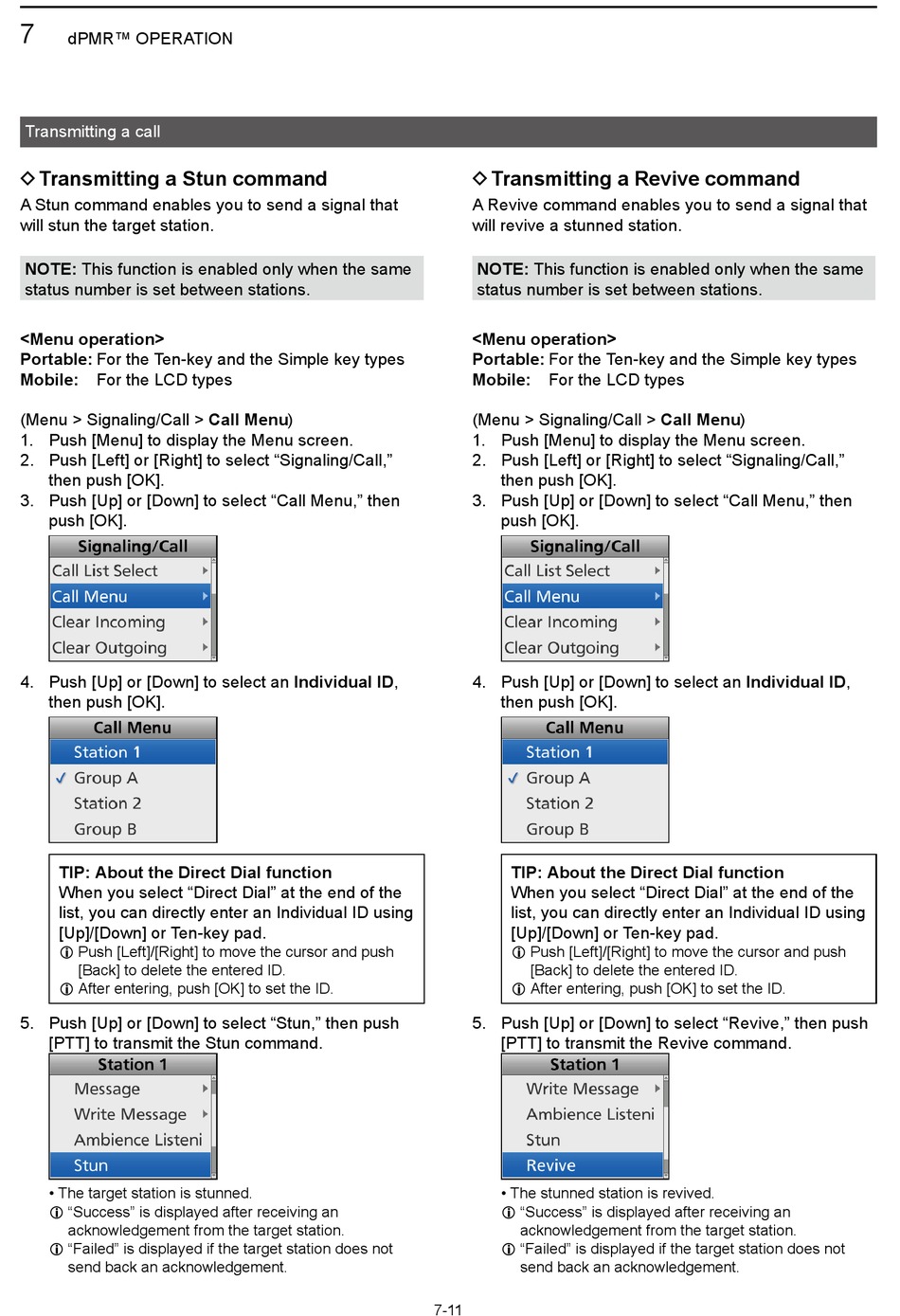

dPMR™ OPERATION
Transmitting a call

D Transmitting a Stun command

A Stun command enables you to send a signal that
will stun the target station�
NOTE: This function is enabled only when the same
status number is set between stations�
<Menu operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [Left] or [Right] to select "Signaling/Call,"
then push [OK]�
3� Push [Up] or [Down] to select "Call Menu," then
push [OK]�
4� Push [Up] or [Down] to select an Individual ID,
then push [OK]�
TIP: About the Direct Dial function
When you select "Direct Dial" at the end of the
list, you can directly enter an Individual ID using
[Up]/[Down] or Ten-key pad�
L Push [Left]/[Right] to move the cursor and push
[Back] to delete the entered ID�
L After entering, push [OK] to set the ID�
5� Push [Up] or [Down] to select "Stun," then push
[PTT] to transmit the Stun command�
• The target station is stunned�
L "Success" is displayed after receiving an
acknowledgement from the target station�
L "Failed" is displayed if the target station does not
send back an acknowledgement�

D Transmitting a Revive command

A Revive command enables you to send a signal that
will revive a stunned station�
NOTE: This function is enabled only when the same
status number is set between stations�
<Menu operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [Left] or [Right] to select "Signaling/Call,"
then push [OK]�
3� Push [Up] or [Down] to select "Call Menu," then
push [OK]�
4� Push [Up] or [Down] to select an Individual ID,
then push [OK]�
TIP: About the Direct Dial function
When you select "Direct Dial" at the end of the
list, you can directly enter an Individual ID using
[Up]/[Down] or Ten-key pad�
L Push [Left]/[Right] to move the cursor and push
[Back] to delete the entered ID�
L After entering, push [OK] to set the ID�
5� Push [Up] or [Down] to select "Revive," then push
[PTT] to transmit the Revive command�
• The stunned station is revived�
L "Success" is displayed after receiving an
acknowledgement from the target station�
L "Failed" is displayed if the target station does not
send back an acknowledgement�
7-11
