Fixed Cycles: Tapping / Thread Milling | HELICAL THREAD DRILLING/MILLING (Cycle 265, DIN/ISO: G265)
Q204 2nd set-up clearance? (incremental):
Coordinate in the spindle axis at which no collision
between tool and workpiece (fixtures) can occur.
Input range 0 to 99999.9999
Q254 Feed rate for counterboring?: Traversing
speed of the tool in mm/min during counterboring.
Input range 0 to 99999.9999 alternatively FAUTO,
fu
Q207 Feed rate for milling?: Traversing speed of
the tool in mm/min while milling. Input range 0 to
99999.999 alternatively FAUTO
150
NC blocks
25 CYCL DEF 265 HEL. THREAD DRLG/
MLG
Q335=10 ;NOMINAL DIAMETER
Q239=+1.5 ;THREAD PITCH
Q201=-16 ;DEPTH OF THREAD
Q253=750 ;F PRE-POSITIONING

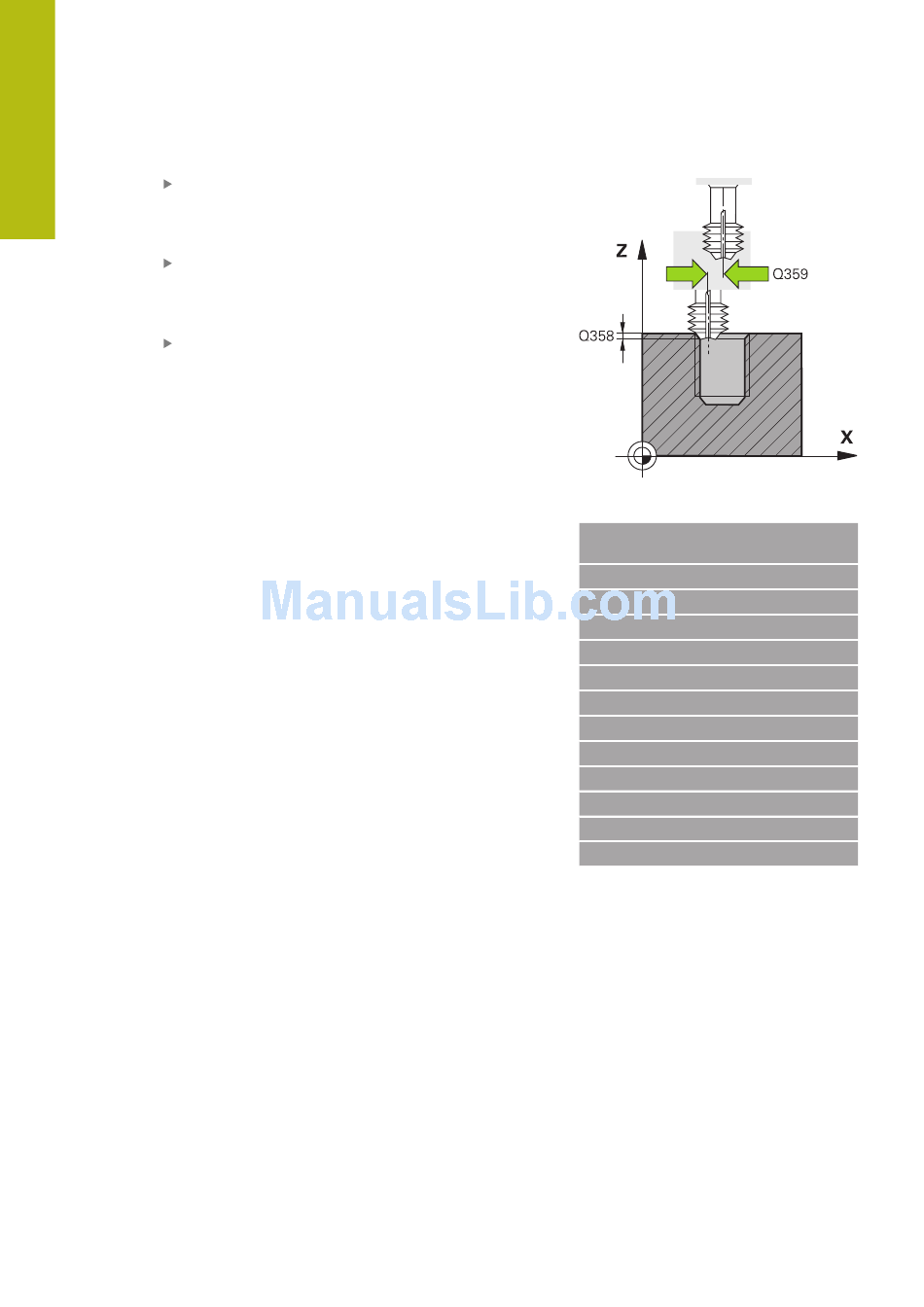

Q358=+0 ;DEPTH AT FRONT
Q359=+0 ;OFFSET AT FRONT
Q360=0 ;COUNTERSINK PROCESS
Q200=2 ;SET-UP CLEARANCE
Q203=+30 ;SURFACE COORDINATE
Q204=50 ;2ND SET-UP CLEARANCE
Q254=150 ;F COUNTERBORING
Q207=500 ;FEED RATE FOR MILLNG
