44-pin IDE Port

Note:
36
Signal
RESET-
DD7
DD6
DD5
DD4
DD3
DD2
DD1
DD0
Ground
DMARQ
DIOW-
DIOR-
IORDY
DMACK-
INTRQ
DA1
DA0
CS0-
DASP-
+5V
Ground

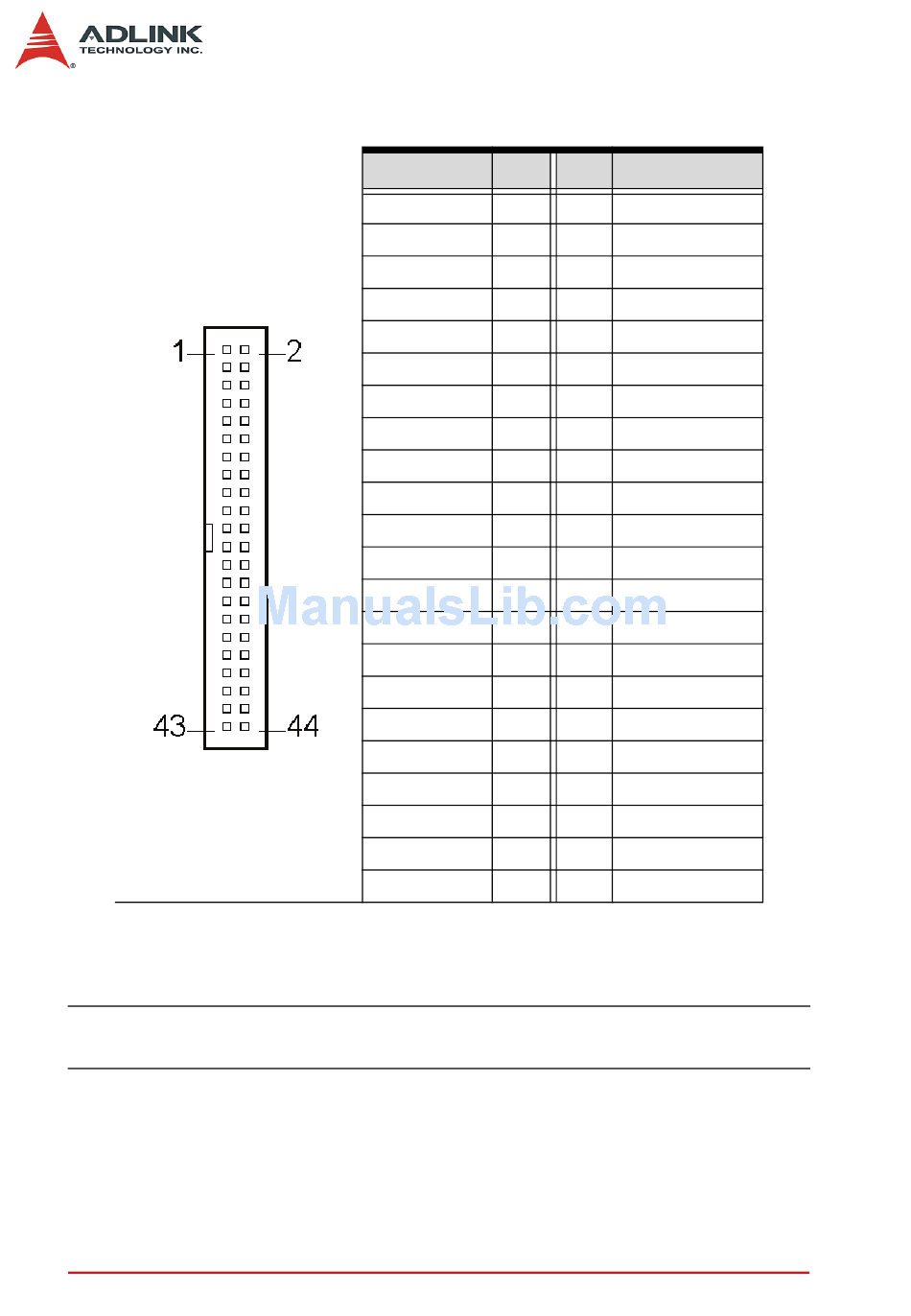

Table 2-13: 44-pin IDE connector

Primary IDE is on the front board (CN8) on the
RTM.
Pin Pin Signal
1 2 Ground
3 4 DD8
5 6 DD9
7 8 DD10
9 10 DD11
11 12 DD12
13 14 DD13
15 16 DD14
17 18 DD15
19 20 N.C (key pin)
21 22 Ground
23 24 Ground
25 26 Ground
27 28 CSEL
29 30 Ground
31 32 reserved
33 34 PDIAG-
35 36 DA2
37 38 CS1-
39 40 Ground
41 42 +5V
43 44 TYPE-
