Keyboard and Mouse Combo Connector

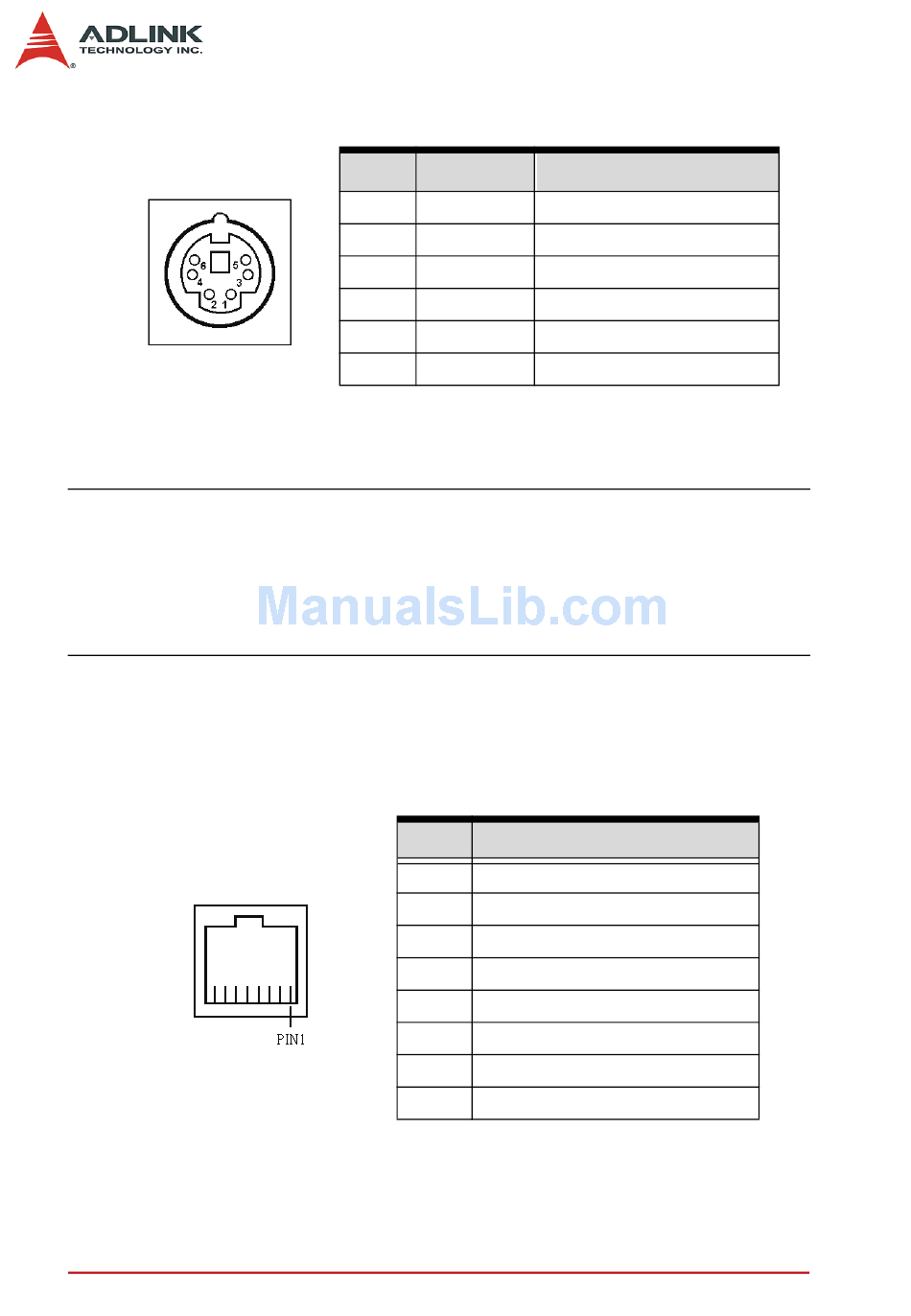

Table 2-5: Keyboard and Mouse Combo Connector

Note:

Serial Port Connectors

Serial Port on RJ-45 Connector

Table 2-6: COM1 on front board or COM2 on the RTM

32
Pin
1
2
3
4
5
6
Keyboard and Mouse Combo Connector is available
on the cPCI-R6820 RTM only. A Y-cable is shipped
with the RTM and can be used to connect a PS/2
keyboard
and
connection of a PS/2 keyboard is also supported for
applications that do not require a mouse.
Pin
Signal
KBDATA
Keyboard Data
MSDATA
Mouse Data
GND
+5V
KBCLK
Keyboard Clock
MSCLK
Mouse Clock
mouse
simultaneously.
Signal Name
1
DCD, Data carrier detect
2
RTS, Request to send
3
DSR, Data set ready
4
TXD, Transmit data
5
RXD, Receive data
6
GND, ground
7
CTS, Clear to send
8
DTR, Data terminal ready
Jumpers and Connectors
Function
Ground
Power
Direct
