Serial Port on 10-pin Header Connector
Jumpers and Connectors
Pin
1
DCD: Data Carrier Detect
2
3
4
DTR: Data Terminal Ready
5
6
7
8
9
10

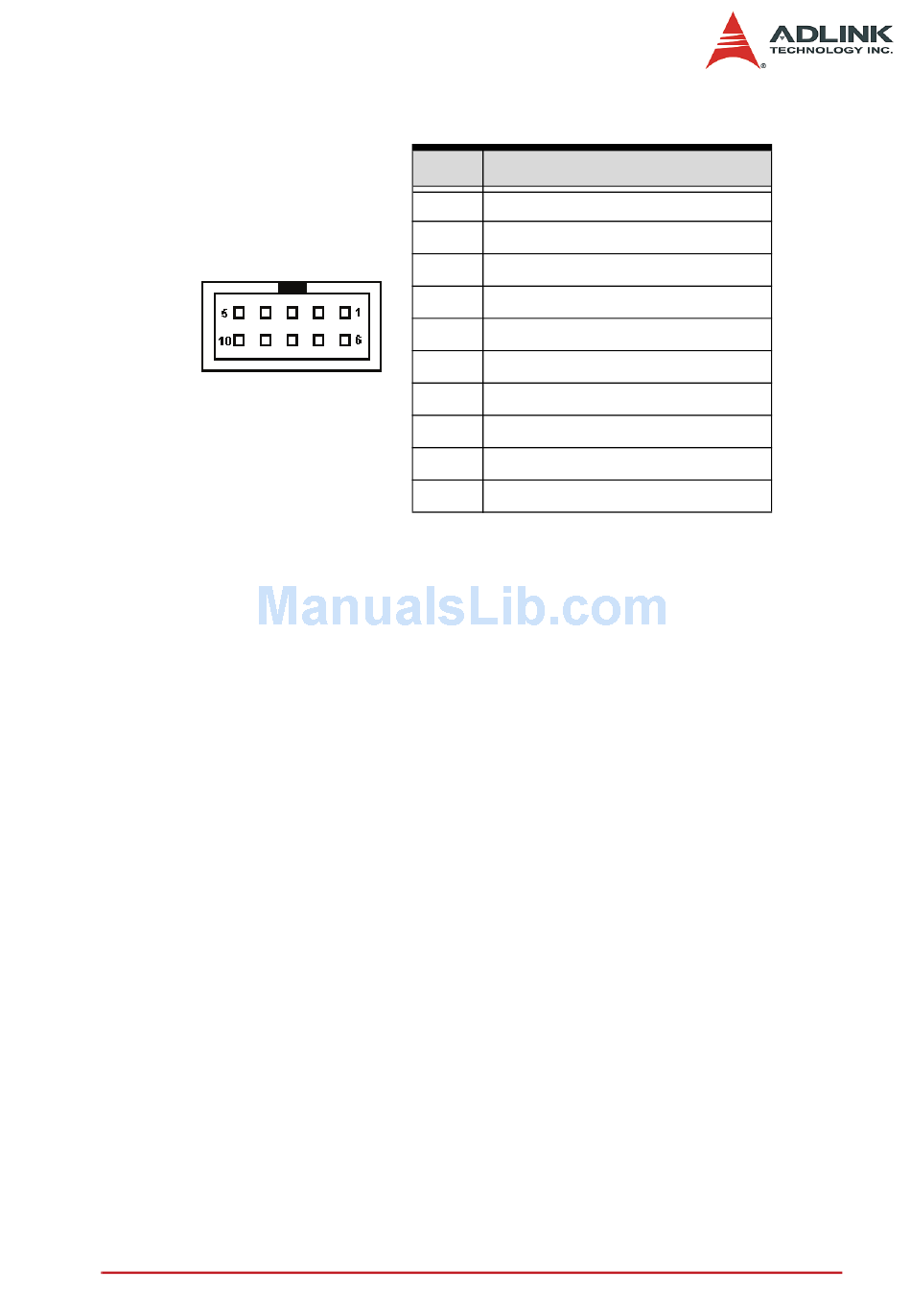

Table 2-7: COM1 on RTM

Signal Name
RXD: Receive Data
TXD: Transmit Data
Ground
DSR: Data Set Ready
RTS: Request to Send
CTS: Clear to Send
RI: Ring Indicate
No Connect
