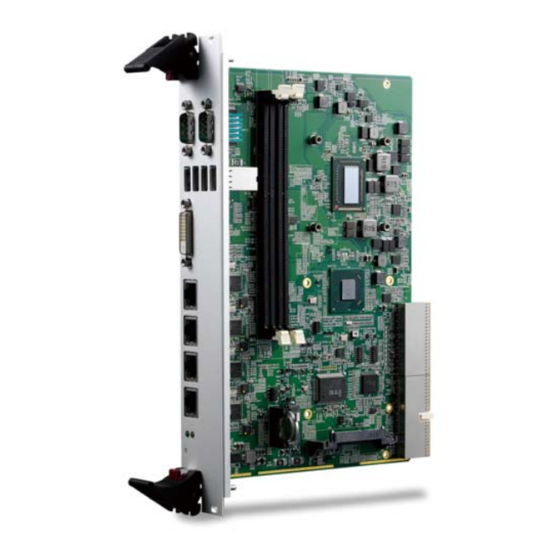

ADLINK Technology cPCI-6620 Series User Manual

6u compactpci processor blade with 2nd generation intel core i7/celeron
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
with 2nd Generation Intel
Manual Rev.
Revision Date:
Part No:
Advance Technologies; Automate the World.
cPCI-6620 Series
6U CompactPCI Processor Blade
User's Manual
2.00
November 7, 2012
50-15083-1000
®
Core™ i7/Celeron
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cPCI-6620 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology cPCI-6620 Series

Summary of Contents for ADLINK Technology cPCI-6620 Series

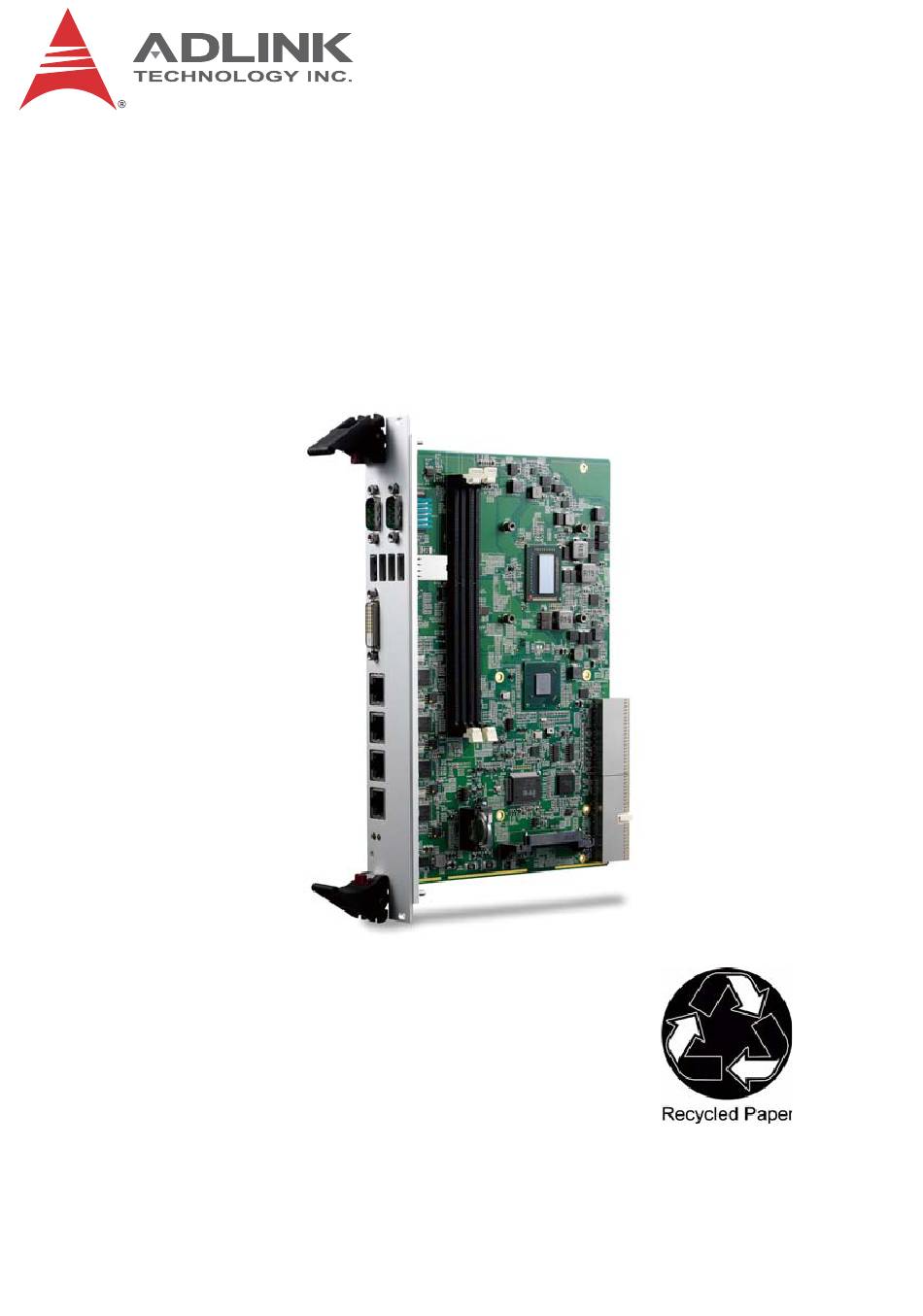

  • Page 1 Series 6U CompactPCI Processor Blade ® ® with 2nd Generation Intel Core™ i7/Celeron User’s Manual Manual Rev. 2.00 Revision Date: November 7, 2012 Part No: 50-15083-1000 Advance Technologies; Automate the World.
  • Page 2 Revision History Revision Release Date Description of Change(s) 2.00 2012/11/7 Initial release...

  • Page 3: Preface

    Preface Copyright 2012 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Using this Manual Audience and Scope The cPCI-6620 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating industrial grade CompactPCI modules. Manual Organization This manual is organized as follows: Chapter 1, Overview: Introduces the cPCI-6620, its features, block diagrams, and package contents.
  • Page 5 cPCI-6620 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 6 This page intentionally left blank. Preface...

  • Page 7: Table Of Contents

    Intel® Turbo Boost Technology ......... 14 Intel® Hyper-Threading Technology........14 Battery ................15 4 Board Interfaces ............... 17 cPCI-6620 Series Board Layout ........17 cPCI-6620 Assembly Layout ..........18 cPCI-6620 Front Panel ............19 Connector Pin Assignments ..........20 Switches ................26...
  • Page 8 5 Getting Started ..............27 CPU and Heatsink ............. 27 Memory Module Installation ..........27 SATA Drive Installation ............28 6 Drivers & Utilities .............. 31 Driver Installation Procedure..........31 7 BIOS Setup Utility ............. 37 Starting the BIOS ............... 37 Main Setup.................

  • Page 9: List Of Tables

    cPCI-6620 List of Tables Table 2-1: cPCI-6620 Specifications ......... 6 Table 2-2: cPCI-6620 I/O Connectivity ........7 Table 2-3: CompactPCI Input Voltage Characteristics ....8 Table 4-1: cPCI-6620 Front Panel Status LED Descriptions ... 19 Table 4-2: USB Connector Pin Definition ........ 20 Table 4-3: GbE Connector Pin Definitions .......
  • Page 10 This page intentionally left blank. List of Tables...

  • Page 11: List Of Figures

    List of Figures Figure 1-1: cPCI-6620 Series Block Diagram ......2 Figure 4-1: cPCI-6620 Series Board Layout ......17 Figure 4-2: cPCI-6620 Assembly Layout ........18 Figure 4-3: cPCI-6620 Front Panel Layout ........ 19 List of Figures...
  • Page 12 This page intentionally left blank. List of Figures...

  • Page 13: Overview

    cPCI-6620 Overview 1.1 Introduction The cPCI-6620 is a highly integrated 6U CompactPCI blade in dual slot width (8HP) form factor. Its design is based on the 2nd Generation Intel® Core™ i7 and Celeron® processors in FCBGA1023 package with Mobile Intel® HM65 Express Chipset. The cPCI-6620 is a value 6U CompactPCI blade that offers inte- grated graphics, I/O bandwidth, asset management capabilities, data transfer speed and reliability.

  • Page 14: Features

    PCIe x1 Intel 82574L LAN3 PCIe x1 Intel 82574L HM65 Intel LAN4 PCIe x1 SATA0 82574L 2.5” HDD USB 0/1/2/3 TMDS CH7318C BIOS COM1, COM2 PCIe x1 PCI 32b/33M IT8718F TI XIO2001IZ J1/J2 Figure 1-1: cPCI-6620 Series Block Diagram Overview...

  • Page 15: Product List

    1.4 Product List Products in the cPCI-6620 Series include: Processor Blade cPCI-6620/655L: 8HP (dual slot) 6U CompactPCI featuring Intel® Core™ i7-2655LE Processor; up to 16GB DDR-1066/1333; GbE x4, COM x2, DVI-D, USB x4, onboard SATA connector cPCI-6620/847E: 8HP (dual slot) 6U CompactPCI featuring Intel®...

  • Page 16: Package Contents

    Thermal module is assembled onboard 2.5" SATA drive accessory pack ADLINK All-in-One DVD User's manual The contents of non-standard cPCI-6620 Series configurations may vary depending on customer requests. NOTE: NOTE: This product must be protected from static discharge and phys- ical shock.

  • Page 17: Specifications

    cPCI-6620 Specifications 2.1 cPCI-6620 Specifications CompactPCI PICMG® 2.0 CompactPCI® Rev. 3.0 Standard Standard 6U CompactPCI® Board size: 233.23 mm x 160mm Mechanical Dual slot (8HP, 40.64 mm) width CompactPCI® connectors J1, J2 2nd Generation Intel® Core™ processor in FCBGA1023 package with passive heatsink Processor •...

  • Page 18: Table 2-1: Cpci-6620 Specifications

    4x USB 2.0 ports (Type-A) 4x RJ-45 LAN ports 1x DVI-D port Faceplate I/O 2x DB-9 COM ports HDD Status LED (yellow) Power Status LED (green) Reset button Battery BR2032 in battery socket OS Support Windows XP/7 Embedded + RTX extension Operating Temperature: 0°C to 60°C Storage Temperature: -40°C to 85°C Environmental...

  • Page 19: I/O Connectivity

    cPCI-6620 2.2 I/O Connectivity cPCI-6620 Processor Blade Function Faceplate Board — COM (RS-232) Y x2 — Y x4 — USB 2.0 Y x4 — DVI-D SATA — LEDs Y x2 — Reset Button — Clear CMOS Button Table 2-2: cPCI-6620 I/O Connectivity Notes: 1.

  • Page 20: Power Requirements

    2.3 Power Requirements In order to guarantee a stable functionality of the system, it is rec- ommended to provide more power than the system requires. An industrial power supply unit should be able to provide at least twice as much power as the entire system requires of each voltage.
  • Page 21 Power Consumption This section provides information on the power consumption of the cPCI-6620 Series with different CPUs, 2x 4GB DDR3-1066 SO-DIMM memory and onboard 160GB SATA hard disk. The cPCI-6620 is powered by 5V only. Power consumption at 100%...
  • Page 22 This page intentionally left blank. Specifications...

  • Page 23: Functional Description

    The processor includes Integrated Dis- play Engine, Processor Graphics and Integrated Memory Controller. The cPCI-6620 Series supports the Intel® Core™ i7/Celeron® pro- cessors. The table below lists the general specifications and power ratings of the CPUs supported by the cPCI-6620 Series.
  • Page 24 Supported Technologies Intel® Virtualization Technology for Directed I/O (Intel® VT-d) Intel® Virtualization Technology (Intel® VT-x) Intel® Hyper-Threading Technology Intel® 64 Architecture Execute Disable Bit Intel® Turbo Boost Technology Intel® Trusted Execution Technology Interfaces Two channels of DDR3 memory with a maximum of one DIMM per channel Memory DDR3 data transfer rates of 1066 MT/s and 1333 MT/s...

  • Page 25: Platform Controller Hub

    cPCI-6620 3.2 Platform Controller Hub The HM65 PCH provides extensive I/O support. Functions and capabilities include: PCI Express Base Specification, Revision 2.0 support for up to eight ports with transfers up to 5 GT/s ACPI Power Management Logic Support, Revision 4.0a Enhanced DMA controller, interrupt controller, and timer functions Integrated Serial ATA host controllers with independent...

  • Page 26: Intel® Turbo Boost Technology

    3.3 Intel® Turbo Boost Technology Intel Turbo Boost Technology is a feature that allows the processor to opportunistically and automatically run faster than its rated operating core and/or render clock frequency when there is suffi- cient power headroom, and the product is within specified temper- ature and current limits.

  • Page 27: Battery

    cPCI-6620 3.5 Battery The cPCI-6620 is equipped with a 3.0V "coin cell" lithium battery for the Real Time Clock (RTC). The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. A Rayovac BR2032 is equipped on board by default.
  • Page 28 This page intentionally left blank. Functional Description...

  • Page 29: Board Interfaces

    Board Interfaces This chapter describes the board layout, connector pin assign- ments, and jumper settings of the cPCI-6620 Series. 4.1 cPCI-6620 Series Board Layout DIMM2 DIMM1 COM1/2 USB x4 DVI-D LAN3 LAN4 LAN2 LAN1 LEDs Reset Battery socket Intel HM65 PCH...

  • Page 30: Cpci-6620 Assembly Layout

    4.2 cPCI-6620 Assembly Layout This section illustrates the final assembly layout of the single slot cPCI-6620 blade. Heatsink 2.5” SATA Drive Figure 4-2: cPCI-6620 Assembly Layout Board Interfaces...

  • Page 31: Cpci-6620 Front Panel

    cPCI-6620 4.3 cPCI-6620 Front Panel COM1 COM2 DVI-D LAN3 LAN4 LAN2 LAN1 COM1/2 USB x4 DVI-D LAN3/4/2/1 LEDs Reset Figure 4-3: cPCI-6620 Front Panel Layout Status LEDs Color Condition Indication System is off Power Green (PWR) System is on No drive activity (HDD) Blinking SATA drive read/write in process...

  • Page 32: Connector Pin Assignments

    4.4 Connector Pin Assignments Refer to “cPCI-6620 Series Board Layout” on page 17 and “cPCI-6620 Front Panel Layout” on page 19 for connector loca- tions USB Connectors Pin # Signal Name UV0- UV0+ Table 4-2: USB Connector Pin Definition Board Interfaces...

  • Page 33: Table 4-3: Gbe Connector Pin Definitions

    cPCI-6620 RJ-45 Gigabit Ethernet Connectors 10BASE-T/ Pin # 1000BASE-T 100BASE-TX LAN1/2/3/4_TX0+ LAN1/2/3/4_TX0- LAN1/2/3/4_TX1+ LAN1/2/3/4_TX2+ LAN1/2/3/4_TX2- Speed Activity LAN1/2/3/4_TX1- LAN1/2/3/4_TX3+ LAN1/2/3/4_TX3+ Table 4-3: GbE Connector Pin Definitions Speed LED Activity LED Status (Green/Amber) (Amber) Network link is not established or system powered off Link 10 Mbps Active...

  • Page 34: Table 4-4: Com1~2 Connector Pin Definition

    COM1~2 Connectors (DB-9) Pin # RS-232 DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Table 4-4: COM1~2 Connector Pin Definition DVI-D Connector (CN1-L) Pin # Signal...

  • Page 35: Table 4-6: Sata Direct Connector Pin Definition

    cPCI-6620 SATA Direct Connector Pin # Signal Signal Power P13~P15 Table 4-6: SATA Direct Connector Pin Definition Board Interfaces...

  • Page 36: Table 4-7: Compactpci J1 Connector Pin Definition

    CompactPCI J1 Connector Pin Assignment REQ64# ENUM# +3.3V V(I/O) ACK64# P3V3 CPCI_AD4 CPCI_AD3 CPCI_AD2 CPCI_AD7 P3V3 CPCI_AD6 CPCI_AD5 P3V3 CPCI_AD9 CPCI_AD8 CPCI_M66EN CPCI_CBE-L0 GND CPCI_AD12 CPCI_AD11 CPCI_AD10 P3V3 CPCI_AD15 CPCI_AD14 CPCI_AD13 CPCI_SERR-L P3V3 CPCI_PAR CPCI_CBE-L1 GND P3V3 IPMB_CLK IPMB_DAT CPCI_PERR-L GND GND CPCI_DEVSEL-L CPCI_STOP-L CPCI_LOCK-L GND P3V3...

  • Page 37: Table 4-8: Compactpci J2 Connector Pin Definition

    cPCI-6620 CompactPCI J2 Connector Pin Assignment CLK6 CLK5 RSTBTN# REQ6# GNT6# DEG# FAL# REQ5# GNT5# AD35 AD34 AD33 AD32 AD38 V(I/O) AD37 AD36 AD42 AD41 AD40 AD39 AD45 V(I/O) AD44 AD43 AD49 AD48 AD47 AD46 AD52 V(I/O) AD51 AD50 AD56 AD55 AD54 AD53...

  • Page 38: Switches

    4.5 Switches Refer to “cPCI-6620 Series Board Layout” on page 17 for switch locations. Reset Button (SW2) Press Reset Button to reset the system. Clear CMOS Switch (SW1) Press switch SW1 to clear CMOS and reset the BIOS values to default.

  • Page 39: Getting Started

    2.5” SATA hard drive 2.5" SATA storage drive 5.1 CPU and Heatsink The cPCI-6620 Series comes with CPU and heatsink pre-installed. Removal of heatsink/CPU by users is not recommended. Please contact your ADLINK service representative for assistance. 5.2 Memory Module Installation The cPCI-6620 provides two 240-pin DIMM sockets for DDR3-1066/1333 memory modules.

  • Page 40: Sata Drive Installation

    2. Secure the memory module by pushing the white latches on both sides of the socket.. 5.3 SATA Drive Installation The cPCI-6620 provides space to install a slim type 2.5" SATA storage drive. Storage drive standoffs and mounting screws are provided in the accessory kit.
  • Page 41 cPCI-6620 2. Turn the drive top side up and align the drive with the onboard SATA connector as shown. Insert the drive until it is properly seated in the connector. 3. Turn the cPCI-6620 solder side up, being careful to sup- port the SATA drive.
  • Page 42 This page intentionally left blank. Getting Started...

  • Page 43: Drivers & Utilities

    cPCI-6620 Drivers & Utilities The cPCI-6620 drivers can be found on the ADLINK All-In-One DVD at X:\cPCI\cPCI-6620\ or from the ADLINK website (http://www.adlinktech.com). ADLINK provides validated driv- ers for Windows XP Professional and Windows 7. We recommend using these drivers to ensure compatibility. 6.1 Driver Installation Procedure The following describes the driver installation procedures for Win- dows XP.
  • Page 44 Sample Code The sample program written in C shown below offers an interactive way to test the Watchdog Timer under DOS. #include<stdio.h> #include<dos.h> #define IT8783_ID1 0x87 #define IT8783_ID2 0x83 static unsigned int IT8783_ioPort = 0x2e; //Check index port void Enter_IT8783_Config(unsigned int flag) if(flag) IT8783_ioPort = 0x4e;...
  • Page 45 cPCI-6620 outportb(IT8783_ioPort, 0x02); outportb(IT8783_ioPort+1, 0x02); //Check chip void Get_IT8783_ID(unsigned int &ID1, unsigned int &ID2) outportb(IT8783_ioPort, 0x20); ID1 = inportb(IT8783_ioPort+1); outportb(IT8783_ioPort, 0x21); ID2 = inportb(IT8783_ioPort+1); //WDT and LED program void IT8783_3_WDTRun(unsigned int count_value, unsigned int PLEDflag) //for cPCI-6510 unsigned long tempCount; unsigned int registerValue;...
  • Page 46 registerValue &= 0xfe; // set GP60 is alternate function outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0xCD); registerValue = inportb(IT8783_ioPort + registerValue |= 0x01; // set GP60 is output outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0xf8); outportb(IT8783_ioPort+1, 0x30); PLED mapping to GP60 outportb(IT8783_ioPort, 0xf9); registerValue = inportb(IT8783_ioPort + registerValue |= 0x02;...
  • Page 47 cPCI-6620 outportb(IT8783_ioPort+1, registerValue); // set WDT count is minute tempCount = count_value / 60; if((count_value%60) > 30) tempCount++; if(tempCount > 65535) tempCount = 65535; printf("WDT timeout in %d minutes.\n", tempCount); else outportb(IT8783_ioPort, 0x72); registerValue = inportb(IT8783_ioPort+1); registerValue |= 0x80; tempCount = count_value; if(tempCount != 0) printf("WDT timeout in %d seconds.\n", tempCount);...
  • Page 48 This page intentionally left blank. Drivers & Utilities...

  • Page 49: Bios Setup Utility

    cPCI-6620 BIOS Setup Utility The following chapter describes basic navigation for the AMIBIOS®8 BIOS setup utility. 7.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...
  • Page 50 Setup Menu The main BIOS setup menu is the first screen that you can navi- gate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.
  • Page 51 cPCI-6620 Navigation Note: There is a hot key legend located in the right frame on most setup screens. Keyboard Commands Enter Selects the highlighted option or submenu. < > The Left and Right "Arrow" keys allow you to select a setup screen.

  • Page 52: Main Setup

    7.2 Main Setup When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by select- ing the Main tab. There are two Main Setup options. They are described in this section.

  • Page 53: Advanced Bios Setup

    cPCI-6620 7.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub menu for that item.
  • Page 54 7.3.1 PCI Subsystem Settings PCI Latency Timer Value to be programmed into PCI Latency Timer Register. Options: 32 PCI Bus Clocks, 64 PCI Bus Clocks, 96 PCI Bus Clocks, 128 PCI Bus Clocks, 160 PCI Bus Clocks, 192 PCI Bus Clocks, 224 PCI Bus Clocks, 248 PCI Bus Clocks.
  • Page 55 cPCI-6620 7.3.2 ACPI Settings ACPI Sleep State Select the highest ACPI sleep state the system will enter, when the Suspend button is pressed. Options: S1(CPU Stop Clock), Suspend Disable. BIOS Setup Utility...
  • Page 56 7.3.3 CPU Configuration Active Processor Cores Number of cores to enable in each processor package. Options: All, 1. Intel Virtualization Enables/disables Intel Virtualization Technology. BIOS Setup Utility...
  • Page 57 cPCI-6620 7.3.4 SATA Configuration SATA Controller(s) This item enables/disables the SATA Controllers. SATA Mode Selection The SATA interface can be configured as legacy IDE or AHCI mode. BIOS Setup Utility...
  • Page 58 7.3.5 USB Configuration Legacy USB Support Legacy USB Support refers to USB mouse and keyboard sup- port. Normally if this option is not enabled, any attached USB mouse or keyboard will not become available until a USB com- patible operating system is fully booted with all USB drivers loaded.
  • Page 59 cPCI-6620 Device Reset Timeout USB mass storage device Start Unit command timeout. Options: 10 sec, 20 sec, 30 sec, 40 sec. Device Power-up Delay Maximum time the device will take before it properly reports itself to the Host Controller. "Auto" uses these default values: for a Root port it is 100ms, for a Hub port the delay is taken from the Hub descriptor.
  • Page 60 7.3.6 Super IO Configuration Serial Port 1/2 Configuration Each sub-menu allows you to enable/disable Serial Ports 1, 2. Serial port address and IRQ are not configurable. NOTE: NOTE: BIOS Setup Utility...
  • Page 61 cPCI-6620 7.3.7 Hardware Monitor BIOS Setup Utility...
  • Page 62 7.3.8 Serial Port Console Redirection The settings specify how the host computer and the remote computer will exchange data. Both computers should have the same or compatible settings. Console Redirection Enable or disable Console Redirection. BIOS Setup Utility...
  • Page 63 cPCI-6620 Console Redirection Settings Terminal Type VT-UTF8 is the preferred terminal type for out-of-band man- agement. The next best choice is VT100+ and then VT100. Options: VT100, VT100+, VT-UTF8, ASNI. Bits per Second Select the bit rate (bits/second) you want the serial port to use for console redirection.
  • Page 64 Communication with slow devices may require more than 1 stop bit. Set this value to 1 or 2. Flow Control Set this option to select Flow Control for console redirection. The settings for this value are Noneand Hardware RTS/CTS. Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow.
  • Page 65 cPCI-6620 7.3.9 Sandy Bridge PPM Configuration (Processor Power Management) EIST Enables/disables Enhanced Intel SpeedStep® Technology (EIST) BIOS Setup Utility...

  • Page 66: Chipset Configuration

    7.4 Chipset Configuration Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of Chipset BIOS Setup options by highlighting it using the < Arrow > keys. The Chipset BIOS Setup screen is shown below. BIOS Setup Utility...
  • Page 67 cPCI-6620 7.4.1 System Agent (SA) Configuratio Graphics Configuration Primary Display Allows you to select which graphics controller to use as the pri- mary boot device. Options: Auto, IGFX, PEG, PCI. Internal Graphics Allows you to select enable/disable.the internal graphics. Options: Auto, Enabled or Disabled BIOS Setup Utility...
  • Page 68 Memory Information BIOS Setup Utility...
  • Page 69 cPCI-6620 7.4.2 PCH-IO Configuration USB Configuration EHCI1 Controller 1 USB 2.0 (EHCI) support. Set this value to Enable/Disable. BIOS Setup Utility...
  • Page 70 PCI Express Configuration Use the submenus to configure the PCI Express Root Ports. ASPM Support Set the ASPM level. Options are as in the screen below: BIOS Setup Utility...
  • Page 71 cPCI-6620 Enable or disable PCI Express Unsupported Request Report- ing. Set this value to Enabled/Disabled. Enable or disable PCI Express device Fatal Error Reporting. Set this value to Enabled/Disabled. NFER Enable or disable PCI Express device Non-Fatal Error Report- ing. Set this value to Enabled/Disabled. Enable or disable PCI Express device Correctable Error Reporting.
  • Page 72 Extra Bus Reserved Extra Bus Reserved (0-7) for bridges behind this root bridge. Reserved Memory Reserved memory and prefetchable memory (1-20MB) range for this root bridge. Reserved I/O Reserved I/O (4K, 8K, 12K, 16K, 20K) range for this root bridge. BIOS Setup Utility...

  • Page 73: Boot Configuration

    cPCI-6620 7.5 Boot Configuration Select the Boot tab from the setup screen to enter the Boot Con- figuration screen. You can select any of the items in the left frame of the screen to go to the sub menu for that item. You can display a Boot Configuration option by highlighting it using the <...

  • Page 74: Security Setup

    7.6 Security Setup Administrator Password Use this option to set a password for administrators with full con- trol of the BIOS setup utility. User Password Use this option to set a password for users with limited access to the BIOS setup utility. BIOS Setup Utility...

  • Page 75: Save & Exit

    cPCI-6620 7.7 Save & Exit Select the Save & Exit tab from the setup screen to enter the Save & Exit setup screen. You can display a Save & Exit BIOS setup option by highlighting it using the < Arrow > keys. The Save & Exit BIOS setup screen is shown below.
  • Page 76 Save Changes Save changes made so far to any of the setup options. Discard Changes Discard changes made so far to any of the setup options. Restore Defaults Restore/Load Defaults values for all the setup options. Save as User Defaults Save changes made so far as User Defaults.

  • Page 77: Important Safety Instructions

    cPCI-6620 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment.
  • Page 78 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...

  • Page 79: Getting Service
