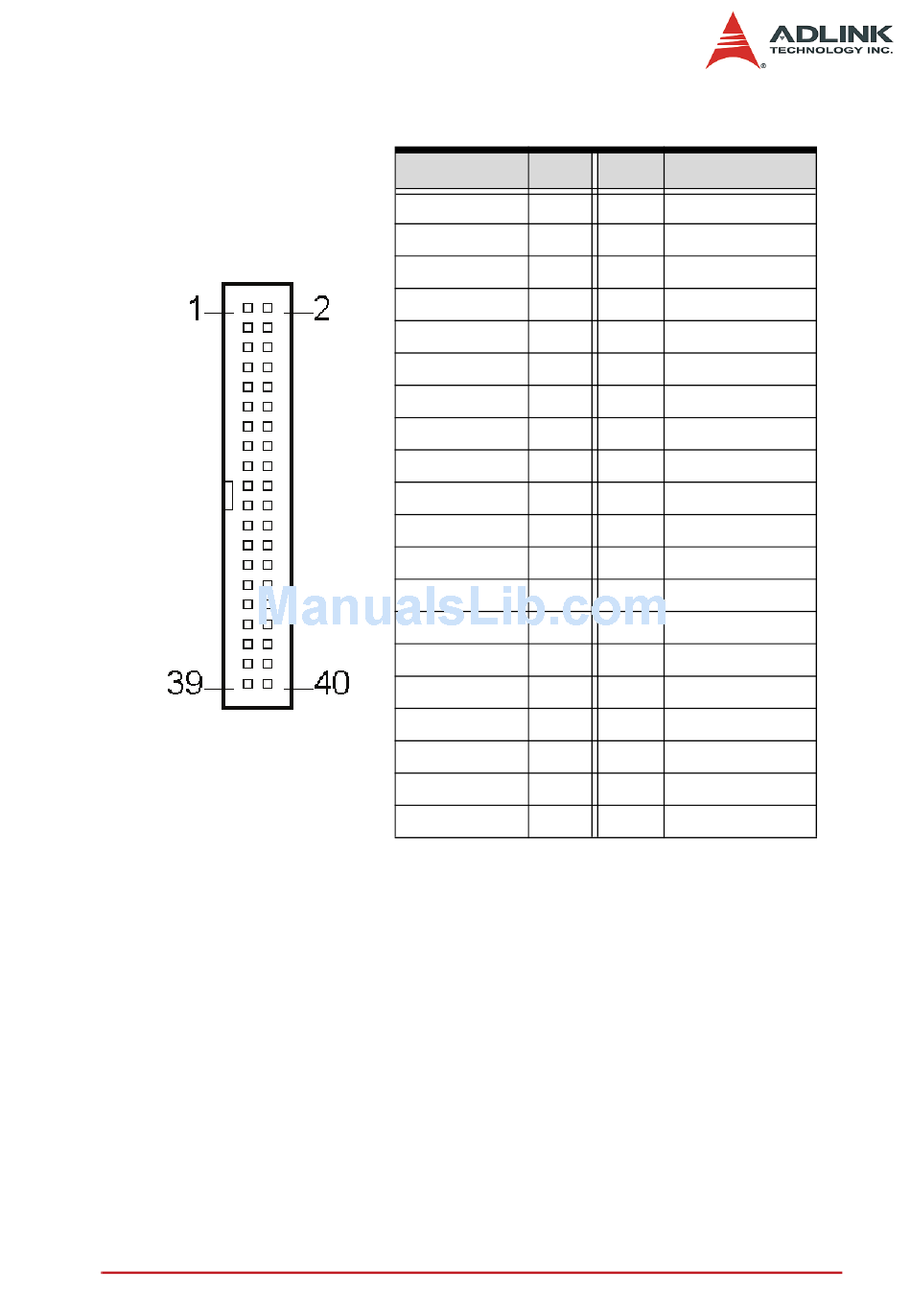

40-pin IDE Port

Table 2-14: 40-pin Primary and Secondary IDE channels on the RTM

Jumpers and Connectors
Signal Pin
RESET- 1
DD7 3
DD6 5
DD5 7
DD4 9
DD3 11
DD2 13
DD1 15
DD0 17
Ground 19
DMARQ 21
DIOW- 23
DIOR- 25
IORDY 27
DMACK- 29
INTRQ 31
DA1 33
DA0 35
CS0- 37
DASP- 39
Pin Signal
2 Ground
4 DD8
6 DD9
8 DD10
10 DD11
12 DD12
14 DD13
16 DD14
18 DD15
20 +5V (for DOM)
22 Ground
24 Ground
26 Ground
28 CSEL
30 Ground
32 reserved
34 PDIAG-
36 DA2
38 CS1-
40 Ground
