4.3

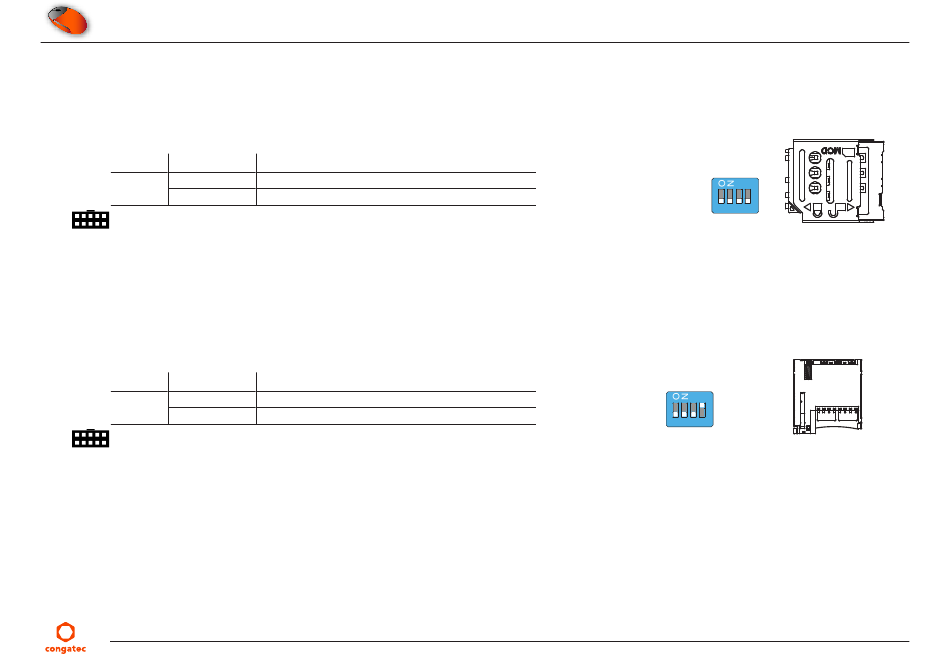

SIM Card Slot
The conga-SMC1 features a micro-SIM card slot on connector X11. The slot is connected to the UIM interface of the mPCIe slot by default. To
route the UIM signals from the mPCIe slot to M.2 type B socket, use switch 3 of DIP SW6.
Table 10
SW6.3 - UIM Route Configuration
Switch
Configuration Description
SW6.3
OFF
ON
Connector Type
X11: Micro-SIM Card
4.4
Micro-SD Card Slot
The conga-SMC1 features a micro-SD card slot on connector X23. Use switch 4 of DIP SW6 to control the SD card write protection.
Table 11
SW6.4 - SD Card Write Protection
Switch
Configuration Description
SW6.4
OFF
ON
Connector Type
X23: Micro-SD card
Copyright © 2020 congatec AG
Route SIM card signals from mPCIe slot (default)
Route SIM card signals from M.2 key B socket
Enable SD card write protection
Disable SD card write protection (default)
SW6.4
1 2 3 4
SMC1m10
X11
SW6.3
1 2 3 4
X23
26/50
