Install the Server (4-Post, 19-Inch Sliding Rails With CMA Rack Kit)

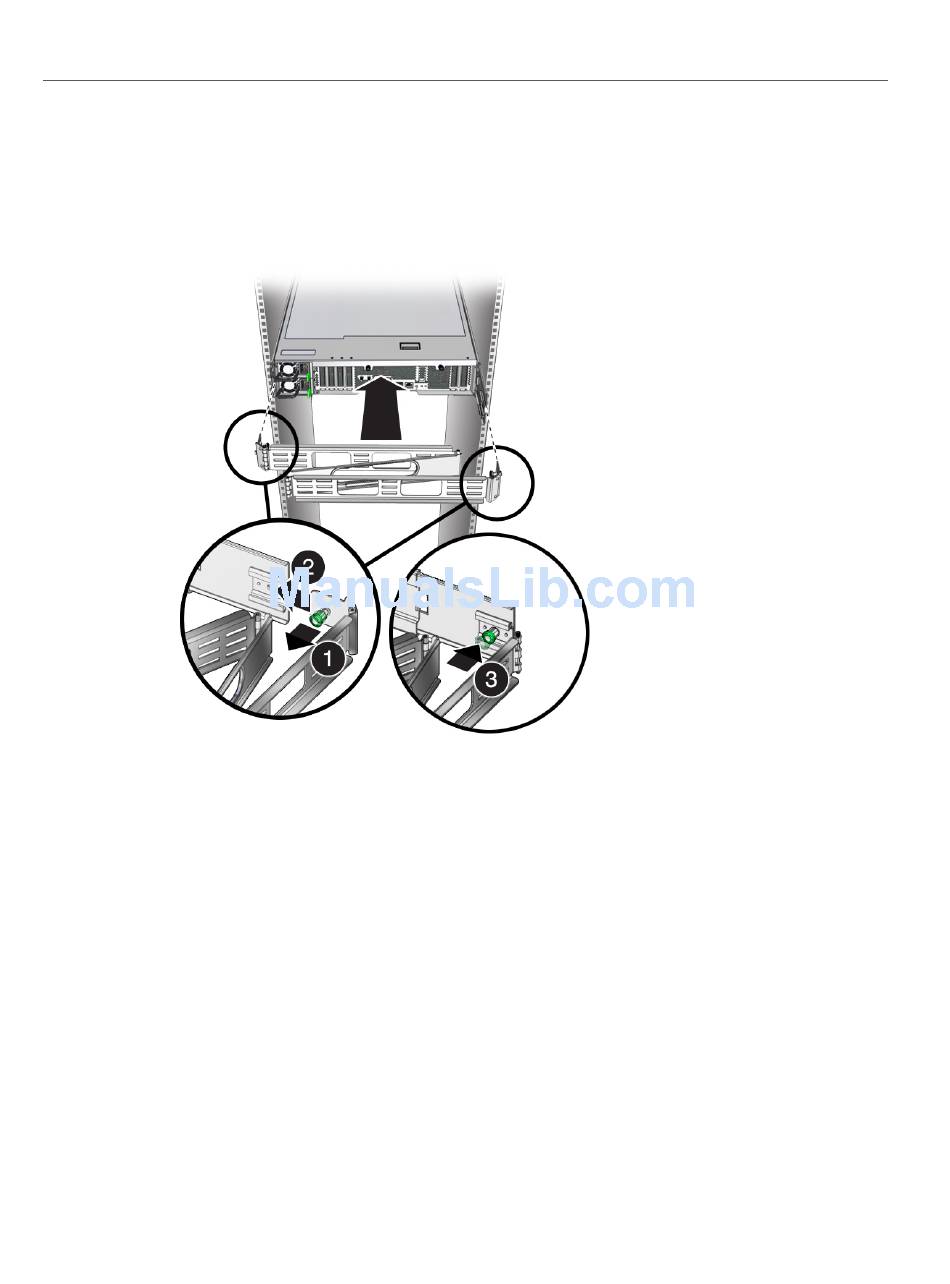

The green, spring-loaded handles should point inward. Pull the green handles out and release it
when the holes are aligned. The left CMA flange fits into key-hole notches on the end of the left
glide rail.
18.
Extend the server to the service position to ensure that the CMA expands
properly.
Installing the Server
49
