Front Panel Components (Installation)

Front Panel Components (Installation)

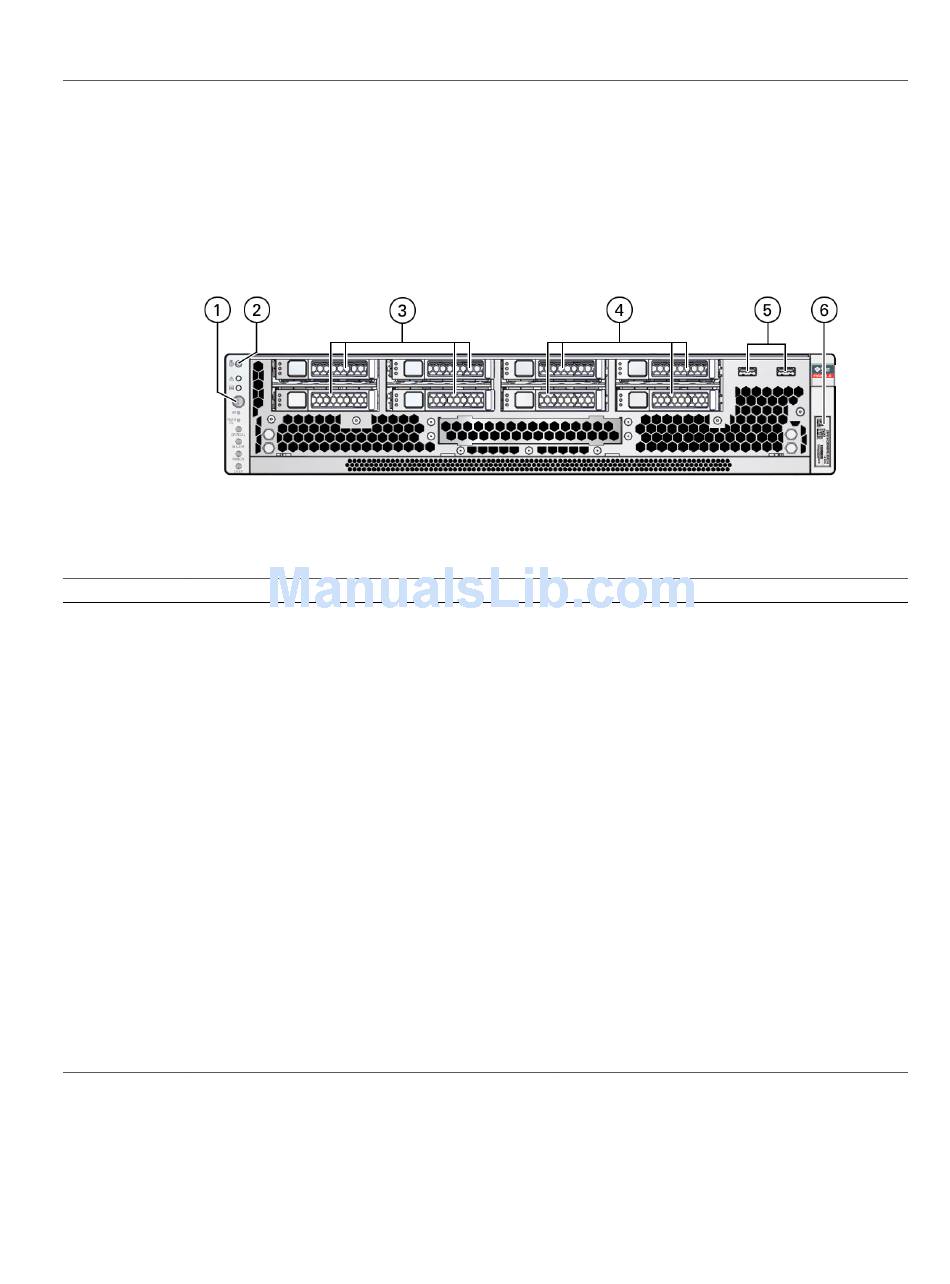

No. Description
1 Power button
Status indicators, top to bottom:
■ Locator LED and button
■ Service Required LED
■ System OK LED
■ Power button
■ Rear PS fault LED
Telco alarm indicators:
■ Critical LED
■ Major LED
■ Minor LED
■ User LED
2 Locate button
3 and 4 Eight SAS drive slots, of which four can be used as NMVe
slots
5 Two USB 2.0 ports
6 Serial number and manufacturing information
14 Netra SPARC S7-2 Server Installation Guide • January 2017
Links
"Powering On the Server for the First
Time" on page 71
"Interpreting LEDs" in Netra SPARC S7-2 Server
Service Manual
"Rear Panel LEDs" in Netra SPARC S7-2 Server
Service Manual
"Servicing SAS Drives" in Netra SPARC S7-2 Server
Service Manual
"USB Ports" on page 69
"Find the Server Serial Number" in Netra SPARC S7-2
Server Service Manual
