Install the Server (4-Post, 19-Inch Sliding Rails With CMA Rack Kit)
Use two cage nuts and two M6 shoulder screws for each threaded screw plate.
11.

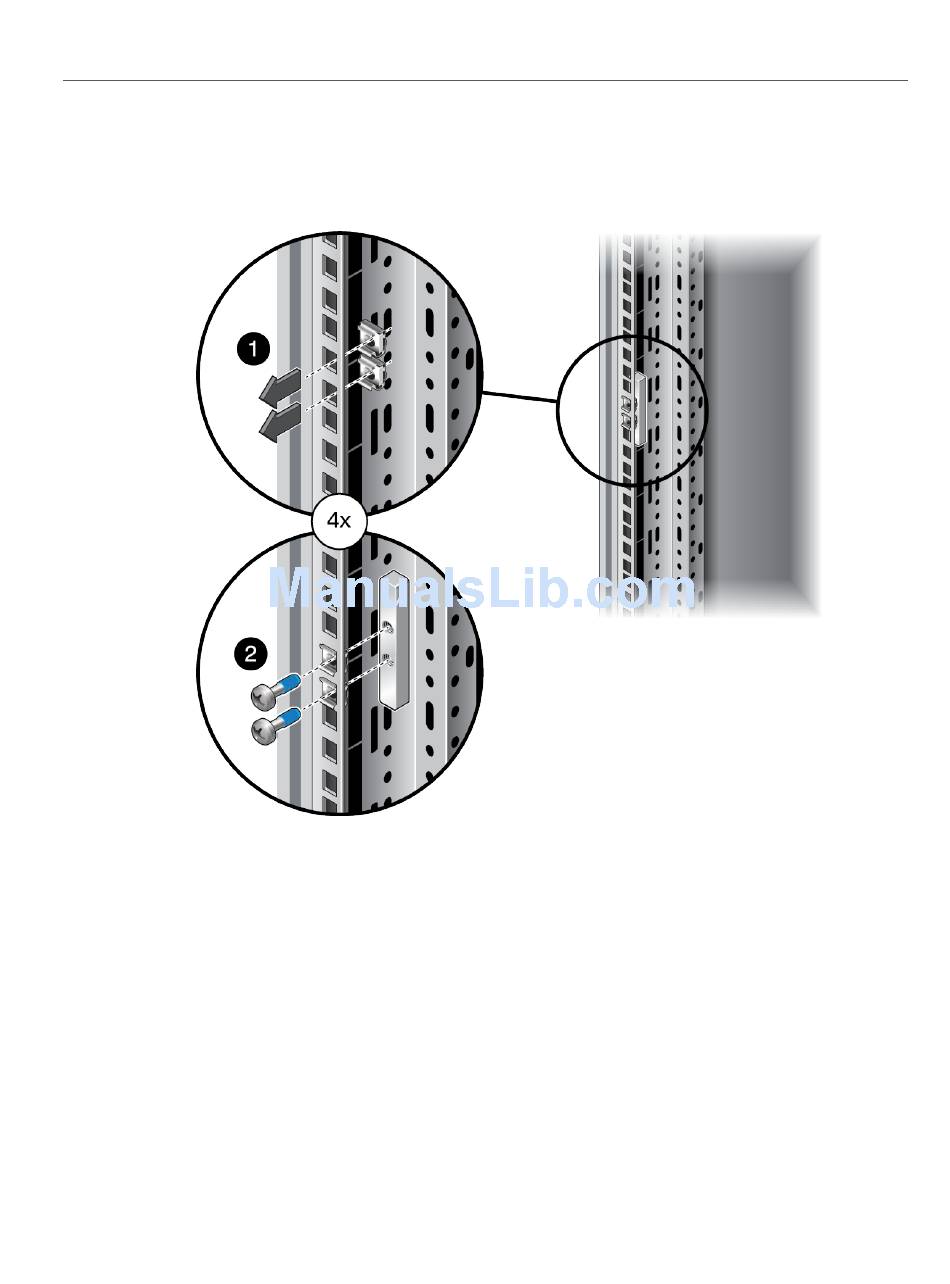

Install two cage nuts, used to secure the server into the rack, into the two front
posts.
Align the cage nuts with the screw holes in the hardmount bracket (upper and lower). The
security screws go through each of the hardmount brackets and into the cage nuts mounted to
the rails.
46
Netra SPARC S7-2 Server Installation Guide • January 2017
