Information item 2
Is there a DNS server in use?
If there is a DNS server in use, find out the following.
• Primary DNS server address
• Secondary DNS server address
Information item 3
Is there a proxy server?
If there is a proxy server in use, find out the following.
• Proxy server address
• Port No. for proxy server
Information item 4
Is proxy server authentication required?
If proxy server authentication is required, find out the following.
• User name and password required for proxy authentication

■ Network settings

Based on the results of the information obtained in (2) Advance preparations, make the iR device network related settings in
accordance with the following procedures.

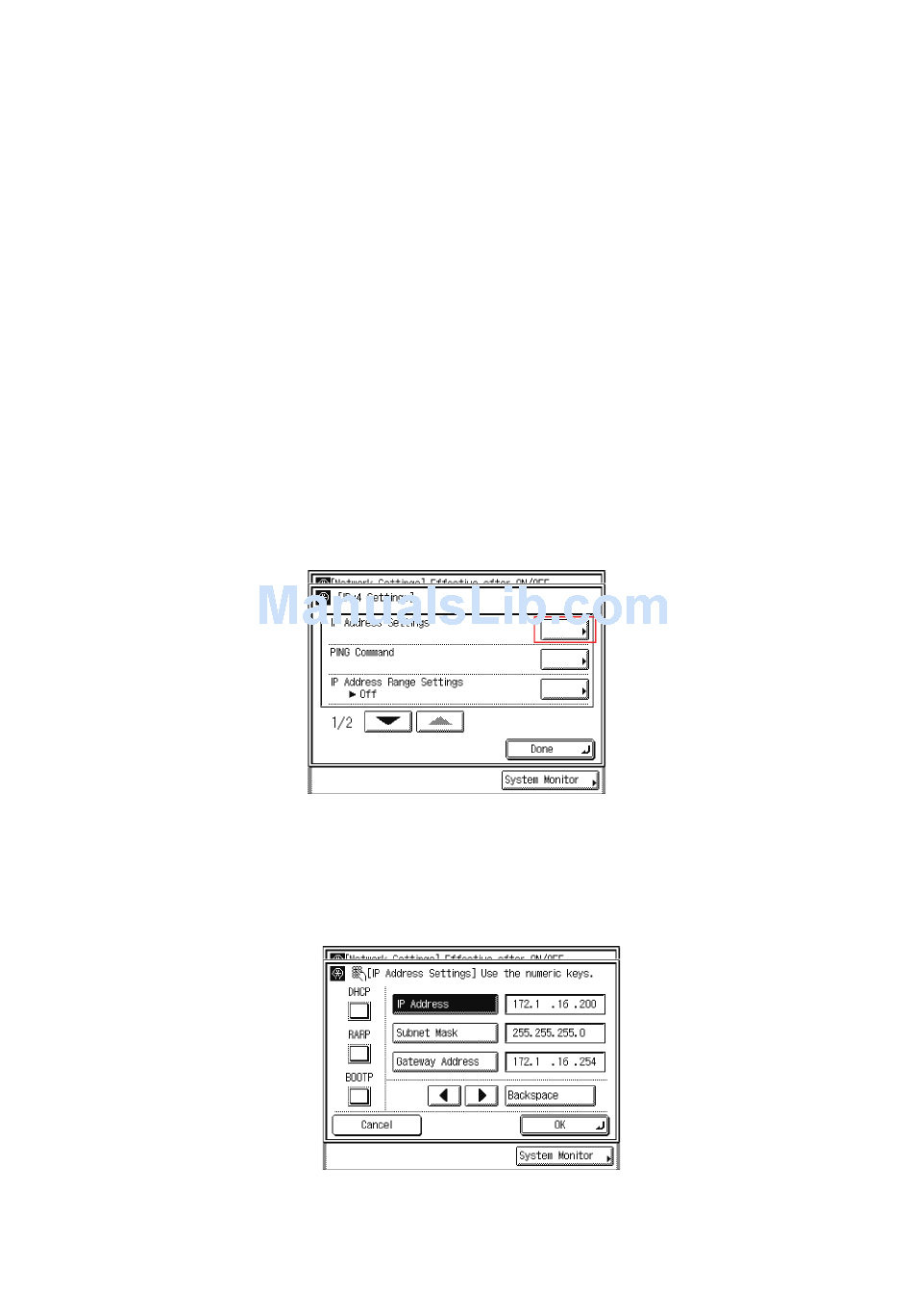

● IP Address Settings
a. Move on to Settings/ Registration > System Settings > Network Settings > TCP/IP Settings > IPv4 Settings > IP Address
Settings.
b. Set the IP address, based on the information obtained under (2) Advance preparations, Information item 1, described above.
• For automatic acquisition, select from [DHCP], [RARP], [BOOTP].
• For manual setting, set the following by numeric keys.
• IP Address Example) 172. 001. 016. 200
• Subnet Mask Example) 255. 255. 255. 0
• Gateway Address Example) 172. 001. 016. 254
c. Press [OK].
d. Press [Done].
