Chapter 4
Display addon PCI/PCIE at POST
DAPP Enabled [Disabled; Enabled]
CPU PPM Configuration
EIST (Intel SpeedStep) [Disabled; Enabled]
Turbo Mode [Disabled; Enabled]
Power Consumption [XXX]
CPU C3 Report [Disabled; Enabled]
CPU C6 Report [Disabled; Enabled]
CPU C7 Report [Disabled; Enabled]

Chipset BIOS Setup Screen

Main
Advanced
PCH-IO Configuration
System Agent (SA) Configuration
Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.
PCH-IO Configuration
Intel PCH RC Version
Intel PCH SKU Name
Intel PCH Rev ID
46
Aptio Setup Utility - Copyright (C) 20XX American Megatrends, Inc.
Chipset
Boot

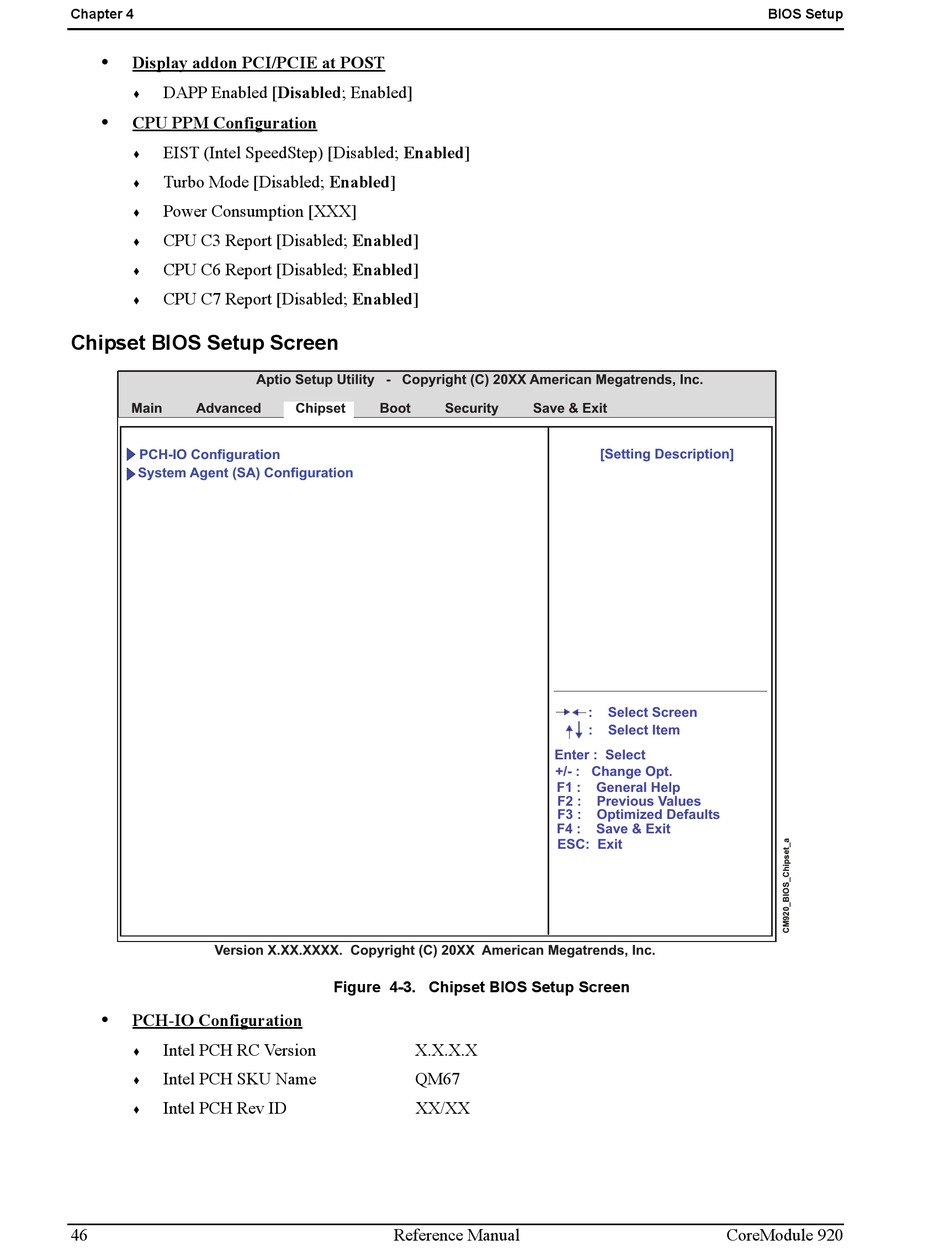

Figure 4-3. Chipset BIOS Setup Screen

X.X.X.X
QM67
XX/XX
Reference Manual
Security
Save & Exit
[Setting Description]
:
Select Screen
:
Select Item
Enter : Select
+/- : Change Opt.
F1 :
General Help
F2 :
Previous Values
F3 :
Optimized Defaults
F4 :
Save & Exit
ESC: Exit
BIOS Setup
CoreModule 920
