Chapter 4
CSM parameters

• Launch CSM [Always; Never]
• Boot option filter [UEFI and Legacy; Legacy only; UEFI only]
• Launch PXE OpROM policy [Do not launch; UEFI only; Legacy only]
• Launch Storage OpROM policy [Do not launch; UEFI only; Legacy only]
• Launch Video OpROM policy [Do not launch; UEFI only; Legacy only]
• Other PCI device ROM priority [UEFI only; Legacy OpROM]

Security BIOS Setup Screen

Aptio Setup Utility - Copyright (C) 20XX American Megatrends, Inc.
Main Advanced
Password Description
If ONLY the Administrator's password is set,
then this only limits access to Setup and is
only asked for when entering Setup.
If ONLY the User's password is set, then this
is a power on password and must be entered to
boot or enter Setup. In Setup the User will
have Administrator rights.
The password length must be
in the following rang:
Minimum length
Maximum length
Administrator Password
User Password
HDD Security Configuration:
HDD0: GLS85LS1008P
Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.
•
Password Description
Administrator Password [Create New Password]

User Password [Create New Password]

HDD Security Configuration:

50
Chipset Boot Security
3
20

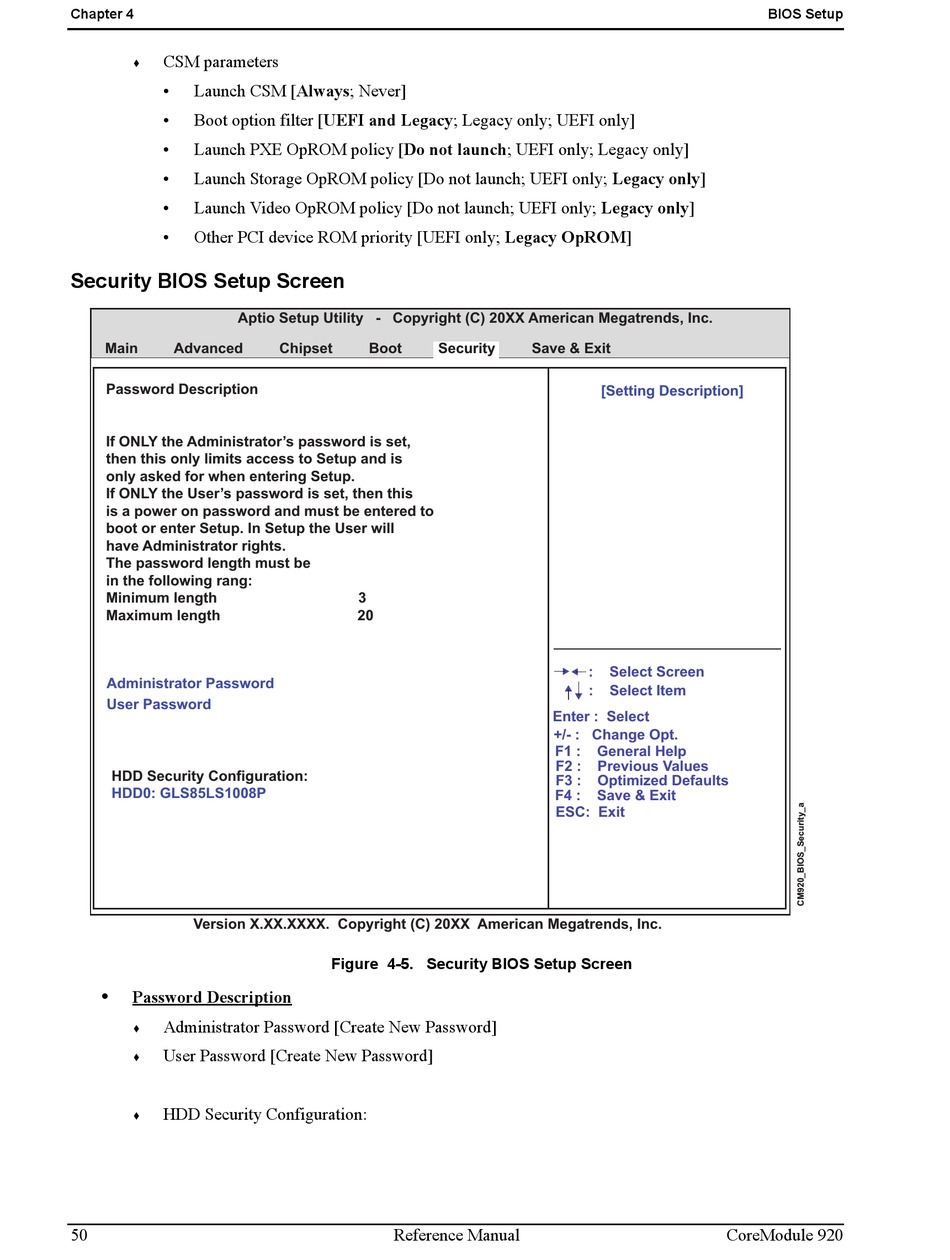

Figure 4-5. Security BIOS Setup Screen

Reference Manual
Save & Exit
[Setting Description]
: Select Screen
: Select Item
Enter : Select
+/- : Change Opt.
F1 : General Help
F2 : Previous Values
F3 : Optimized Defaults
F4 : Save & Exit
ESC: Exit
BIOS Setup
CoreModule 920
