Boot Bios Setup Screen; Figure 4-4. Boot Bios Setup Screen - ADLINK Technology CoreModule 920 Reference Manual

Chapter 4

Boot BIOS Setup Screen

Aptio Setup Utility - Copyright (C) 20XX Amreican Megatrends, Inc.
Main Advanced
Boot Configuration
Setup Prompt Timeout
Bootup NumLock State
Quiet Boot
Fast Boot
CSM16 Module Version
GateA20 Active
Option ROM Messages
INT19 Trap Response
Driver Option Priorities
Boot Option Priorities
Boot Option #1
Hard Drive BBS Priorities
CMS parameters
Version X.XX.XXXX. Copyright (C) 20XX American Megatrends, Inc.
•
Boot Configuration
Setup Prompt Timeout

Bootup NumLock State [On; Off]

Quiet Boot [Disabled; Enabled]

Fast Boot [Disabled; Enabled]

•
CSM16 Module Version XX.XX
Gate A20 Active [Upon Request; Always]

Option ROM Messages [Force BIOS; Keep Current]

INT19 Trap Response [Immediate; Postponed]

•
Driver Option Priorities
•
Boot Option Priorities
Boot Option #1 [SATA PS: GLS85LS1008P CS XXGB; Disabled]

Hard Drive BBS Priorities

• Boot Option #1 [P1-GLS85LS1032A CS 32GBN A101C0; Disabled]
CoreModule 920
Chipset Boot Security
1
[On]
[Disabled]
[Disabled]
XX.XX
[Upon Request]
[Force BIOS]
[Immediate]
[SATA PS: GLS85LS10. . .]

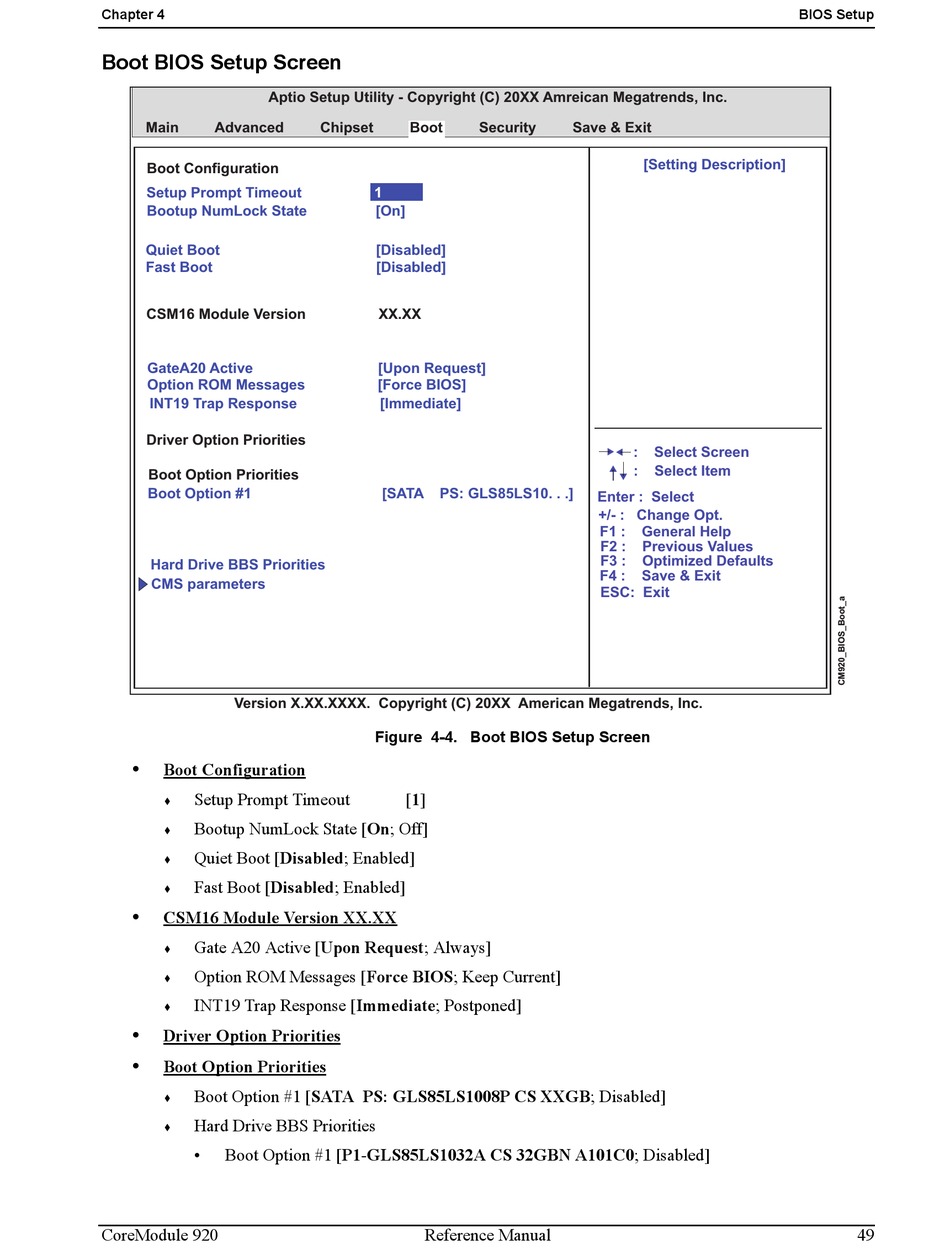

Figure 4-4. Boot BIOS Setup Screen

[1]
Reference Manual
Save & Exit
[Setting Description]
: Select Screen
: Select Item
Enter : Select
+/- : Change Opt.
F1 : General Help
F2 : Previous Values
F3 : Optimized Defaults
F4 : Save & Exit
ESC: Exit
