Bios Chipset Setup Screen; Figure 4-6. Bios Chipset Setup Screen - ADLINK Technology CoreModule 430 Reference Manual

Chapter 4

BIOS Chipset Setup Screen

Main Advanced
Advance Chipset Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
NorthBridge Configuration
SouthBridge Configuration
v02.xx (C) Copyright 1985-20xx, American Megatrends, Inc.
NorthBridge Configuration
•
NorthBridge Chipset Configuration
DRAM Timing Setting By – [BIOS]

CPU Speed Setting By – [Divide By 1;

SouthBridge Configuration
•
SouthBridge Chipset Configuration
P.O.S.T. Forward To [Disabled; COM1]
ISA Configuration

• ISA Clock – [8.3MHz; 16.6MHz]
• ISA 16bits I/O wait-state – [1 clock;
42
BIOS Setup Utility
PCIPnP Boot Security

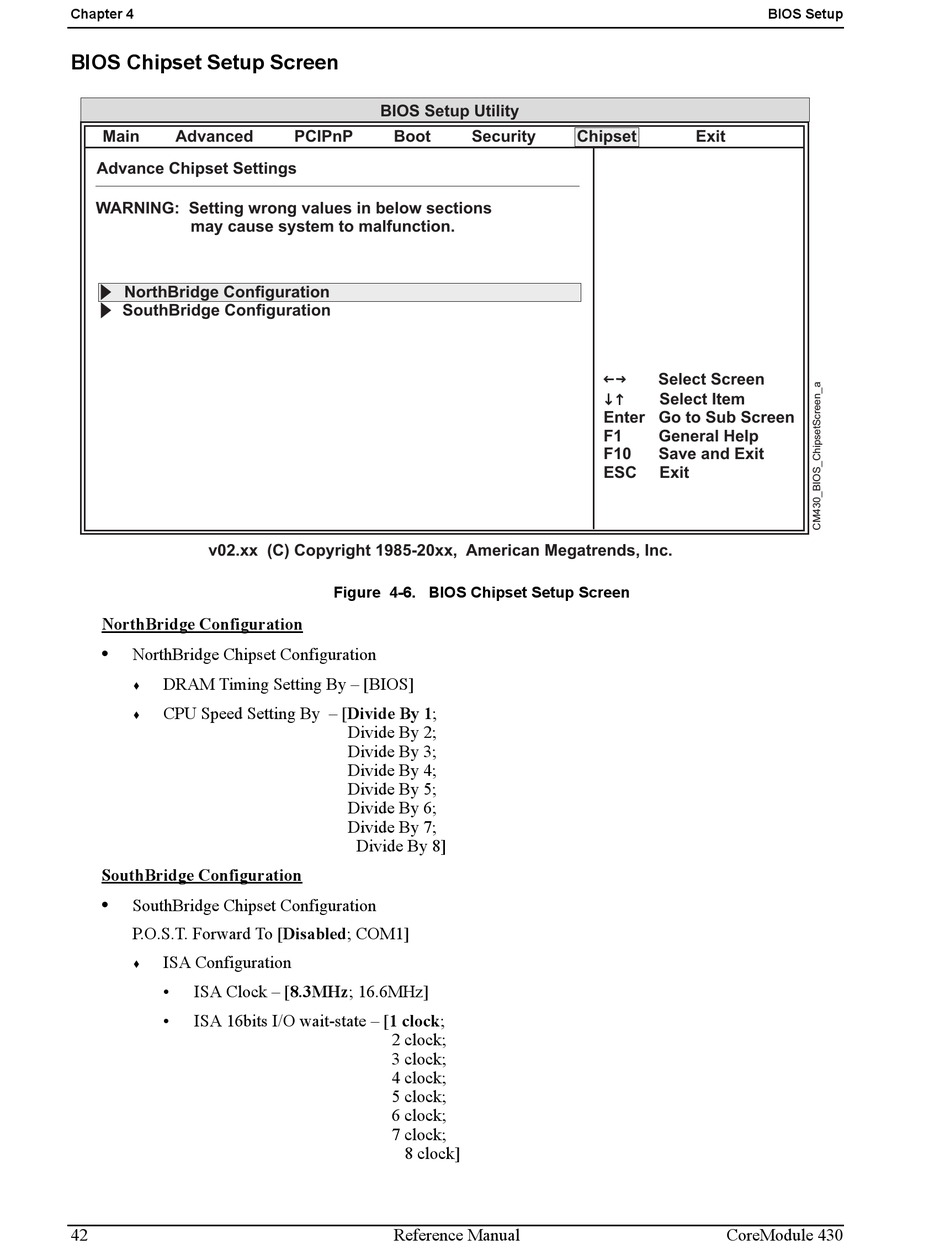

Figure 4-6. BIOS Chipset Setup Screen

Divide By 2;
Divide By 3;
Divide By 4;
Divide By 5;
Divide By 6;
Divide By 7;
Divide By 8]
2 clock;
3 clock;
4 clock;
5 clock;
6 clock;
7 clock;
8 clock]
Reference Manual
Chipset Exit
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
CoreModule 430
BIOS Setup
