Chapter 2
Key:
U1 - CPU
U3 - DDR3 SDRAM
U5 - DDR3 SDRAM
U8 - DDR3 SDRAM
U10 - DDR3 SDRAM
U11 - DDR3 SDRAM (ECC)
U12 - PCH
U14 - Gigabit Ethernet PHY Transceiver
U15 - Gigabit Ethernet MAC & PHY Controller
U16 - Gigabit Ethernet EEPROM
U17 - PCIe to PCI Bridge
U48 - HDMI Level Shifter
Key:
T1 - Gigabit Ethernet 1 Transformer
T2 - Gigabit Ethernet 2 Transformer
U4 - DDR3 SDRAM
U6 - DDR3 SDRAM
U7 - DDR3 SDRAM
U9 - DDR3 SDRAM
U18 - LPC to UART Controller
U20 - RS-232 Transceiver - COM1
U21 - RS-232 Transceiver - COM2
U22 - SSD (Solid State Drive)
U27 - Hardware Monitor
U28 - BIOS
U66 - EEPROM, DDR3 SPD
U67 - EEPROM, PCIe to PCI Bridge
J6 - PCIe/104
(See Header and Connector table)
SW1 - PCI Express x16 Configuration Switch
(See Header and Connector table)
CoreModule 920
U14

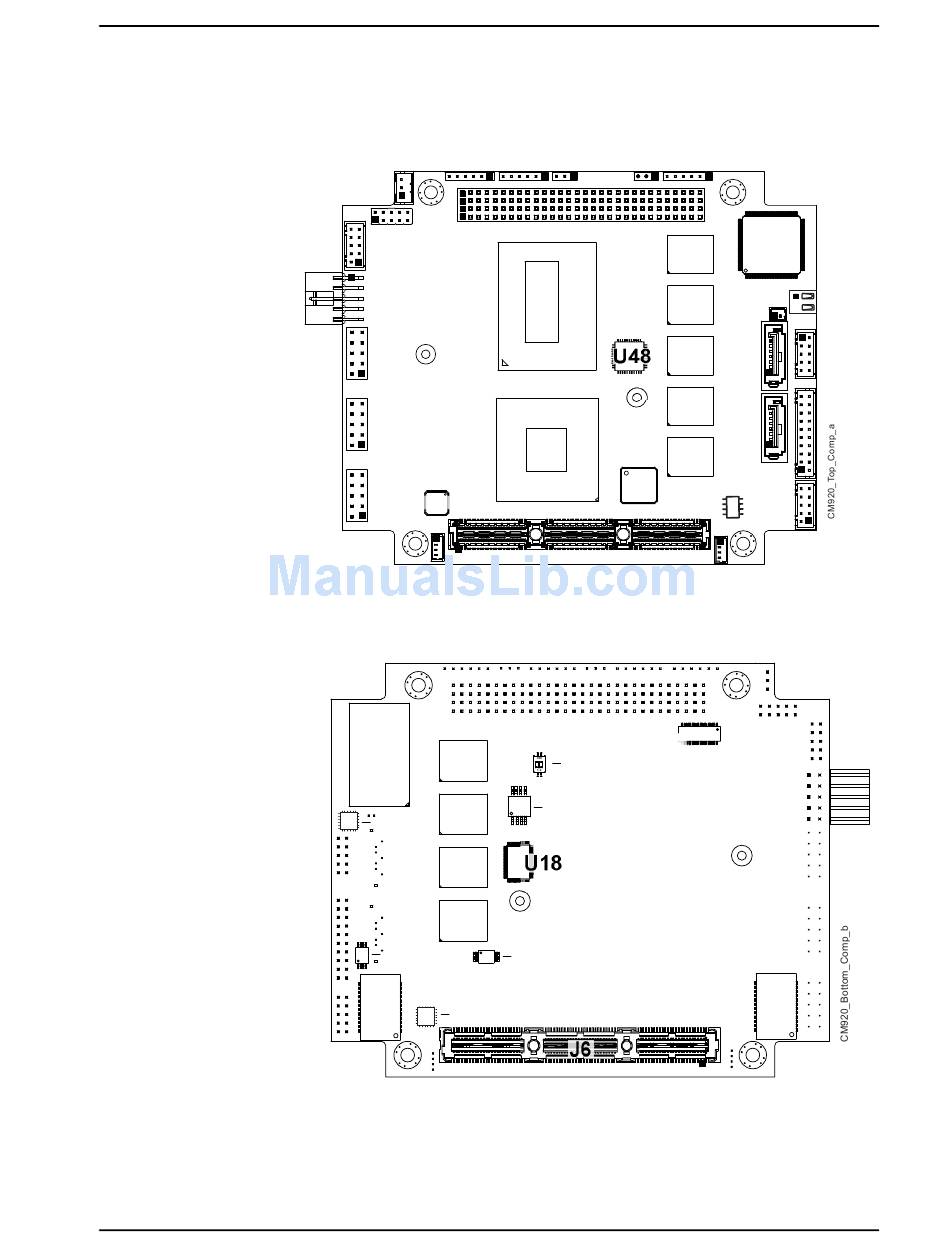

Figure 2-3. Component Locations (Top Side)

U22
U9
U7
U20
U6
U4
U67
T2
U21

Figure 2-4. Component Locations (Bottom Side)

Reference Manual
U10
U1
U8
U11
U48
U5
U12
U3
U15
U27
SW1
U28
U18
U66
J6
Product Overview
U17
U16
T1
13
