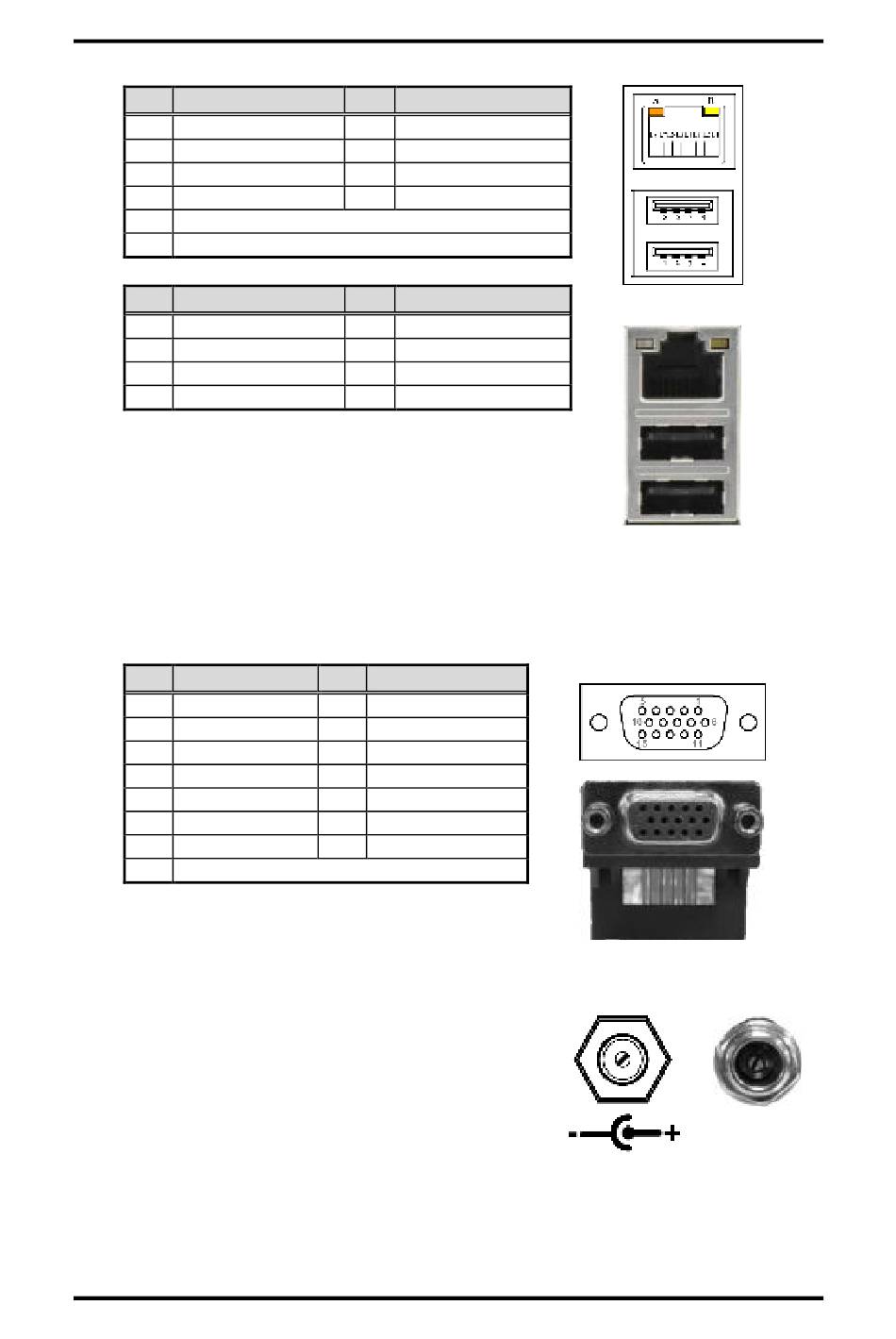

CN13 (for LAN2, USB 2.0 port 4 and 5):
Pin
LAN Signal
L1
MDI0+
L2
MDI0-
L3
MDI1+
L4
MDI2+
A
100 LAN LED (Green) / 1000 LAN LED (Orange)
B
Active LED (Yellow)
Pin
USB Signal
1
USB VCC (+5V level)
2
USB #4_D-
3
USB #4_D+
4
GND
2.4.11
VGA Connector (CN14)
This is a 15-pin D-Sub connector which is commonly used for VGA display. This VGA
interface configuration can be configured via software utility.
Pin
Signal
1
Red
3
Blue
5
GND
7
GND
9
VCC
11
N.C.
13
Horizontal Sync
15
DDC CLK
2.4.12
DC Power Jack (CN16)
This is a DC power jack with lock. Firmly insert at
least 60W adapter into this connector. Loose
connection may cause system instability and make
sure all components/devices are properly installed
before connecting this power jack.
Board and Pin Assignments
Pin
LAN Signal
L5
MDI2-
L6
MDI1-
L7
MDI3+
L8
MDI3-
Pin
USB Signal
5
USB VCC (+5V level)
6
USB #5_D-
7
USB #5_D+
8
GND
Pin
Signal
2
Green
4
N.C.
6
DETECT
8
GND
10
GND
12
DDC DATA
14
Vertical Sync
NANO840/842 Nano-ITX Board
LAN
USB
19
