2.5.1

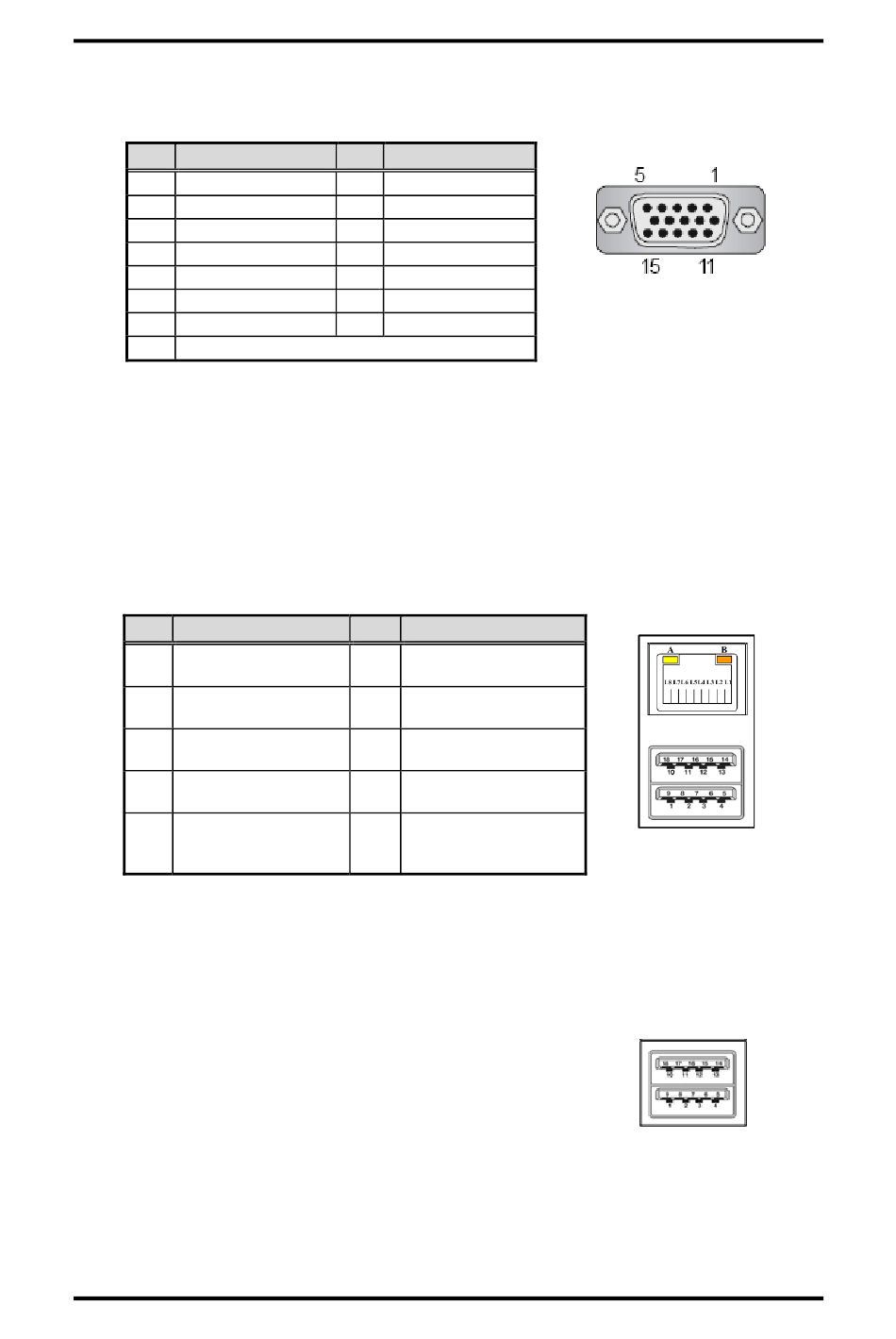

VGA Connector (VGA1)

The 15-pin D-Sub connector is for VGA display.
Pin Signal
1 Red
3 Blue
5 GND
7 GND
9 VCC
11 NC
13 Horizontal Sync
15 DDC CLK
2.5.2

LAN with IPMI and USB 3.1 Connectors (CN2)

The motherboard comes with one plug and play Ethernet interfaces (RJ-45) which
supports IPMI management, which is fully compliant with the IEEE 802.3 standard.
Connection can be established by plugging one end of the Ethernet cable into this RJ-45
connector and the other end to a 1000/100/10 Base-T hub.
The Universal Serial Bus compliant with USB 3.1 Gen1 (CN2) connectors on the rear I/O
are used for connecting USB peripherals such as a keyboard, mouse, scanner, etc.
Pin LAN Signal
Tx+ (Data
L1
transmission positive)
Rx+ (Data reception
L3
positive)
L5 RJ-1 (For 1000
Base-T only)
L7 RJ-1 (For 1000
Base-T only)
A 100 LAN LED (Green)
/ 1000 LAN LED
(Orange)
2.5.3

USB 3.1 Connectors (CN1)

The Universal Serial Bus compliant with USB 3.1 Gen1 (CN1) connectors on the rear I/O
are used for installing USB peripherals such as a keyboard, mouse, scanner, etc.
Board and Pin Assignments
IMB760 LGA4189 EATX Motherboard
Pin Signal
2 Green
4 NC
6 GND
8 GND
10 GND
12 DDC DATA
14 Vertical Sync
Pin LAN Signal
Tx- (Data transmission
L2
negative)
RJ-1 (For 1000 Base-T
L4
only)
L6 Rx- (Data reception
negative)
L8 RJ-1 (For 1000 Base-T
only)
B Active LED
LAN
USB
USB
11
