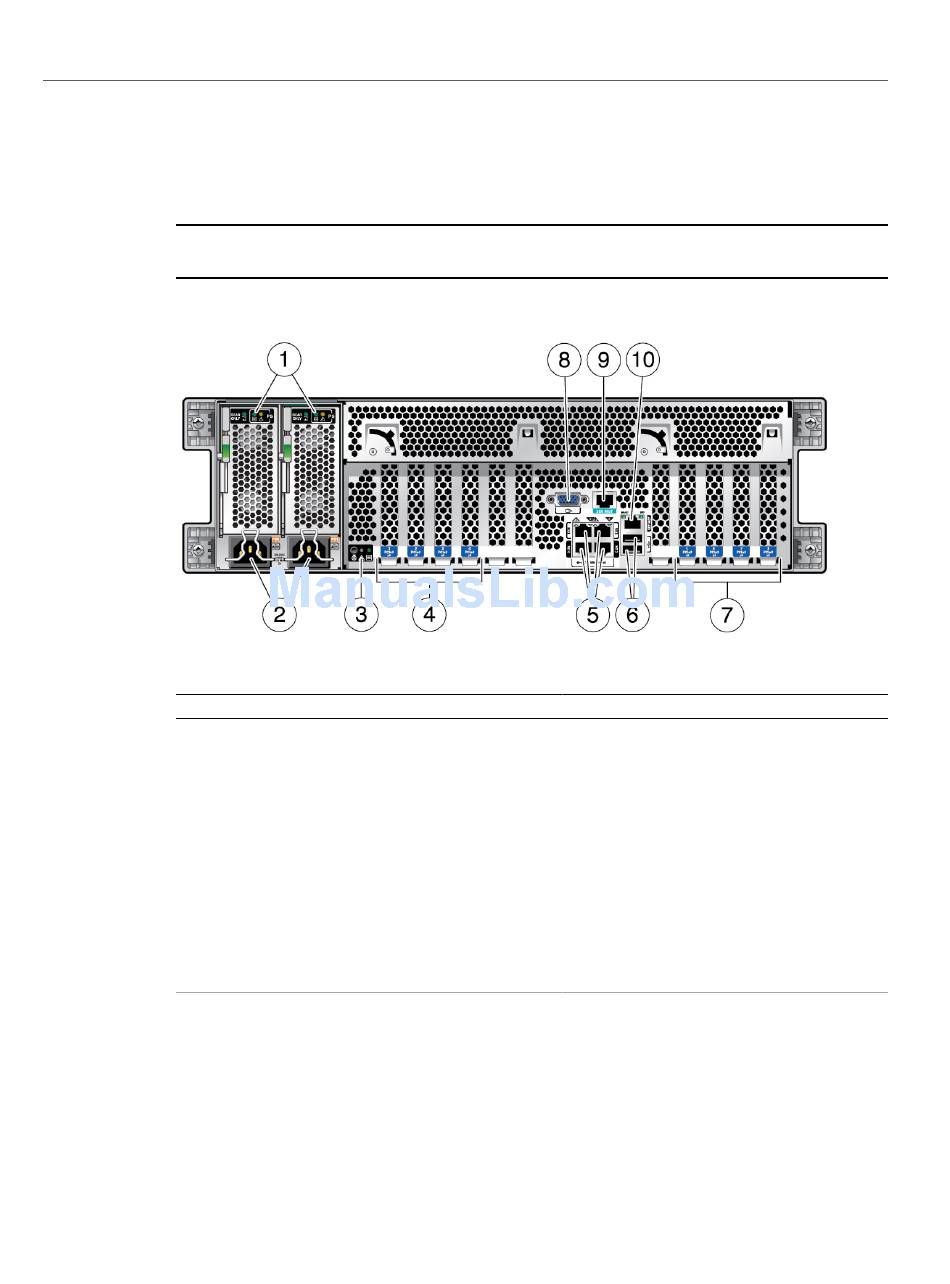

Rear Panel Components (Installation)

Note -
connect the power cords until all data cables have been connected.
No.
1
2
3
4
5
Related Information
"Front Panel Components (Installation)" on page 12
"Cabling Requirements" on page 41
"Install the CMA" on page 35
"Secure Cables to the CMA" on page 52
You must follow the proper sequence when connecting cables to the server. Do not
Description
Power supply unit 0 and 1 (from left to right) status
indicator LEDs:
■ Service Required (amber)
■ AC OK (green or amber)
Power supply unit 0 and 1 (from left to right) AC inlet
System status LEDs:
■ Locate LED/Locate button (white)
■ Attention (amber)
■ Power/OK (green)
PCIe slots 1–4
Network 100/1000/10000 ports: NET0–NET3
Rear Panel Components (Installation)
No.
Description
6
USB 3.0 connectors (2)
7
PCIe slots 5–8
8
HD-15 video connector
9
SP SER MGT RJ-45 serial port
10
SP NET MGT RJ-45 network port
Understanding the Server
13
