Skew Correction Mode 2

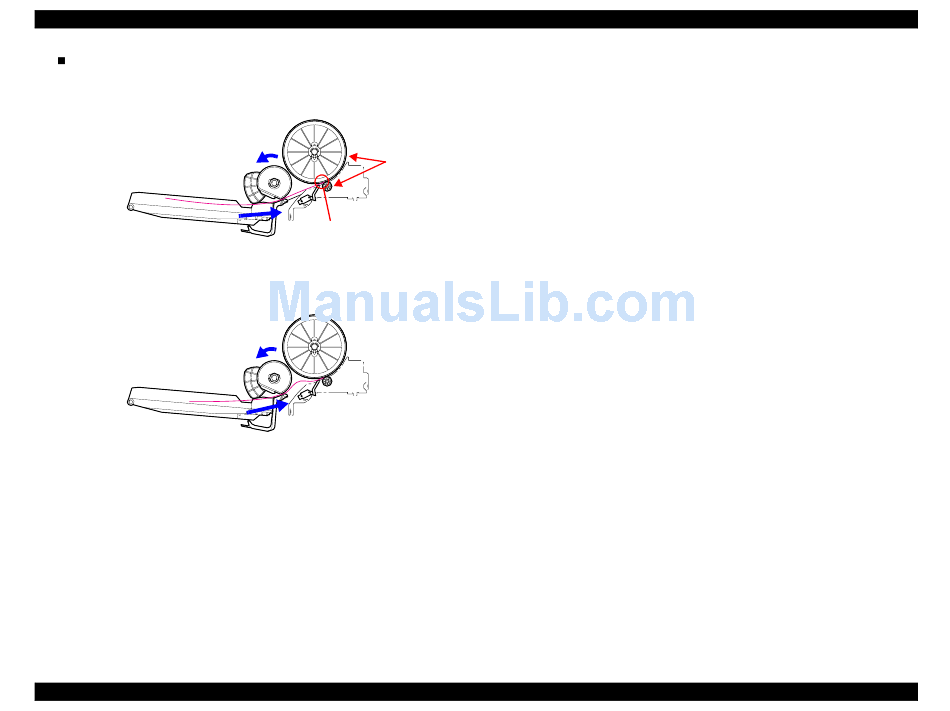

1. The paper hits against the Gate Roller and Sub Roller. The Gate
Roller and Sub Roller are stopped at this time.
2. Skew is corrected by the LD Roller pushing forward the unfed
paper.
4. After feeding the paper, the LD Roller rotates in the counterclockwise
direction and returns to the standby position.
5. The LD Roller in standby position then rotates in the clockwise direction by
the required step number to return paper remaining between the LD Roller
and Separation Pad to the tray. Then the roller returns to the standby
position again.
