IPNext 190 System Installation Guide
Specify an interface to which the console cable is connected in the following connect options.
Console cable is generally connected to RS-232C 9Pin Serial Port of PC. Choose the right port for user's network
environment. In here, 'COM1' is connected.

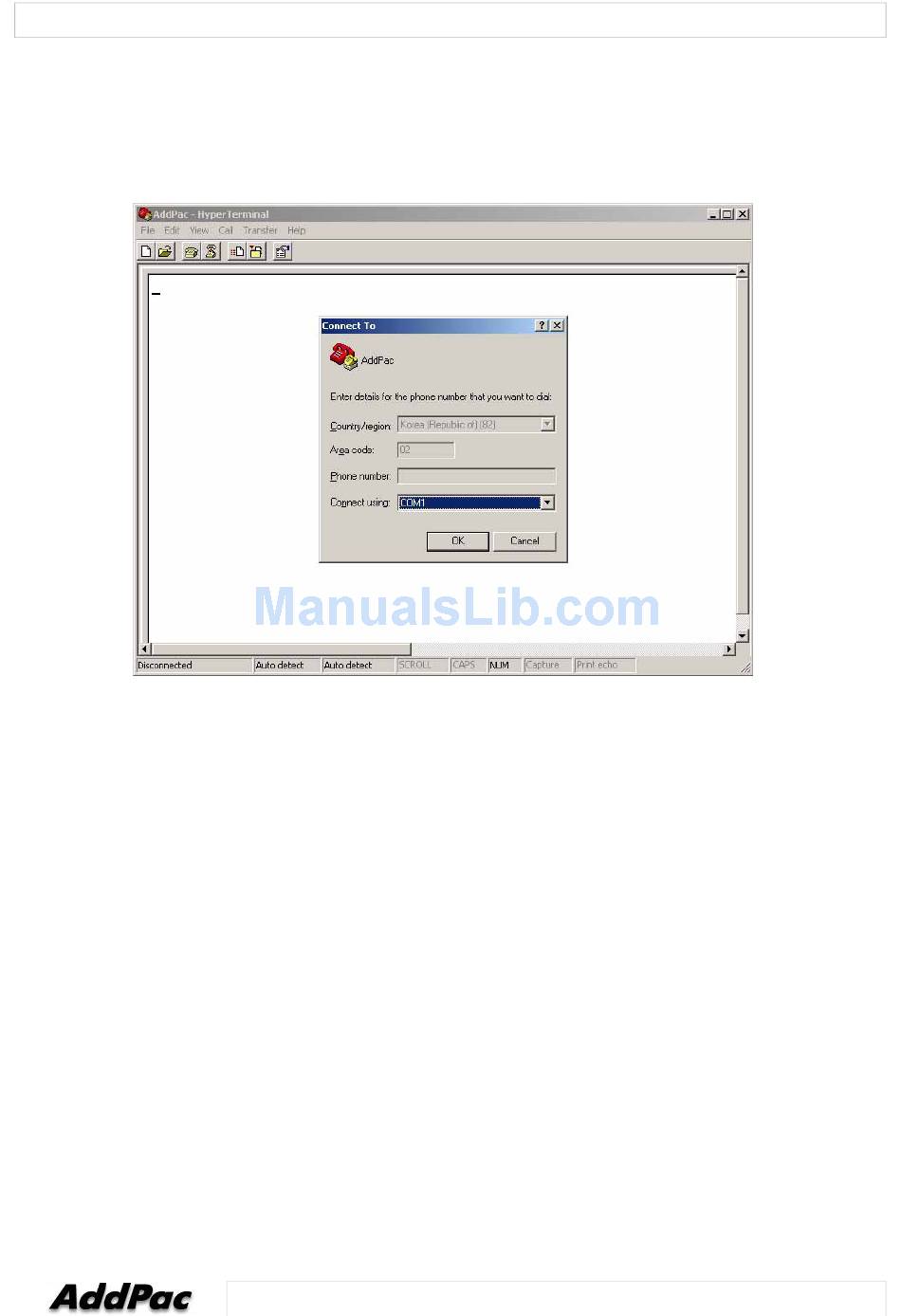

Figure 3-3 Settings for Connecting the Console Cable to Serial port

AddPac Technology Proprietary & Documentation
132 - 39
