IPNext 190 System Installation Guide
Connecting Ethernet
Use RJ-45 standard of UTP cable to connect to the equipment with WAN interface (router or ADSL/ Cable
Modem). To connect to the router or modem directly, use cross0over cable. For connection to a hub, use direct-
through cable.
Connect LAN0/LAN1 Ethernet Interface to the equipment, which is suitable to the user's environment, by using
RJ-45 connector.
For IPNext1000, LAN0/LAN1 use Giga-Ethernet.
WAN
(IP Network)

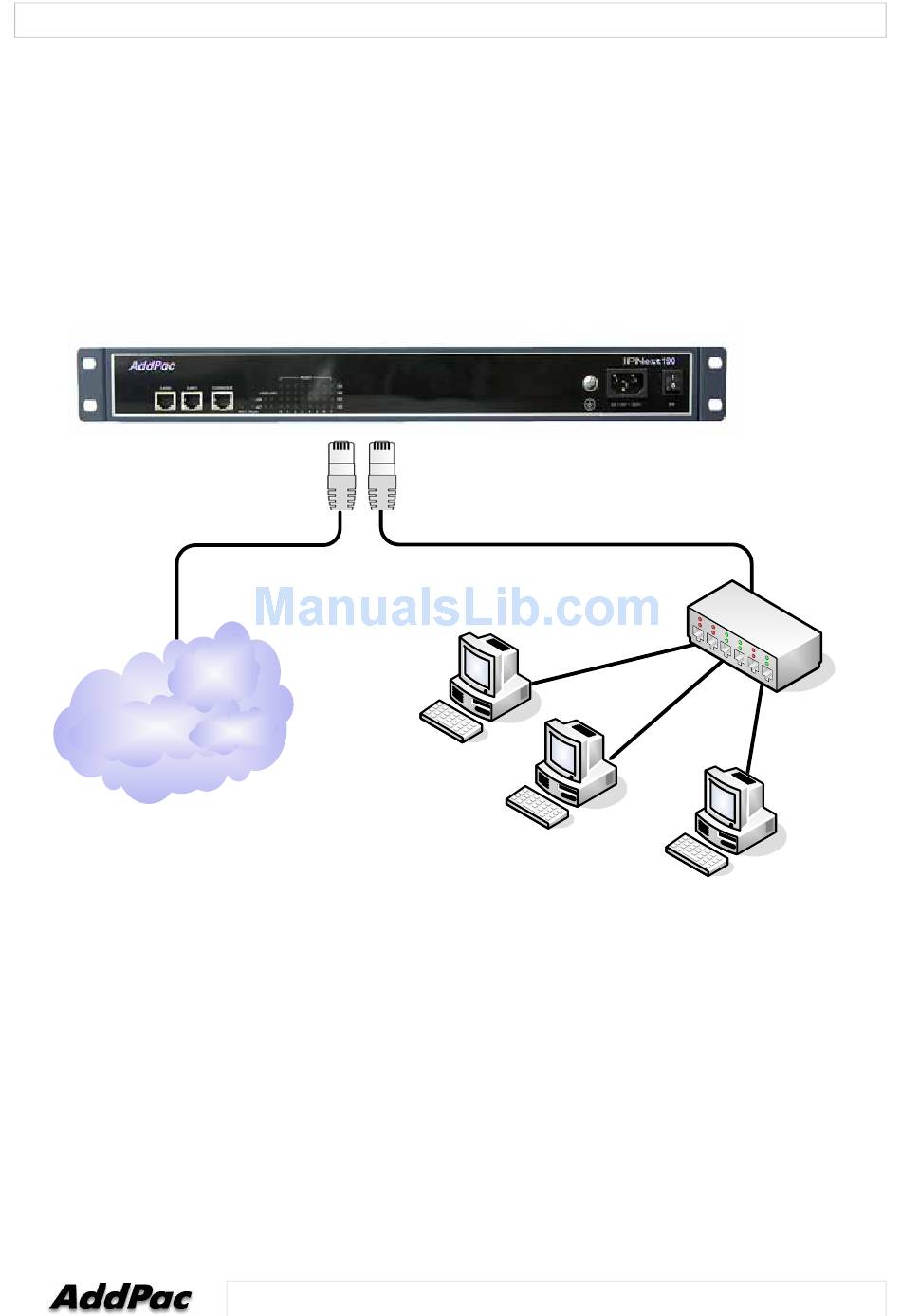

Figure 2-2 Connecting LAN0/LAN1
AddPac Technology Proprietary & Documentation
RJ45 to RJ45
UTP Cable
User PC
132 - 31
