IPNext 190 System Installation Guide

Input/Output Components

Components of the Front Panel

Table 1-4 Description for the Components of the Front Panel

No.
Component
(1)
RST
(2)
LAN 0
(3)
LAN 1
(4)
CONSOLE
(5)
RUN
(6)
LAN0/LAN1
LED
(7)
Voice Port
LED

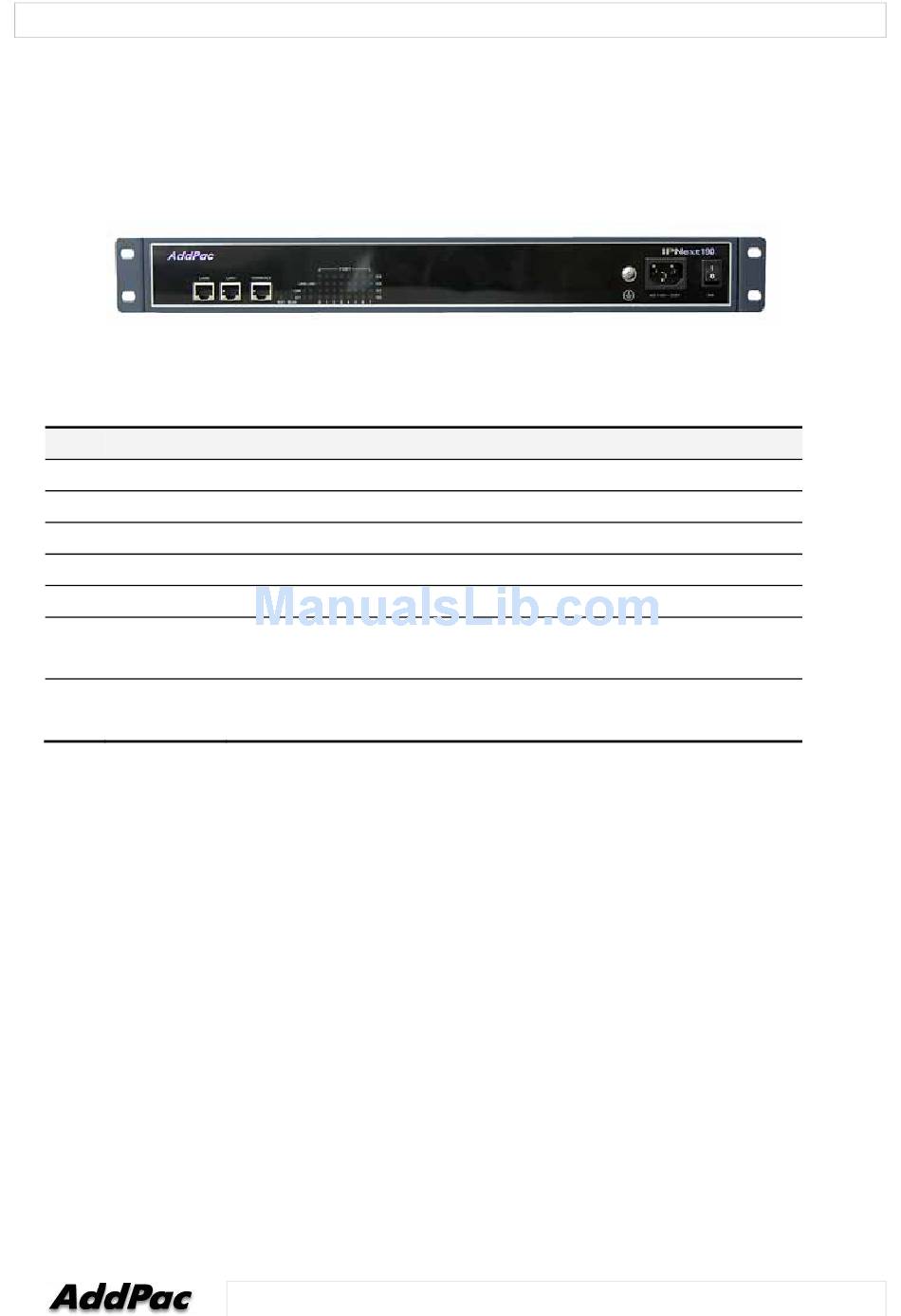

Figure 1-2 Front View

Indicating reboot of the system
Fast Ethernet Interface of 10/100Mbps for WAN (RJ45)
Fast Ethernet Interface of 10/100Mbps for LAN (RJ45)
The console interface for network management (RJ45)
Indicating the normal operation of the system (green)
LED for indicating the status of Link/Act LAN0/LAN1
(LINK – lighting in green, ACT- blinking in green)
LED for indicating the voice port status(green)
AddPac Technology Proprietary & Documentation
Description
132 - 23
