Pinout of E1/T1 Cable (RJ-45 to PBX)

The AddPac E1/T1 module can be connected by RJ-45 cable. As the pinout of RJ-45 shown
below, connect RX of the PBX to the pin 1 and 2 and TX to the number 3, 4.

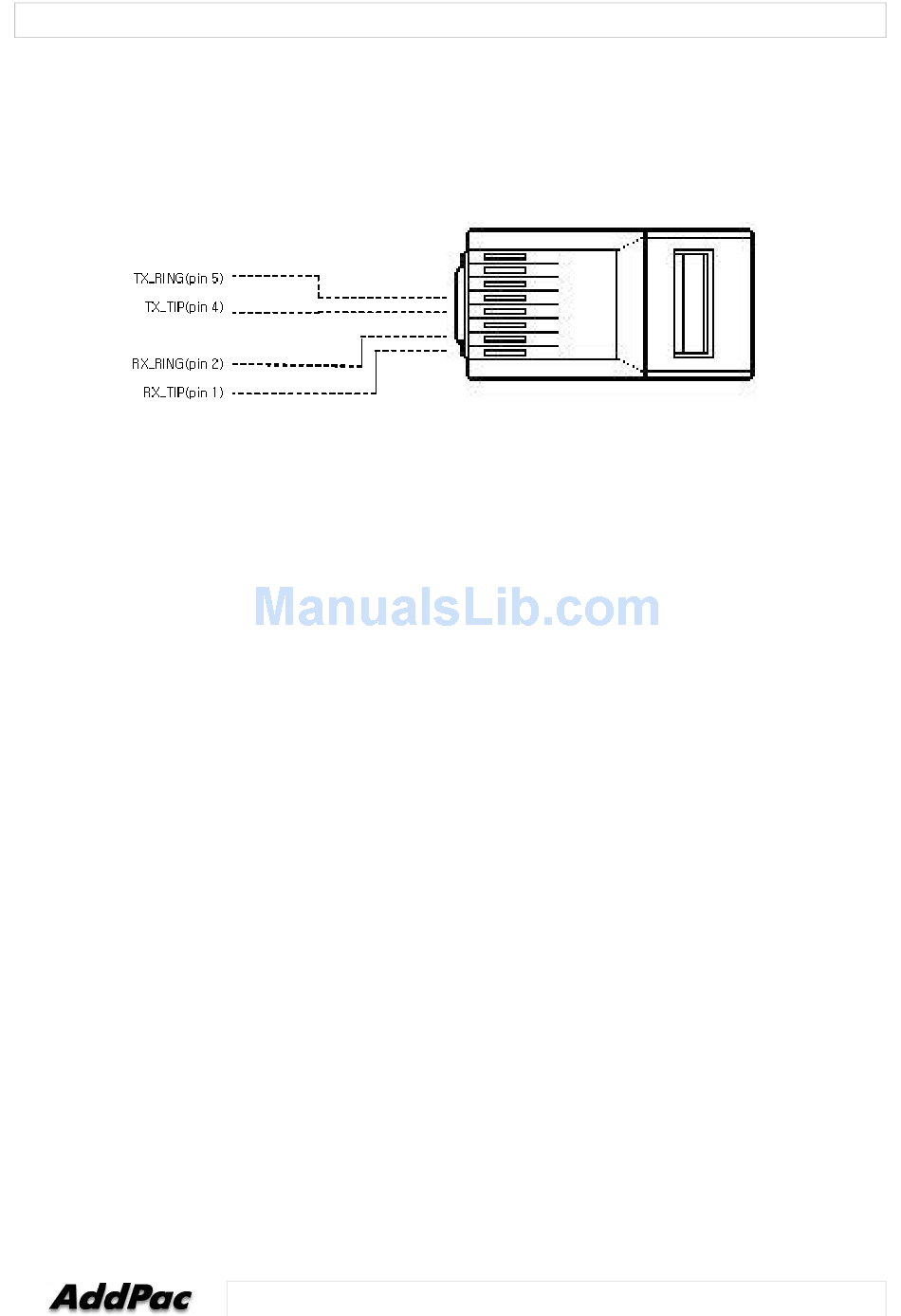

Figure 5-2 Digital E1/T1 RJ-45 Pinout
