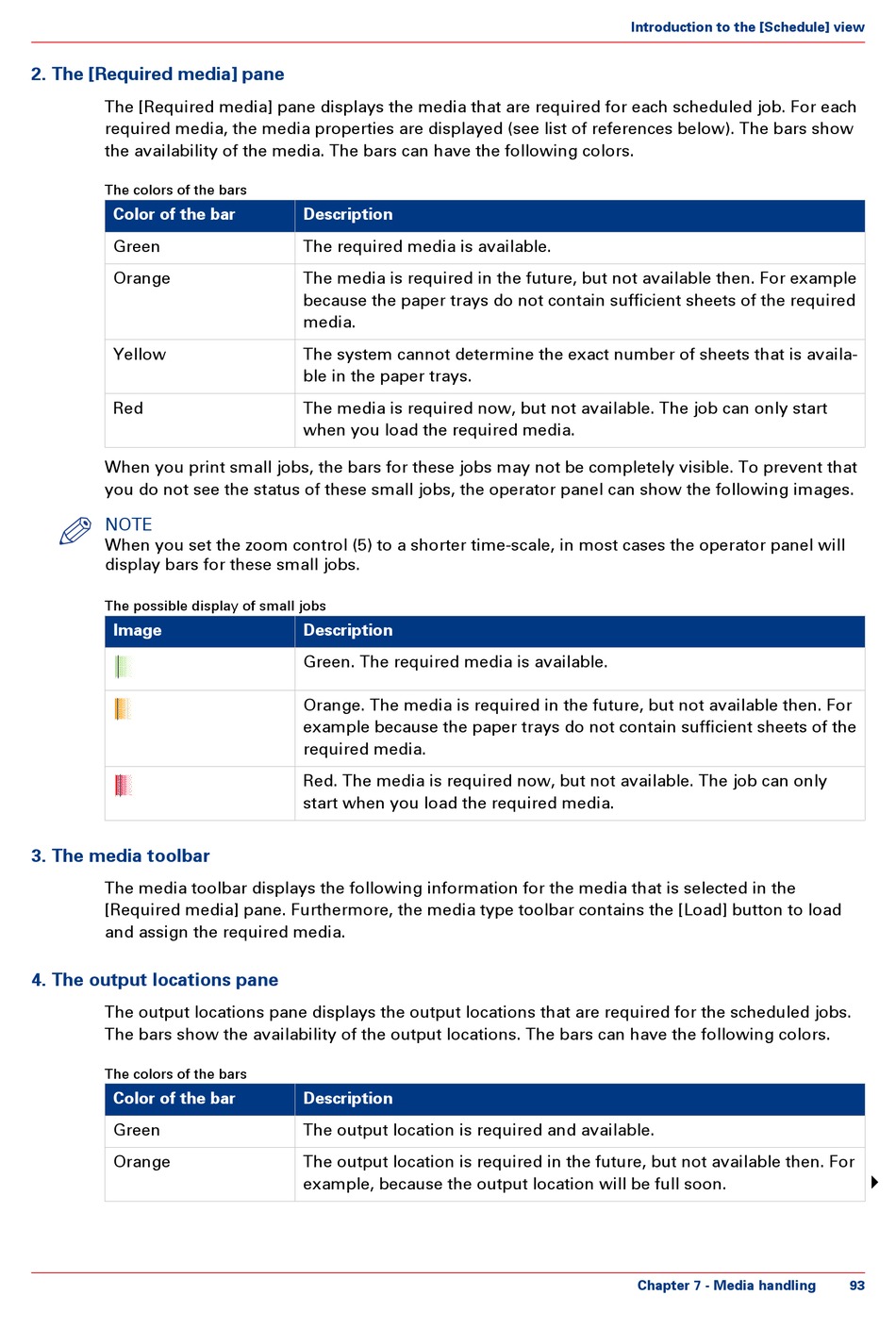

2. The [Required media] pane
The [Required media] pane displays the media that are required for each scheduled job. For each
required media, the media properties are displayed (see list of references below). The bars show
the availability of the media. The bars can have the following colors.
The colors of the bars
Color of the bar
Green
Orange
Yellow
Red
When you print small jobs, the bars for these jobs may not be completely visible. To prevent that
you do not see the status of these small jobs, the operator panel can show the following images.
NOTE
When you set the zoom control (5) to a shorter time-scale, in most cases the operator panel will
display bars for these small jobs.
The possible display of small jobs
3. The media toolbar
The media toolbar displays the following information for the media that is selected in the
[Required media] pane. Furthermore, the media type toolbar contains the [Load] button to load
and assign the required media.
4. The output locations pane
The output locations pane displays the output locations that are required for the scheduled jobs.
The bars show the availability of the output locations. The bars can have the following colors.
The colors of the bars
Color of the bar
Green
Orange
Description
The required media is available.
The media is required in the future, but not available then. For example
because the paper trays do not contain sufficient sheets of the required
media.
The system cannot determine the exact number of sheets that is availa-
ble in the paper trays.
The media is required now, but not available. The job can only start
when you load the required media.
Description
Green. The required media is available.
Orange. The media is required in the future, but not available then. For
example because the paper trays do not contain sufficient sheets of the
required media.
Red. The media is required now, but not available. The job can only
start when you load the required media.
Description
The output location is required and available.
The output location is required in the future, but not available then. For
example, because the output location will be full soon.
