The automatic document feeder - ADF (optional)
The automatic document feeder - ADF (optional)
Introduction
This section describes the part of the Automatic Document Feeder (ADF).
The automatic document feeder (ADF)
1
2
3
4
5
6
7
26

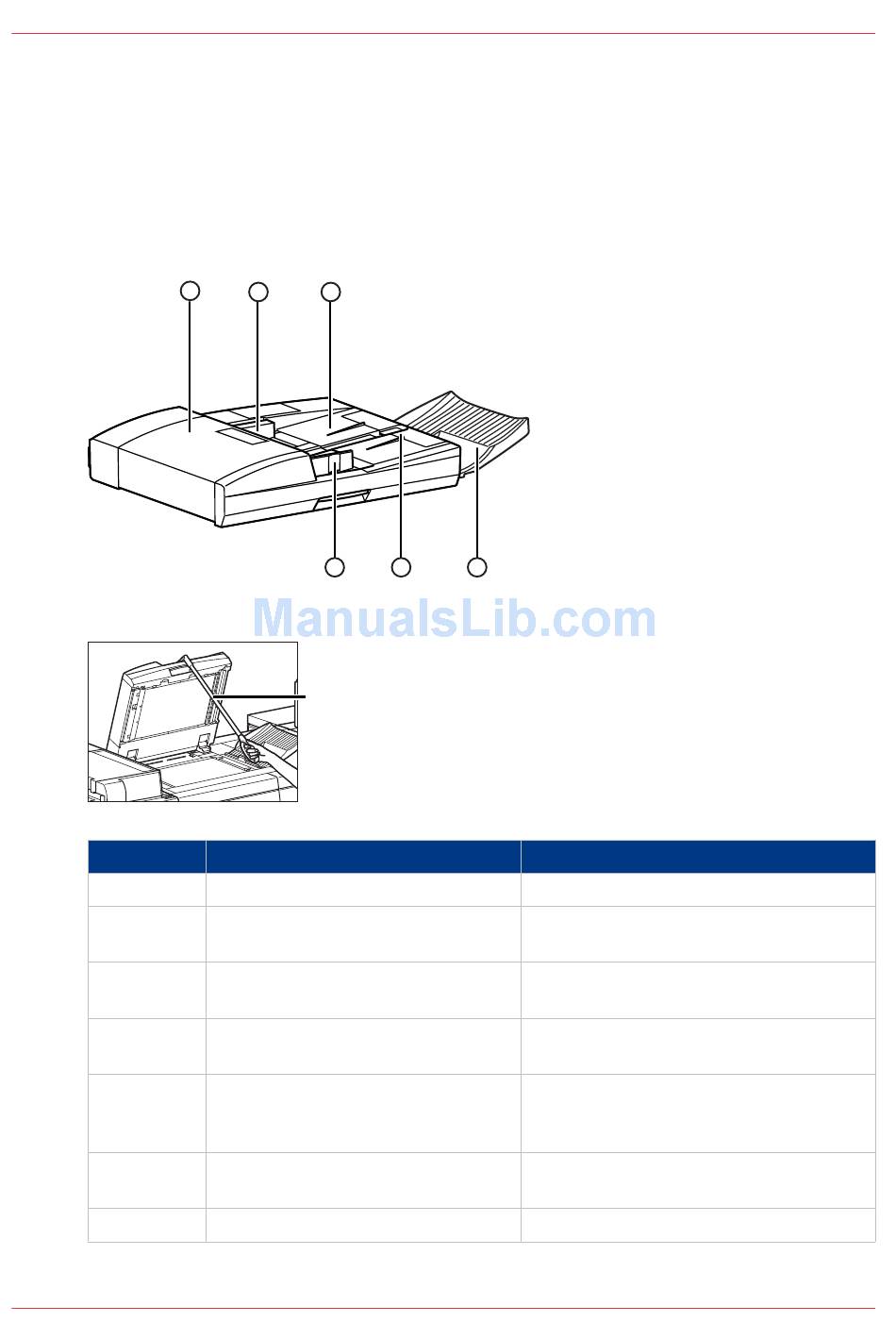

Chapter 2 - Main parts
1
2
3
6
(7)
Component
Feeder cover
Original set indicator
Original supply tray
Original output tray
SADF tray
Slide guides
ADF Access Handle-A1
5
4
Function
Open this cover to clear a paper jam.
Lights when originals are placed in the
original supply tray.
Place originals face up here for automatic
document feeding.
Receives scanned originals in the order
that they are fed.
Single Automatic Document Feeder Tray.
To feed heavy or lightweight originals
one by one, face down.
Adjust the slide guides to match the width
of the original.
Helps to close the ADF.
