Internal view: the fusing unit (Fixing Station)
5
4
3

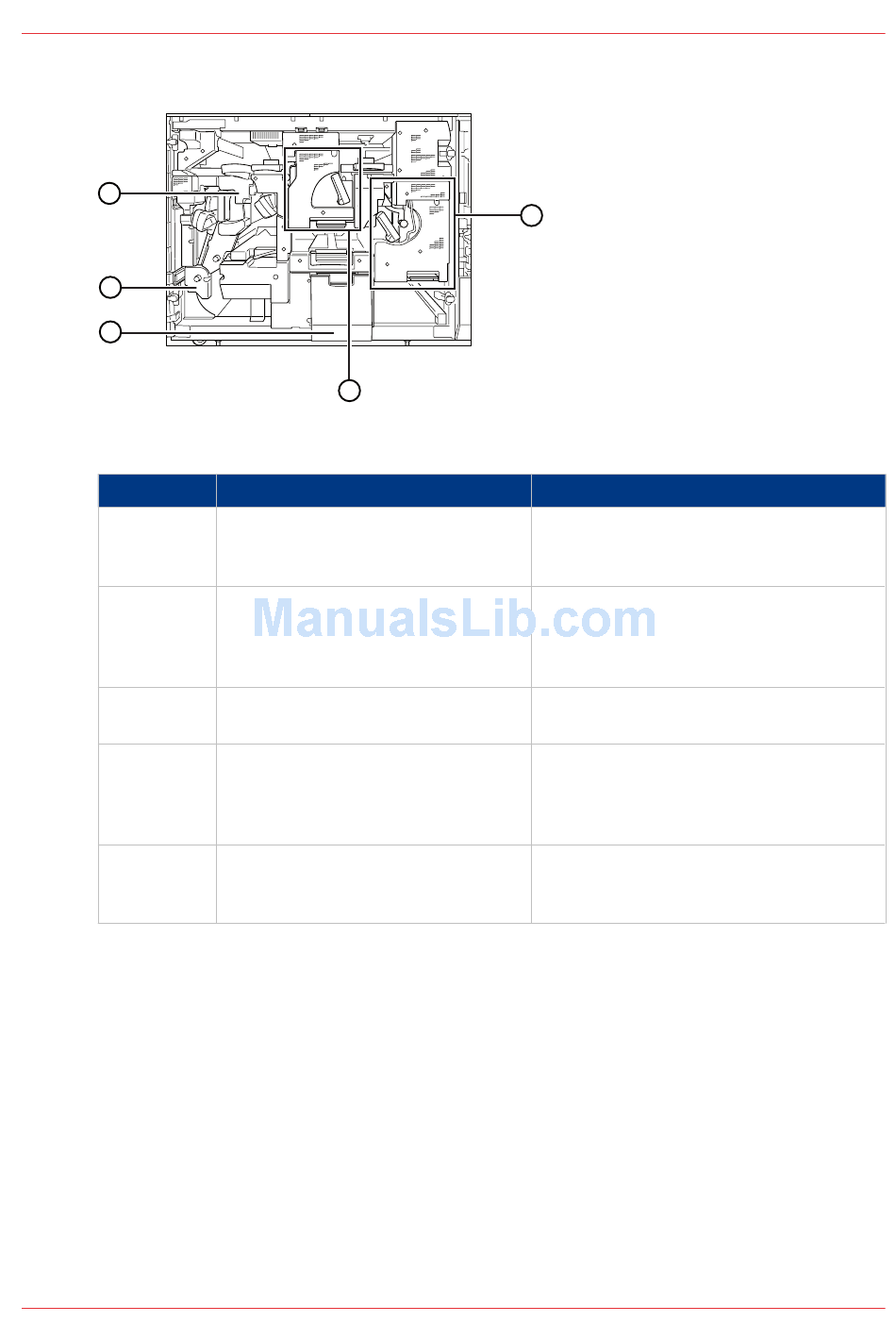

[5] The location of the main parts of the fusing unit (Fixing Station
The function of the main parts of the fusing unit (Fixing Station)
1
2
3
4
5
2
Component
Primary fixing assembly
Secondary fixing assembly
Waste toner container tray
Reverse unit
Decurler unit
1
Function
Fixes toner that has transferred to paper.
Pull out the primary Fixing Station to
clear a paper jam inside the assembly
Fixes toner securely for some paper
types. Pull out the secondary Fixing Sta-
tion to clear a paper jam inside the as-
sembly.
Pull out this tray to replace waste toner
container.
Reverses paper and returns it to the Mark-
ing Engine for two-sided printing. Pull out
the delivery/reverse unit to clear a paper
jam inside the unit.
Corrects the paper curl caused by heat.
Pull out this unit to clear a paper jam in-
side the unit.
Chapter 2 - Main parts
The main unit
21
