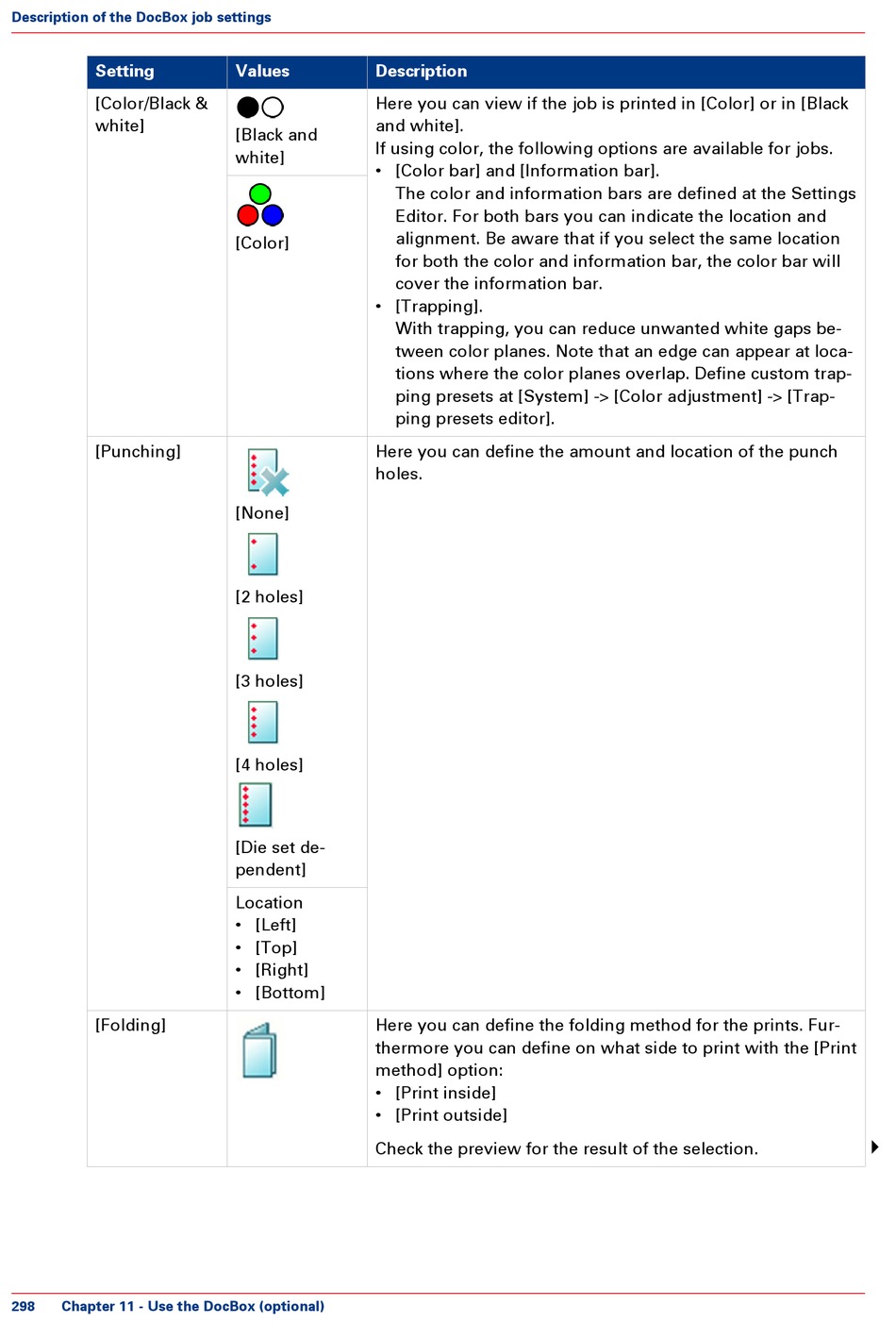

Description of the DocBox job settings
Setting
[Color/Black &
white]
[Punching]
[Folding]
298 Chapter 11 - Use the DocBox (optional)
Values Description
Here you can view if the job is printed in [Color] or in [Black
and white].
[Black and
If using color, the following options are available for jobs.
white]
• [Color bar] and [Information bar].
The color and information bars are defined at the Settings
Editor. For both bars you can indicate the location and
alignment. Be aware that if you select the same location
[Color]
for both the color and information bar, the color bar will
cover the information bar.
• [Trapping].
With trapping, you can reduce unwanted white gaps be-
tween color planes. Note that an edge can appear at loca-
tions where the color planes overlap. Define custom trap-
ping presets at [System] -> [Color adjustment] -> [Trap-
ping presets editor].
Here you can define the amount and location of the punch
holes.
[None]
[2 holes]
[3 holes]
[4 holes]
[Die set de-
pendent]
Location
• [Left]
• [Top]
• [Right]
• [Bottom]
Here you can define the folding method for the prints. Fur-
thermore you can define on what side to print with the [Print
method] option:
• [Print inside]
• [Print outside]
Check the preview for the result of the selection.
