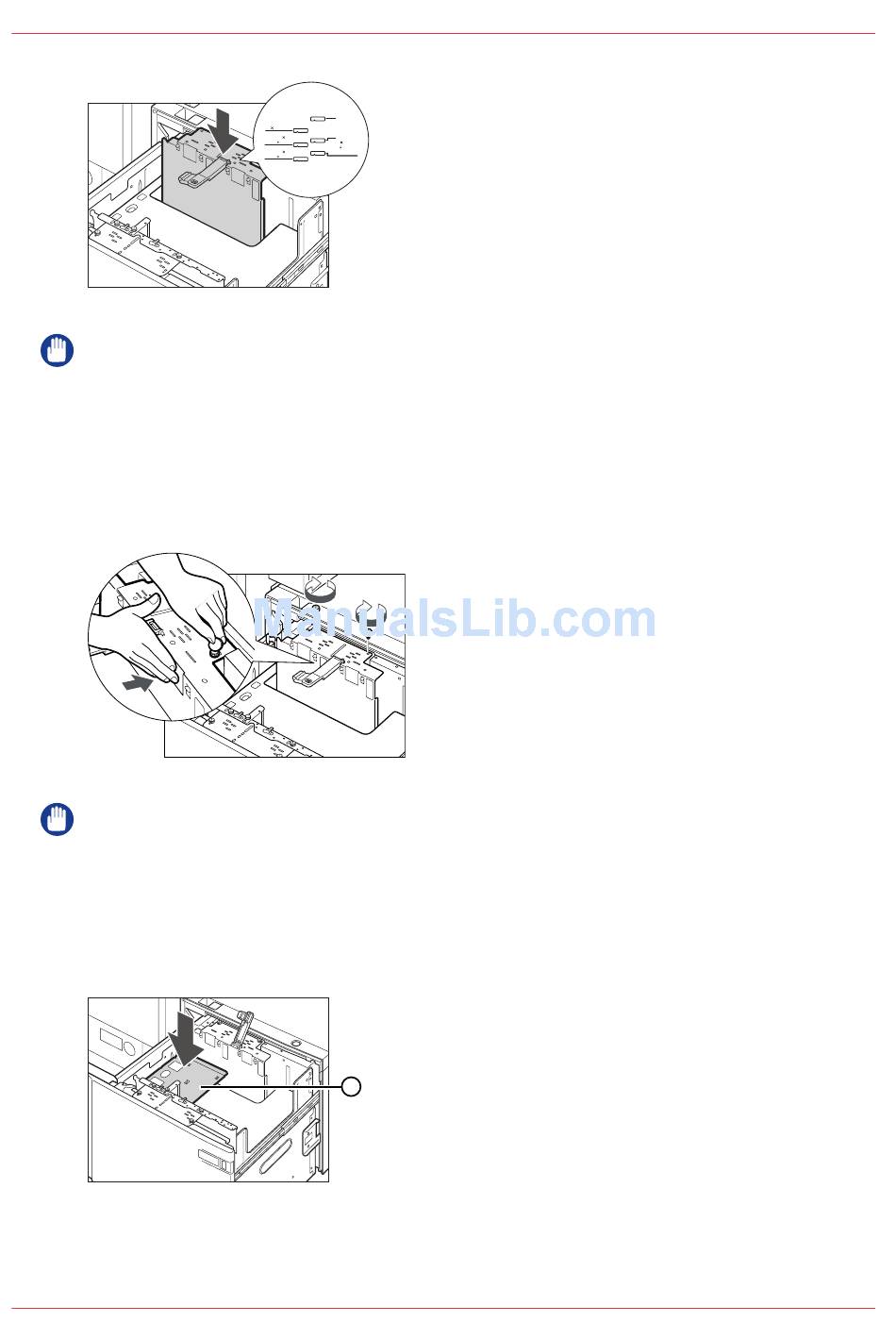

Adjust the media size for the bulk media module (optional)
IMPORTANT
• Make sure to align the size change plate properly with the marks for the desired paper size.
There are two marks for paper size at the top of the paper tray. Align the size change plate
with the desired marks.
• Make sure that the size change plate is properly aligned with the marks for the desired paper
size. If the size change plate is not properly aligned, the paper tray may become damaged.
14.
Fix the inner size change plate with the two blue screws using a coin or something similar, while
slightly holding its center front portion, and pressing it away from you.
IMPORTANT
If you fasten the blue screw without pressing the inner size change plate away from you, the
plate may be fixed at an angle. If you use the paper tray with a tilted inner size change plate,
paper may be fed as slanted, poor print quality may result, and paper jams may occur.
Therefore, make sure to fasten the blue screw while pressing the inner size change plate away
from you.
15.
Place the paper size sheet that matches the new paper size into the paper tray.
When not using the deck base plate, move the paper tray away from the main unit and hang the
deck base plate on the hook that is on the left side of the paper tray.
126
Chapter 7 - Media handling
B4
B5
11 17/LTR
A3
A4
12 18
305
457
12
5
/
17
11
/
mm
mm
8
16
320
450
mm
mm
13 19
(SRA3)
330
483
mm
mm
1
