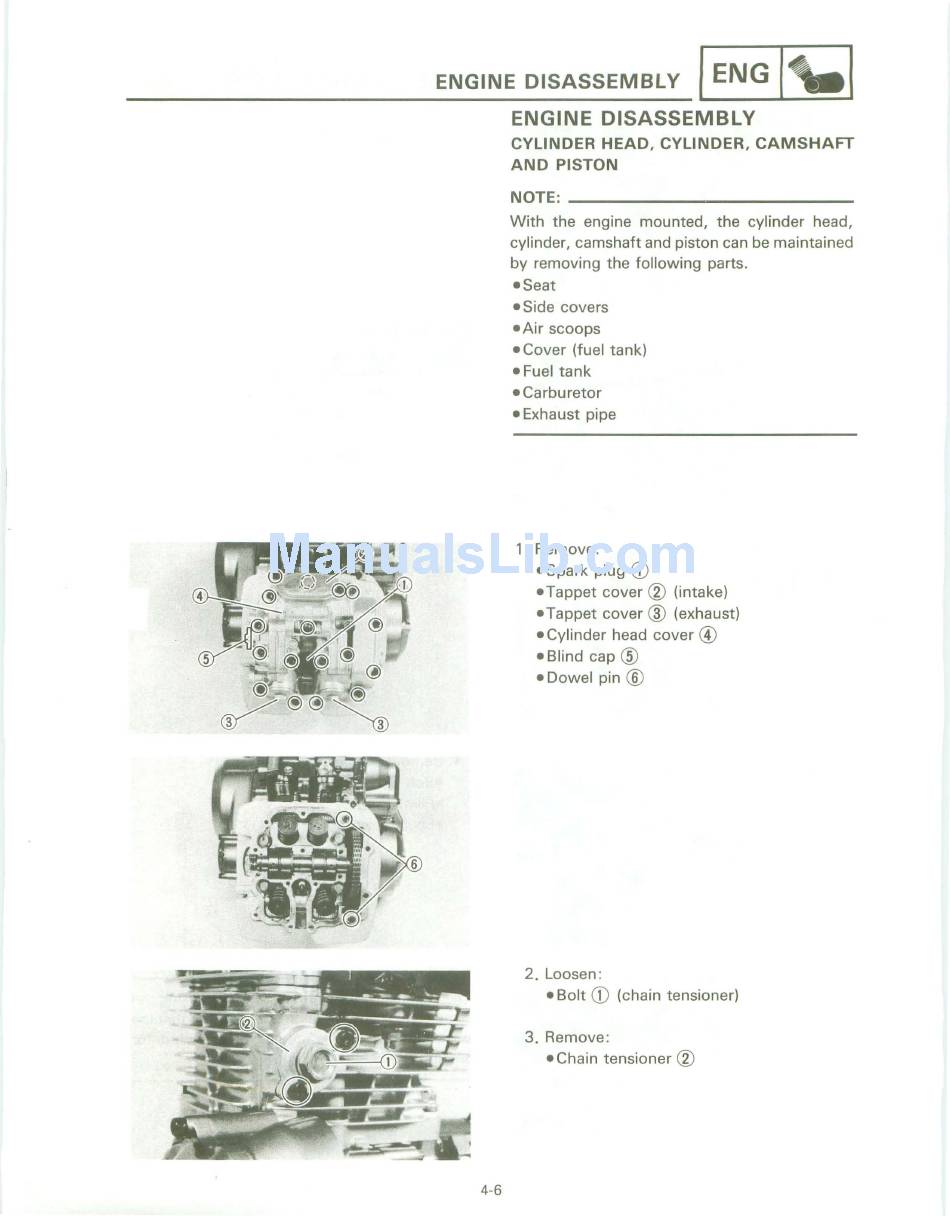

ENGINE DISASSEMBLY
1
ENG
1"-1
ENGINE DISASSEMBLY
4-6
CYLINDER HEAD, CYLINDER, CAMSHAFT
AND PISTON
NOTE: ________________________ __
With the engine mounted, the cylinder head,
cylinder, camshaft and piston can be maintained
by removing the following parts.
eSeat
e Side covers
eAir scoops
e Cover (fuel tank)
e Fuel tank
e Carburetor
e Exhaust pipe
1. Remove:
e Spark plug
CD
eTappet cover
®
(intake)
eTappet cover
®
(exhaust)
e Cylinder head cover
@
eBlind cap
@
eDowel pin
®
2. Loosen:
e Bolt
CD
(chain tensioner)
3. Remove:
e Chain tensioner
®
