Chapter 9

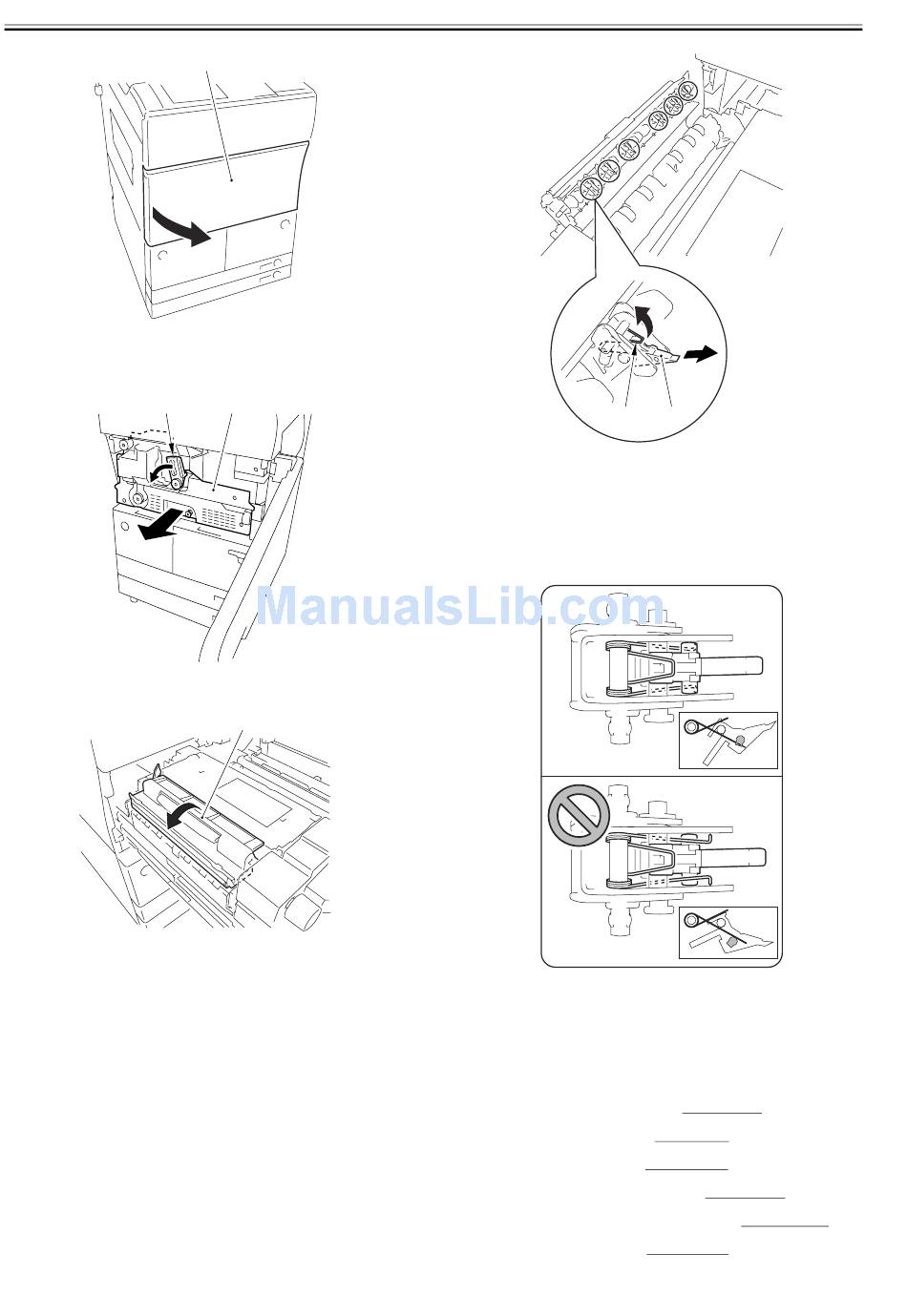

2) Turn the fixing/feeding unit releasing lever [1] counterclockwise to un-
lock. Hold the lever [1] to slide out the fixing/feeding unit [2] forward.
(Note that the duplexing feed unit will also be slid out.)
[1]
3) Open the delivery unit cover [1].
4) While lifting the spring [1], remove the upper separation claw [2].
9-38
[1]
F-9-128
[2]
F-9-129
[1]
F-9-130
[1]
9.5.23.2 Points to Note When Mounting the Upper
Separation Claw
iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
Pay attention to the relative positions between the upper separation claw and
spring when mounting the upper separation claw.
9.5.24 Lower Separation Claw
9.5.24.1 Before Removing the Lower Separation Claw
(Unit)
iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Detach the duplexing feed front cover. (page 10-14)Reference[Remov-
ing the Duplexing Feed Front Cover]
2) Slide out the fixing/feeding unit. (page 9-19)Reference[Removing the
Fixing/Feeding unit]
3) Detach the fixing front cover. (page 10-16)Reference[Removing the
Fixing Front Cover]
4) Detach the fixing/feeding unit front cover. (page 10-15)Reference[Re-
moving the Fixing/Feeding Unit Front Cover]
5) Detach the fixing/feeding unit middle cover. (page
ence[Removing the Fixing/Feeding Unit Middle Cover]
6) Detach the fixing upper cover. (page 10-15)Reference[Removing the
[2]
F-9-131
F-9-132
10-15)Refer-
