Chapter 8
[1]

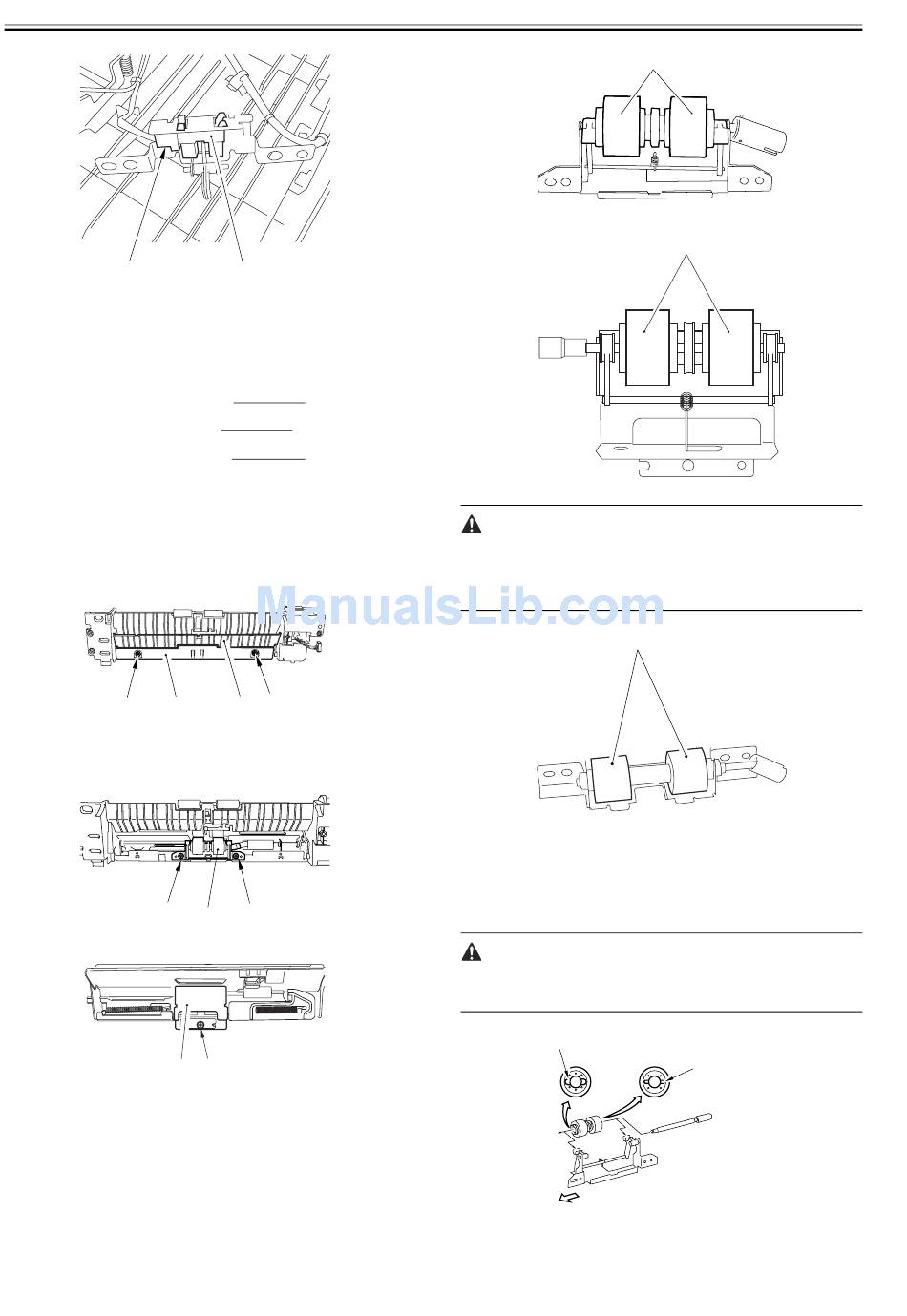

8.11.38 Separation Roller

8.11.38.1 Before Removing the Separation Roller

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Remove the right deck pickup assembly. (page 8-35)Reference[Remov-
ing the Right Deck Pickup Assembly]
2) Remove the cassette pickup assembly. (page 8-31)Reference[Removing
the Cassette 3/4 Pickup Assembly]
3) Remove the left deck pickup assembly. (page 8-35)Reference[Remov-
ing the Left Deck Pickup Assembly]

8.11.38.2 Removing the Separation Roller

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Remove the open/close guide [3].
- 2 mounting screws [1]
- 1 feeding guide plate [2]
(Skip this step for the left deck pickup assembly)
[2]
[1]
2) Remove the separation roller assembly [2] from the joint.
- 2 mounting screws [1]
(For the left deck, remove one screw [3])
cassette 3/4, right deck pickup assembly
[1]
left deck pickup assembly
[2]
3) Remove the separation roller from the separation roller [1] shaft support
mount.
8-50
[2]
F-8-155
[3] [1]
F-8-156
[2] [1]
F-8-157
[3]
F-8-158
cassette 3/4, right deck pickup assembly
left deck pickup assembly
0015-5246
0015-5248
The urethane sponge used for this part is pink at the beginning, and changes
yellow over time (accelerated if exposed to light; it may appear to change or-
ange before turning pink). This is the common characteristic of urethane
sponge, and does not indicate physical deterioration (performance). In addi-
tion, notes that the part is not classified by color.
8.11.38.3 Points to Note When Mounting the Separation
Roller
iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
When replacing the separation roller, be sure it is oriented as follows.
Mounting the separation roller in a wrong orientation may lead to interfer-
ence against the crimping washer. Make sure it is mounted in a correct ori-
entation.
Cassette 1/2, Right deck pickup assembly
Wider groove
[1]
F-8-159
[1]
F-8-160
urethane sponge
F-8-161
Narrower groove
(rear of machine)
(front of machine)
F-8-162
0016-0020
