Canon iR5055 Series Service Manual page 165

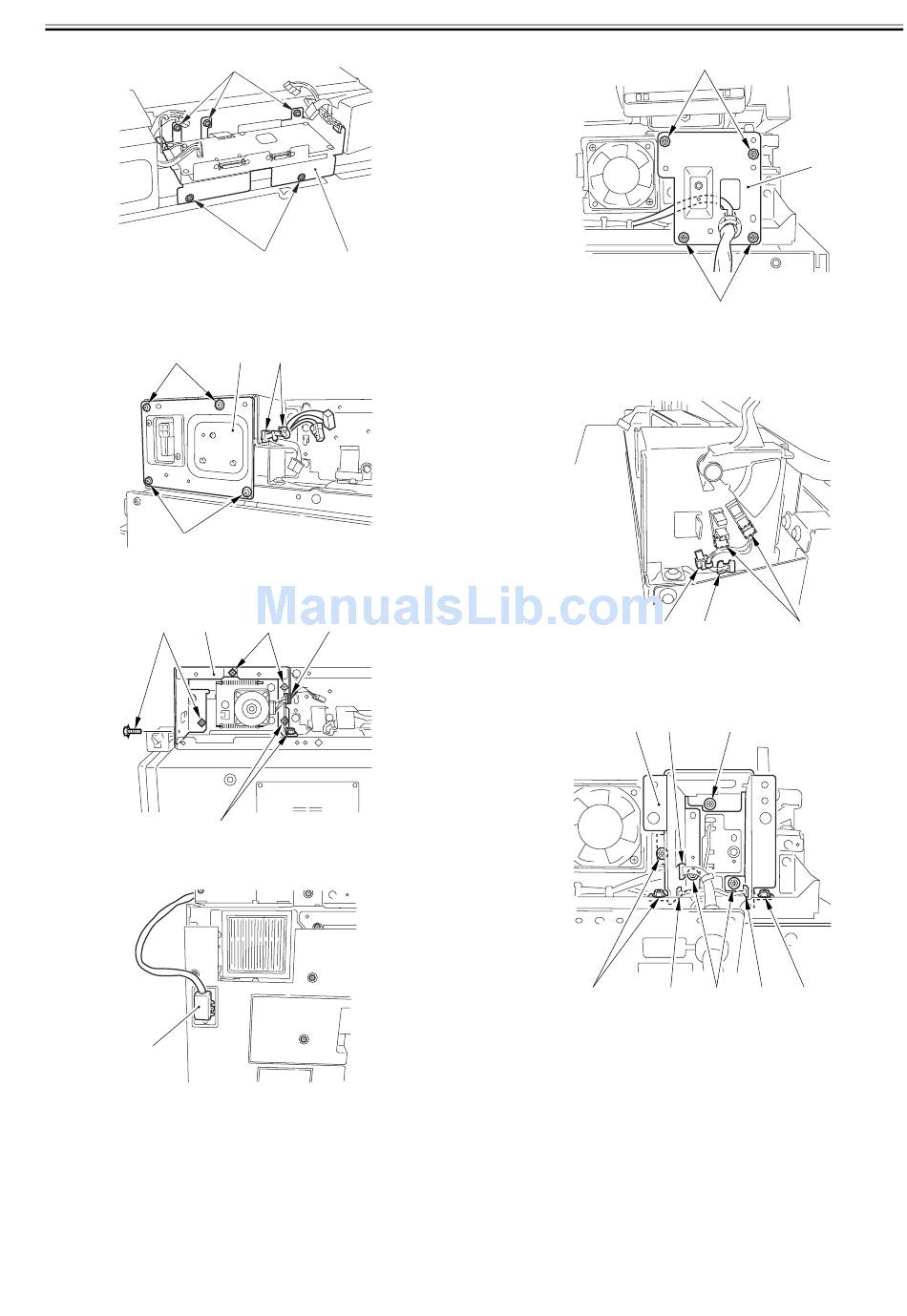

8) Open the 2 wire saddles [1].
9) Detach the motor cover [3] together with the harness.
- Screw [2] 4pc.
[2]
[2]
10) Free the harness from the wire saddle [1], and detach the motor frame [3].
- 6 Screw [2]
[2] [3]
[2]
11) Disconnect the connectors [1] of the reader unit communication cable.
[1]
12) Shift the reinforcing plate [2] to the front.
- 4 Screw [1]
[3]
[3] [4]
F-5-92
[3] [1]
F-5-93
[2] [1]
F-5-94
F-5-95
13) Free the harness from the wire saddle [3].
- 2 Connector [1]
- 1 Snap band [2]
[2]
14) Free the harness from the 3 wire saddles [1], and detach the ADF open/
close sensor base [3].
- 6 Screw [2]
[3] [1]
[2] [1]
15) Detach the reader upper frame [2].
- 24 Screw [1]
Chapter 5
[1]
[2]
[1]
F-5-96
[3] [1]
F-5-97
[2]
[2] [1] [2]
F-5-98
5-27
